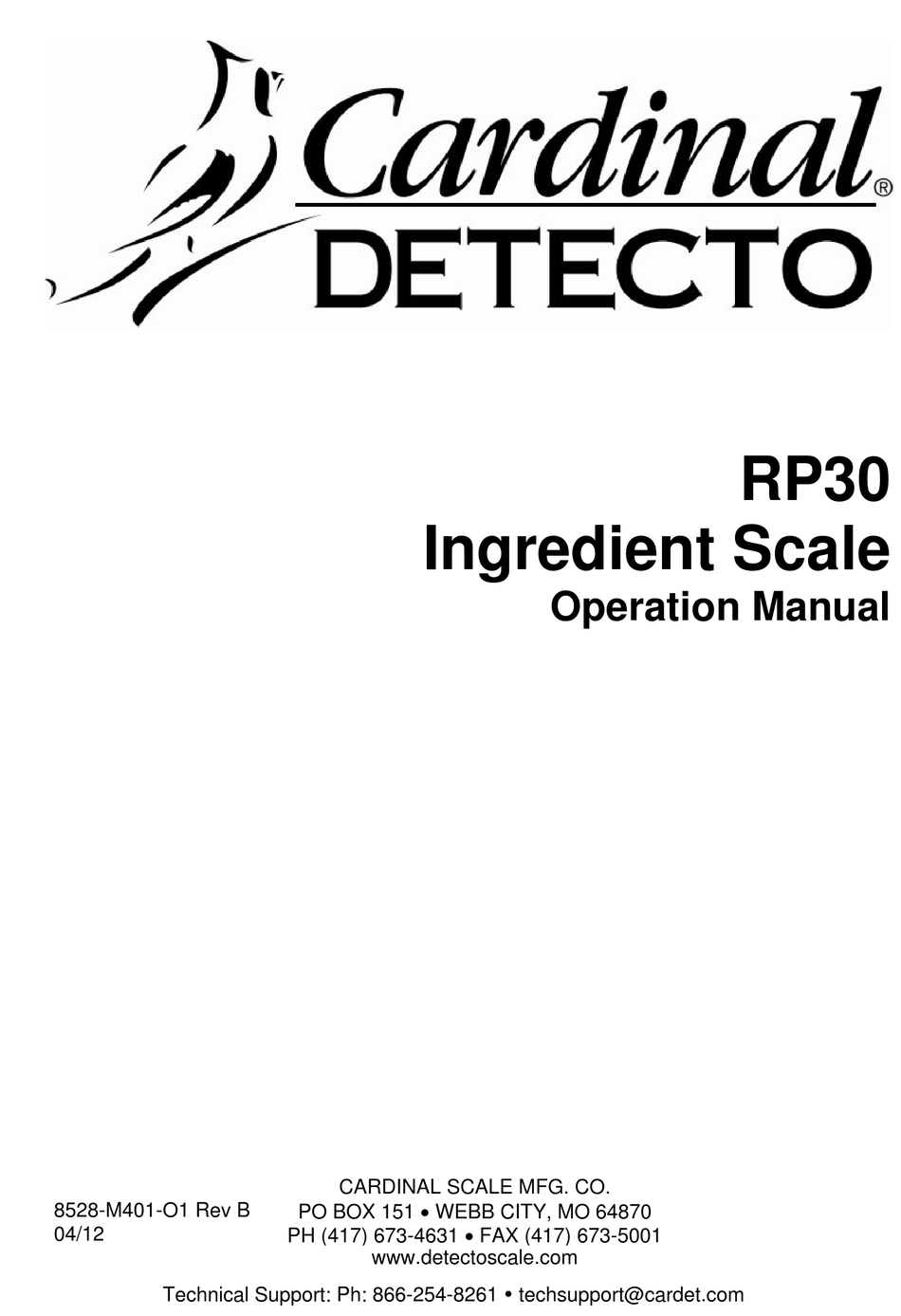

- Page 1 RP30 Ingredient Scale Operation Manual CARDINAL SCALE MFG. CO. PO BOX 151 WEBB CITY, MO 64870 8528-M401-O1 Rev B PH (417) 673-4631 FAX (417) 673-5001 04/12 www.detectoscale.com Technical Support: Ph: 866-254-8261 techsupport@cardet.com...
-
Page 3: Table Of Contents
INTRODUCTION TABLE OF CONTENTS The Detecto RP30 is a 30lb/15kg capacity UNPACKING AND ASSEMBLY ..1 ingredient scale equipped with a rotating tray Unpacking ..... 1 to allow even distribution of ingredients. -
Page 5: Unpacking And Assembly
2. Set the scale on a stable, vibration-free level surface away from direct sunlight and any rapidly moving air source (heating/cooling vents, fans, etc.). This will prevent sudden temperature changes and air currents that may result in unstable weight readings. 8528-M401-O1 Rev B RP30 Operation... -
Page 6: Quick Operation
All four feet must Not Level Level touch the surface to make sure the scale does not rock. 8528-M401-O1 Rev B RP30 Operation... -
Page 7: Operator Display
This annunciator is turned on when the displayed weight is Net weight (Gross weight less Tare weight). Accum This annunciator is turned on when there is accumulation in memory. Red light: The battery is charging. Green light: The battery is fully charged. 8528-M401-O1 Rev B RP30 Operation... -
Page 8: Operating Instructions
Display Backlight Auto Backlight The RP30 is equipped with a back lit display. When enabled, the display backlight will be turned on during weighing and will automatically turn off 5 seconds after the weight has been removed from the scale. Note that the Backlight uses additional energy and will shorten battery usage between charges. -
Page 9: Weight Display
To return to a zero tare, simply remove all material from the scale platform and press the TARE (>T<) key, which will reset the tare weight to zero and return the scale to a center-of-zero gross weight condition. 8528-M401-O1 Rev B RP30 Operation... -
Page 10: Accumulator
With the scale in the Weight mode, press the R key to display the content of the accumulator. With the total accumulator weight displayed, press the C/W key to clear (reset) the total accumulator. The display will return to the Weight mode. 8528-M401-O1 Rev B RP30 Operation... -
Page 11: Configuration
CONFIGURATION The RP30 has been pre-configured at the factory and should not require configuration for use in most applications. In the event that the factory settings do not meet the requirements of your application, the following describes the steps to configure the scale. - Page 12 ON/OFF switch. 600s = After 600 seconds (10 minutes) of no activity the scale will shut off and must be turned on using the ON/OFF switch. = The Auto Shut-Off function is disabled. 8528-M401-O1 Rev B RP30 Operation...
- Page 13 If YES (YES) was selected for the Save Setting parameter, the scale is ready for use with the new parameters. If no (no) was selected for the Save Setting parameter, the scale will continue to operate with the previous parameters. 8528-M401-O1 Rev B RP30 Operation...
-
Page 14: Error And Status Messages
Zero value is too low when starting ooooo Zero value is too high when starting ErrH Zero value is too high ErrL Zero value is too low erre prom Error errs Keypad Error 8528-M401-O1 Rev B RP30 Operation... -
Page 15: Rechargeable Battery
The capacity of the batteries will reduce over the years and therefore also the total operation time of the scale. This is not an error of the scale, but it is normal behavior or rechargeable batteries. 8528-M401-O1 Rev B RP30 Operation...
