Summary of Contents for SIMPLIHOME WyndenHall Brooklyn + Max 3AXCDRP-09-TK

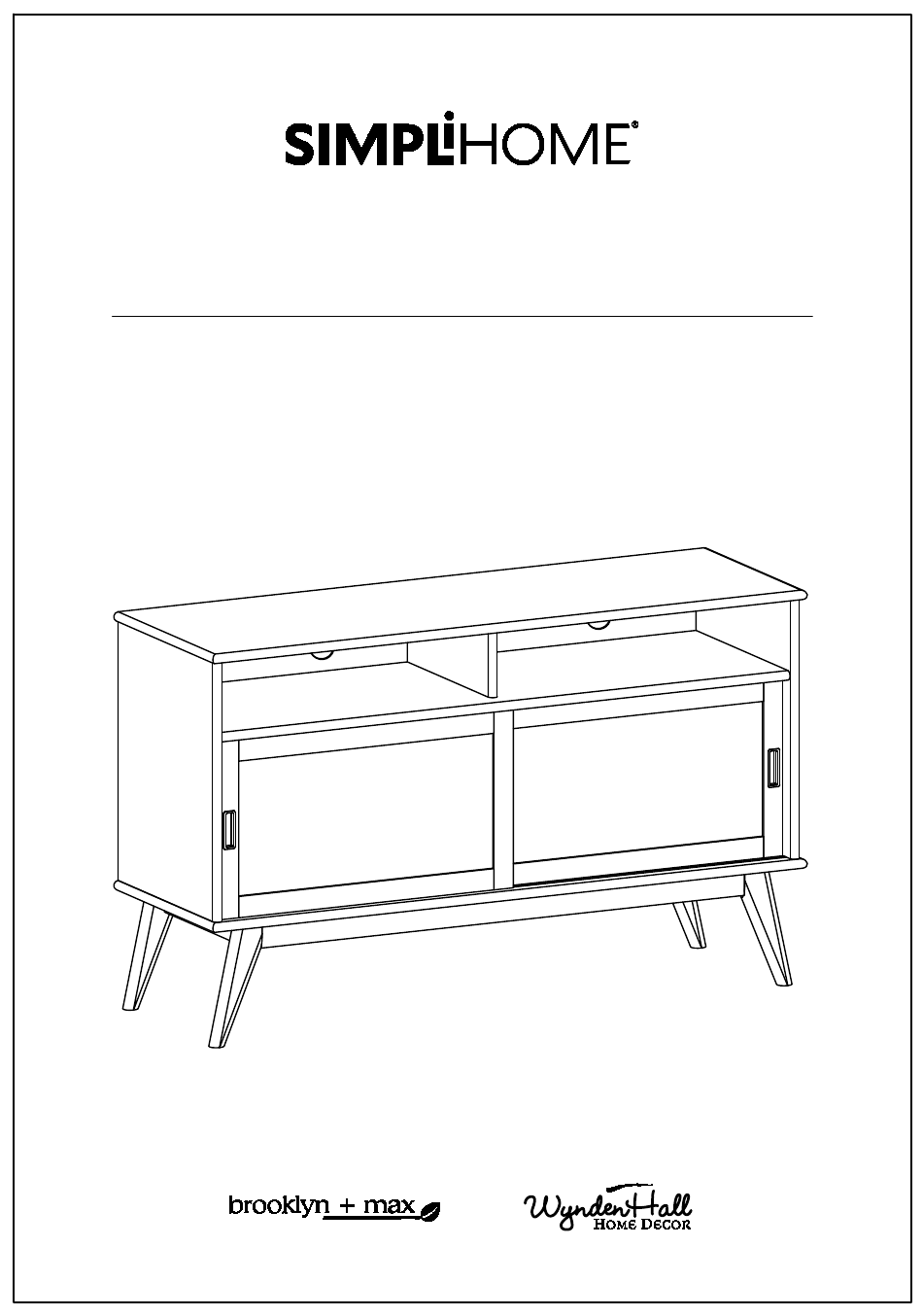

- Page 1 Draper / Tierney / Baxter Tall TV Media Stand Model # 3AXCDRP-09-TK...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 200 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. -
Page 8: Bottom Shelf
Pre-Assembly Information Model # 3AXCDRP-09-TK Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF CABINET SHELF LARGE DIVIDER QTY 1 QTY 1 QTY 2 SMALL DIVIDER LEFT DOOR RIGHT DOOR QTY 1 QTY 1 QTY 1... -
Page 9: Pre-Assembly Information
Pre-Assembly Information Model # 3AXCDRP-09-TK Part Description LEG (L&R Same) LEG (L&R Same) TOP SHELF QTY 2 QTY 2 QTY 1 Warning Label TOP BACK PANEL BOTTOM BACK PANEL QTY 1 QTY 1... - Page 10 Pre-Assembly Information Model # 3AXCDRP-09-TK Hardware Description ALLEN KEY SCREW ALLEN KEY M6 X 30mm QTY 1 QTY 24 PHILLIPS SCREW WOOD DOWEL ROUND HAED Ø8 X 30 mm SHELF SUPPORT M4 X 15mm QTY 6 QTY 12 QTY 22 Required - Flathead screwdriver Phillips screwdriver...
- Page 11 Components - Key Diagram Model # 3AXCDRP-09-TK...
- Page 12 Assembly Model # 3AXCDRP-09-TK Step 1 1. Attach Large Divider D to Bottom Shelf C using 3 Allen Key Screws 1 through guide holes . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. Step 2 1. Attach Top Shelf I to Large Divider D using 3 Allen Key Screws 1 through guide holes.
- Page 13 Assembly Model # 3AXCDRP-09-TK Step 3 1. Attach 2 Sides AL , AR to Top Shelf I and Bottom Shelf C using 12 Allen Key Screws 1 through guide holes (6 Screws on each Side). 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. Step 4 1.
- Page 14 Assembly Model # 3AXCDRP-09-TK Step 5 1. Insert 3 Dowels 6 into guide holes on bottom of Small Divider F . 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
- Page 15 Assembly Model # 3AXCDRP-09-TK Step 7 Warning Label 1. Use Phillips Screws Round Head 5 to attach Back Panels J1 , J2 through guide holes from Back Panels to back of TV Stand. 2. Use Phillips screwdriver to tighten screws. Do not over-tighten.
- Page 16 Assembly Model # 3AXCDRP-09-TK Step 8 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Attach 4 Shelf Supports 4 underneath of each Cabinet Shelf E in desired location. 2. 2 Shelf Supports 4 must be attached on back top of each Cabinet Shelf E as a tipping restraint.
- Page 17 Assembly Model # 3AXCDRP-09-TK Step 9 Second Door First Door 1. Slide the wheels on bottom of each door to the slots on Bottom Shelf C . 2. Pull down the pins on top of each door then place the door to be parallel with the TV side post.
- Page 18 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 10 NOTE: The screwdriver is not...
- Page 19 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
