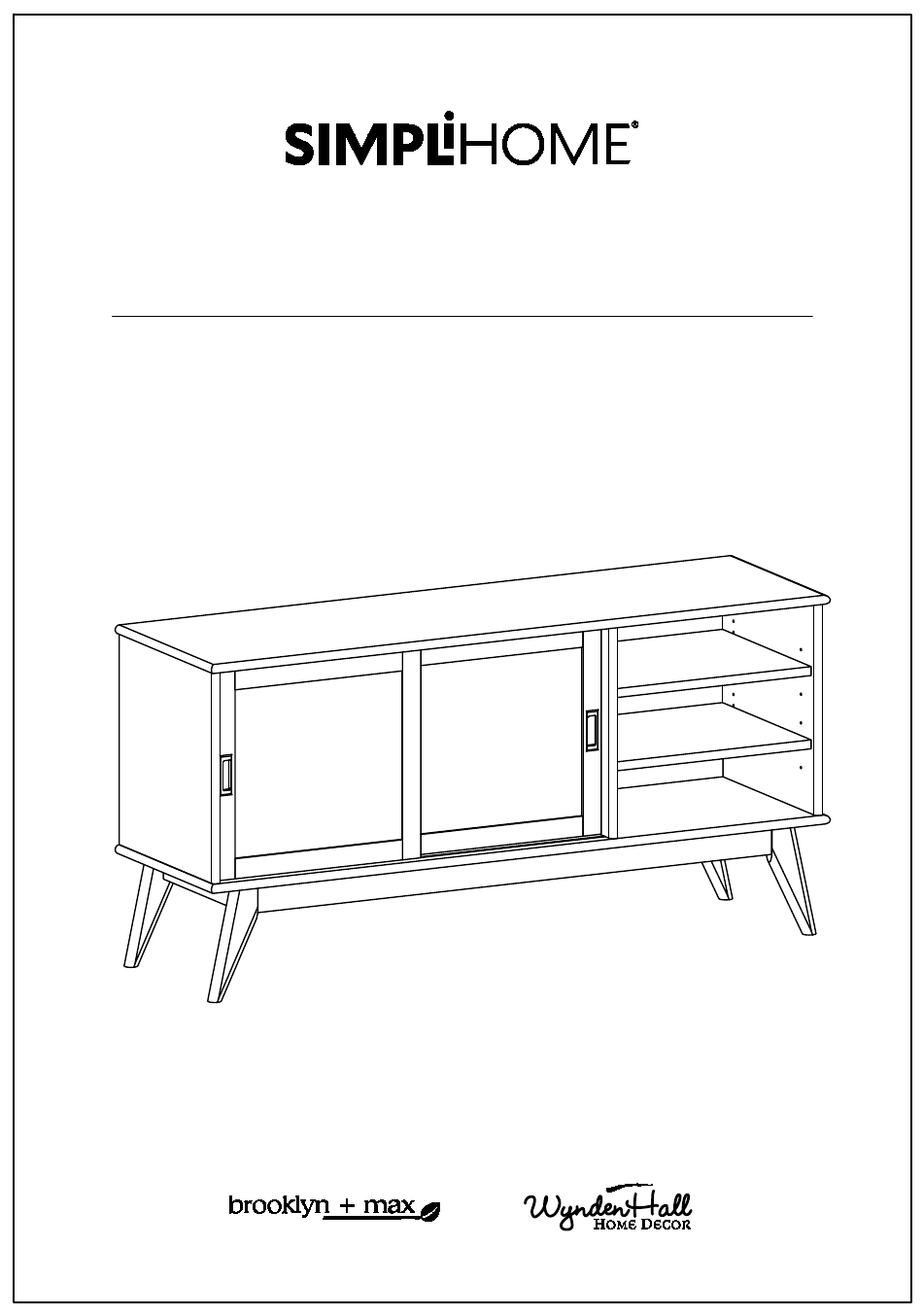

- Page 1 Draper / Tierney / Baxter Mid Century Medium TV Media Stand Model # 3AXCDRP-08-TK...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 220 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. -
Page 8: Bottom Shelf
Pre-Assembly Information Model # 3AXCDRP-08-TK Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 CABINET SHELF CABINET SHELF LEFT DOOR QTY 2 QTY 2 QTY 1... - Page 9 Pre-Assembly Information Model # 3AXCDRP-08-TK Part Description RIGHT DOOR LEG (L&R Same) LEG (L&R Same) QTY 1 QTY 2 QTY 2 Warning Label TOP BACK PANEL BOTTOM BACK PANEL JOINING STRIP QTY 1 QTY 1 QTY 1...
- Page 10 Pre-Assembly Information Model # 3AXCDRP-08-TK Hardware Description ALLEN KEY SCREW ALLEN KEY M6 X 30mm QTY 1 QTY 24 PHILLIPS SCREW SHELF SUPPORT ROUND HAED QTY 24 M4 X 15mm QTY 1 SET QTY 20 Required - Flathead screwdriver Phillips screwdriver Not Included...
- Page 11 Components - Key Diagram Model # 3AXCDRP-08-TK...
- Page 12 Assembly Model # 3AXCDRP-08-TK Step 1 1. Attach Sides A and Dividers D to Bottom Shelf C using 12 Allen Key Screws 1 through guide holes ( 3 screws on each Side and Divider ). 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. Step 2 1.
- Page 13 Assembly Model # 3AXCDRP-08-TK Step 3 1. Attach Top B to Sides A and Dividers D using 12 Allen Key Screws 1 through guide holes ( 3 screws on each Side and Divider ). 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 14 Assembly Model # 3AXCDRP-08-TK Step 4 Warning Label Warning Label 1. Attach the Top Back Panel I1 to back frame by using Phillips Screws 5 . Only 1st top row of screws ( 7 screws ) to be screwed in advance. 2.
- Page 15 Assembly Model # 3AXCDRP-08-TK Step 5 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3...
- Page 16 Assembly Model # 3AXCDRP-08-TK Step 6 Second Door First Door 1. Slide the wheels on bottom of each door to the slots on Bottom Shelf C . 2. Pull down the pins on top of each door then place the door to be parallel with the TV side post.
- Page 17 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 7 NOTE: The screwdriver is not...
- Page 18 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
