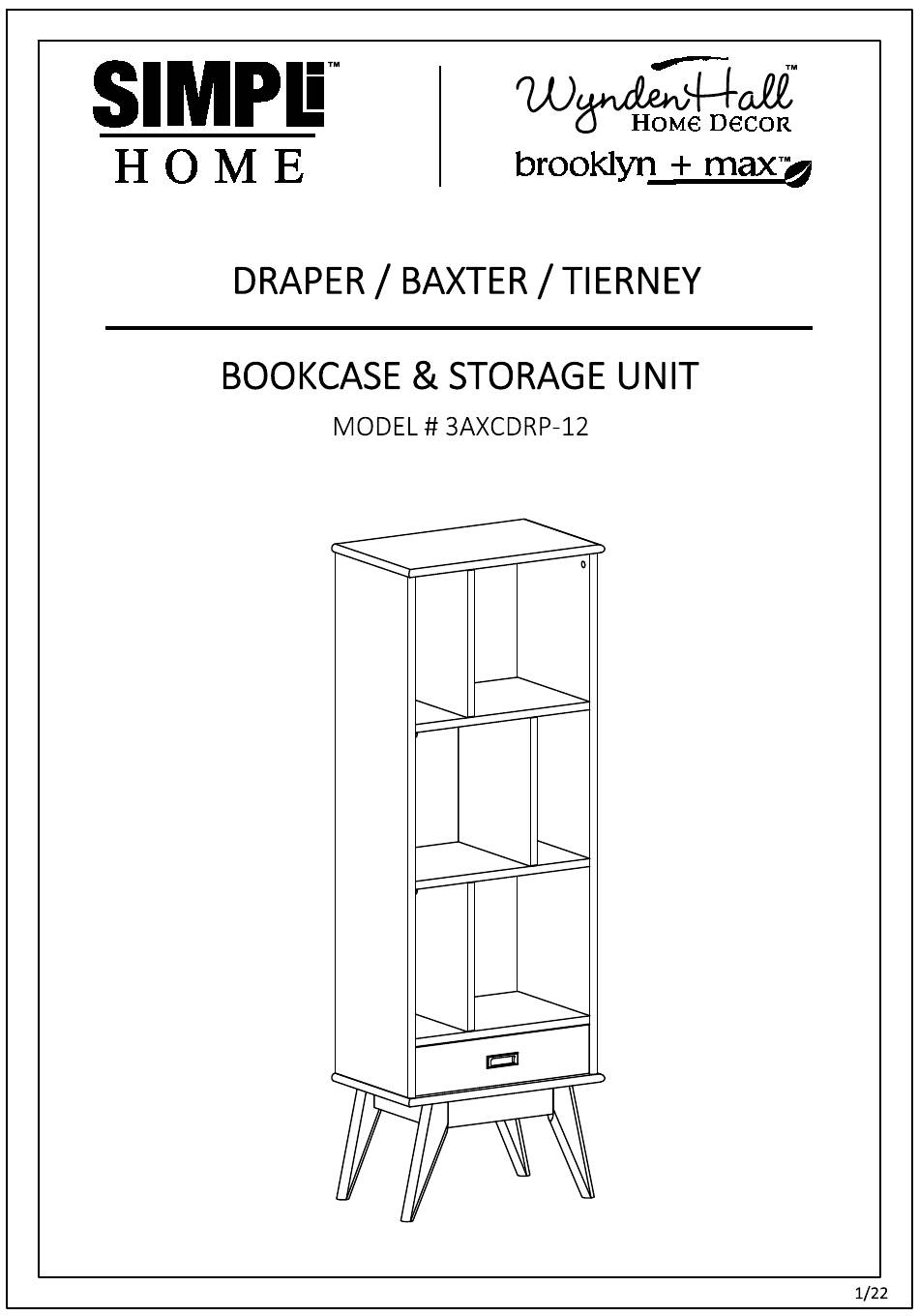

- Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US AT: simpli-home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER 2/22...
-
Page 5: Part Description
PART DESCRIPTION NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST) 5/22... -
Page 6: Hardware Description
HARDWARE DESCRIPTION PHILLIPS SCREW ROUND HEAD M4 X 15mm QTY 21 FURNITURE ANTI-TIPPING RESTRAINT QTY 1 SET 6/22... - Page 8 1. Attach four Cam Lock Pins 4 to back of Drawer Front I . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides J . 3. Insert two Cam Locks 4 into pre-drilledd holes on each Drawer Side J . 4.
- Page 9 1. Align Drawer Back K with Drawer Bottom L and press firmly into slot. 2. Attach Drawer Back K using two Allen Key Screws 1 through pre-drilled holes on each Drawer Side J . 3. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 14 1. Attach twelve Cam Lock Pins 4 to inside of Sides A ( six Cam Lock Pins on each Side). 2. Align Cam Lock Pins with pre-drilled holes and attach Cabinet Shelf F . 3. Insert six Cam Lock 4 into pre-drilled holes on each Cabinet Shelf F . 4.
- Page 15 1. Attach Bottom Shelf C to Sides A using six Allen Key Screws 1 (three Screws on each Side) . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 21 Thank you for purchasing a product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. In case of any malfunction of your product (failure, missing parts, etc.) please contact us at our toll free service line at 1-866-518-0120 ext.
