3.1.3 Concentration apps
A concentration app contains specific configurations for the measurement of a certain liquid
and, along with the measured sensor signals, is used as the basis for calculating the
concentration. Endress+Hauser provides a separate concentration app for every type of fluid.
The concentration app is a file with lmf format. A list of the available concentration apps is
provided in the Applicator .
If you require a concentration app that is not already listed in the Applicator, Endress+Hauser
requires a sample of the fluid to create the concentration app. Every transmitter can use a
maximum of 25 concentration apps.
Concentration apps are individually encoded to work only with the serial number of a specific
transmitter. The transmitter in service uses the serial number saved in the .lmf file to check
whether the concentration app has been specifically configured for use with this transmitter.
If this is not the case, it is not possible to add the concentration app.
The data sheet provided with the concentration app contains information about the fluid, the
permitted measuring ranges and the accuracy of the concentration measurement.
4 Installation
4.1

Mounting requirements

4.1.1 Mounting position
Mounting location

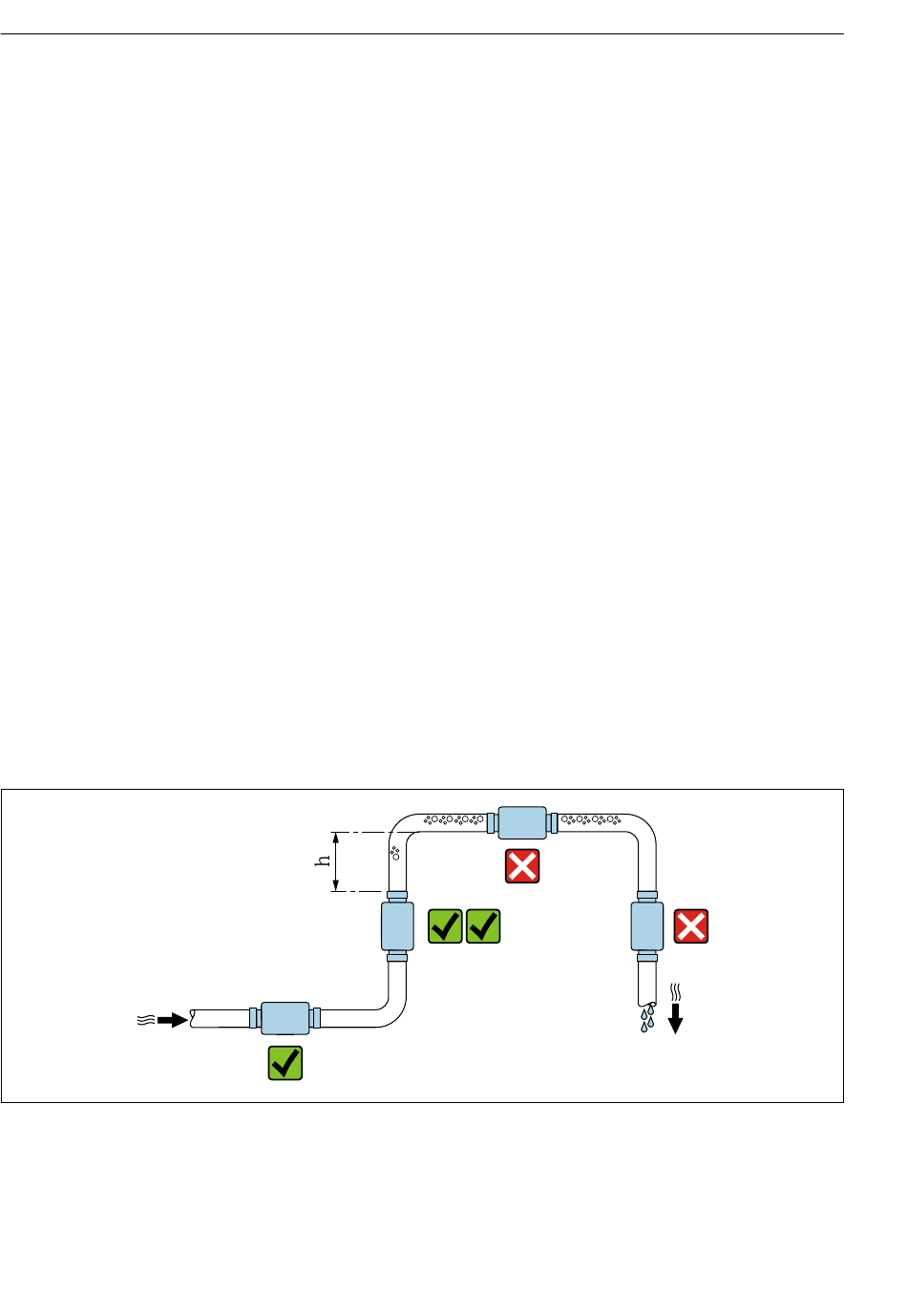

 3 Mounting location
Ideally, the sensor should be installed in an ascending pipe, while ensuring a sufficient
distance is kept to the next pipe elbow: h ≥ 5 × DN.
