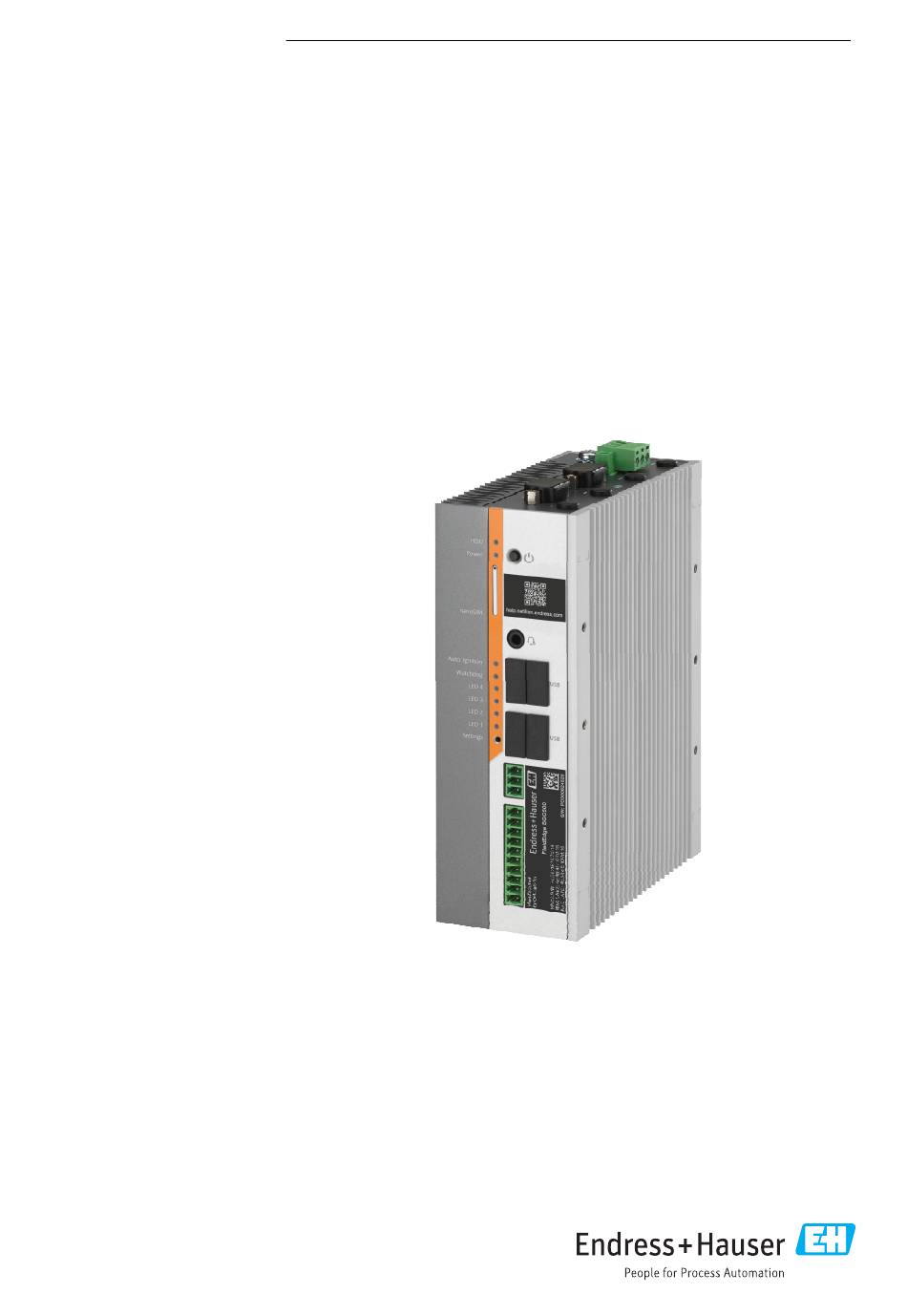

- Page 1 Products Solutions Services BA02035S/04/EN/03.21-00 71551532 2021-10-15 Operating Instructions FieldEdge SGC500 Industrial Edge Device to connect field devices to the Netilion Cloud...
- Page 2 Revision history FieldEdge SGC500 Revision history Product version Operating Instructions Changes Comments 0.01.00 BA02035S/04/EN/01.20 – Initial version 0.02.00 BA02035S/04/EN/02.20 EtherNet/IP New chapters and changes 0.02.00 BA02035S/04/EN/03.21 Section 9: Changes Endress+Hauser...
-
Page 3: Table Of Contents
Designated use ..... . 6 10.1 Using the FieldEdge SGC500 in Workplace safety ....6 Netilion . -
Page 4: About This Document
About this document FieldEdge SGC500 About this document Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal. -
Page 5: Documentation
FieldEdge SGC500 About this document Symbol Meaning Notice or individual step to be observed. … Series of steps. Result of a step. Help in the event of a problem. Visual inspection. 1.2.3 Symbols in graphics Symbol Meaning Symbol Meaning 1, 2, 3,... -
Page 6: Basic Safety Instructions
‣ Follow the instructions in this manual. Designated use The FieldEdge SGC500 must be installed, connected and configured in accordance with the instructions in this manual. The FieldEdge SGC500 is not approved for hazardous areas. Workplace safety For work on and with the device: ‣... -
Page 7: It Security
Product description Function The FieldEdge SGC500 enables the connection of field devices in an industrial plant to the Netilion Cloud. Data transmission is via the Internet connection in the plant. The information required for Netilion Services is regularly read out of the field devices and saved to the Netilion Cloud. -
Page 8: Licensing Model
Subscription fees are charged on an annual basis. After terminating the subscription, the SGC500 must be destroyed safely or returned to Endress+Hauser. In the event of a hardware defect, Endress+Hauser will provide a replacement device if the device is found to have an irreparable defect. -
Page 9: System Design
Fieldbus communication Supported field gateways for conversion from fieldbus protocol to an IP protocol Ethernet communication FieldEdge SGC500, reads field device data and transmits it securely to the Netilion Cloud WAN Internet connection – https, plant-side connection Netilion Cloud https Internet connection... - Page 10 Product description FieldEdge SGC500 Supported fieldbus communication Connection to FieldEdge PROFIBUS EtherNet/IP Direct via industrial Ethernet connection FieldEdge Connection to the Netilion Cloud FieldEdge SGC500 Internet connection: WAN – https Endress+Hauser...
-
Page 11: Product Design

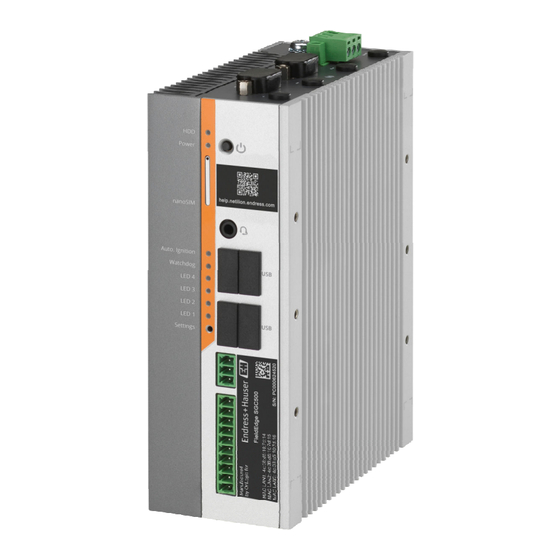

FieldEdge SGC500 Product description Product design 2 FieldEdge SGC500 User switch mode LEDs Watchdog Motor vehicle ignition (not used) SD card slot (not used) Power LED HDD hard drive LED ON switch Audio connection (not used) USB 3.0 (not used) -
Page 12: Incoming Acceptance And Product Identification
The system must not be put into operation if the contents are found to be damaged beforehand. Follow the instructions on https://netilion.endress.com/legal/terms-of-service. Return the SGC500 when requested to do so by Endress+Hauser. Use the original packaging where possible. The device is replaced following consultation with Endress+Hauser and must only be returned upon request. -
Page 13: Storage And Transport
FieldEdge SGC500 Installation 4.2.2 Manufacturer's address Hardware Software Made by OnLogic for Endress+Hauser Endress+Hauser Process Solutions AG OnLogic Christoph Merian-Ring 12 35 Thompson St, South CH-4153 Reinach Burlington, VT Switzerland 05403 www.endress.com United States Storage and transport Always use the original packaging when transporting the product. -
Page 14: Mounting The Device
Installation FieldEdge SGC500 Mounting the device Dimensions of the SGC500: 56 mm (2.20 in) ⋅ 154 mm (6.06 in) ⋅ 119 mm (4.69 in) 56 (2.20) 119 (4.69) 154 (6.06) 4 Dimensions of the SGC500, engineering unit: mm (in) Mounting on DIN rails Fix the DIN rail clip supplied on the SGC500. -
Page 15: Electrical Connection
Connecting the device 6.2.1 Connecting the supply voltage NOTICE Damage to device ‣ Do not open the housing of the FieldEdge SGC500. 1 2 3 5 Power supply at the SGC500, socket for 3-pin connector Supply voltage, negative pole Not used Supply voltage, positive pole A 3-pin connector for the supply voltage is included in the scope of supply. -
Page 16: Post-Connection Check
Operation options FieldEdge SGC500 Connect the positive pole of the supply voltage to terminal 3 (+). Connecting the supply voltage: → 16 6.2.2 Connecting the LAN ports Connecting the LAN ports: → 16 Post-connection check Is the device undamaged (visual inspection)? Are the cables undamaged (visual inspection)? ... - Page 17 FieldEdge SGC500 Commissioning Internet https://*.netilion.endress.com (port443) A0044505 6 Separate connections for Internet and field network LAN1 (WAN 1 – cloud) for connection to the Internet LAN3 (LAN2 – field) for connection to the fieldbus LAN2 not used System firewall The Ethernet cables are not included in the scope of delivery.
- Page 18 Commissioning FieldEdge SGC500 9.1.2 Common connection for Internet and field network • We recommend you use different networks for the Internet and field network. → 16 • If only one network is set up for the Internet and the field network, the LAN1 connection (WAN 1 –...
-
Page 19: Automatically Connecting The Sgc500 To The Netilion Cloud
If the LAN1 connection only is used, the EtherNet/IP connection is not supported. Automatically connecting the SGC500 to the Netilion Cloud Requirements Access to Endress+Hauser Netilion is established. Log in to Endress+Hauser Netilion https://netilion.endress.com/app/id/. In Netilion, use the navigation function to open the Edge Devices page. - Page 20 Commissioning FieldEdge SGC500 Netilion A0042272 Ethernet cable between notebook and LAN3 (LAN2 – field) Notebook with Web browser for the configuration Connect the notebook via an Ethernet cable to LAN3 (LAN2 – field) of the SGC500. Open a web browser.
-
Page 21: Connecting To The Field Network
Contact the IT administrator if no connection can be established from the SGC500 to Netilion. Connecting to the field network Requirements • Access to Endress+Hauser Netilion is established. • The SGC500 is visible in the Netilion Cloud. Log in to Endress+Hauser Netilion https://netilion.endress.com/app/id/. Endress+Hauser... -
Page 22: Connecting To The Field Gateway
Connecting to the field gateway This section is not applicable to EtherNet/IP. Requirements • Access to Endress+Hauser Netilion is established. • The SGC500 is connected to the Netilion Cloud. Log in to Endress+Hauser Netilion https://netilion.endress.com/app/id/. In Netilion, use the navigation function to open the Edge Devices page. -
Page 23: Connecting To The Ethernet/Ip
This section is not applicable to fieldbuses that are connected to the SGC500 via a field gateway. Requirements • Access to Endress+Hauser Netilion is established. • The SGC500 is connected to the Netilion Cloud. Log in to Endress+Hauser Netilion https://netilion.endress.com/app/id/. -
Page 24: About Netilion
10.2 About Netilion Netilion is Endress+Hauser' s IIoT ecosystem that allows smart and networked applications in the Industrial Internet of Things. Cutting-edge and secure Internet technologies enable these digital services, combined with the technologies of industrial production processes. All our Netilion Services are easy and straightforward to put into operation. -
Page 25: Diagnostics And Troubleshooting
Software updates are an integral part of Netilion Services and are automatically transmitted to the SGC500. Interaction or approval by the user is not required. Serial number SGC500 Repairs 15.1 General notes Do not perform repairs on the device. Contact Endress+Hauser Service in the event of a problem or malfunction. Endress+Hauser... -
Page 26: Return And / Or Cancellation Of Netilion
Return and / or cancellation of Netilion Subscription The device must be returned to Endress+Hauser in the following cases: • After canceling the Netilion Subscription • If a request is sent from Endress+Hauser Service in the event of a device change 15.3 Disposal Only dispose of the device with the approval of Endress+Hauser Service. - Page 28 *71551532* 71551532 www.addresses.endress.com...
