Summary of Contents for Rhima RP 1

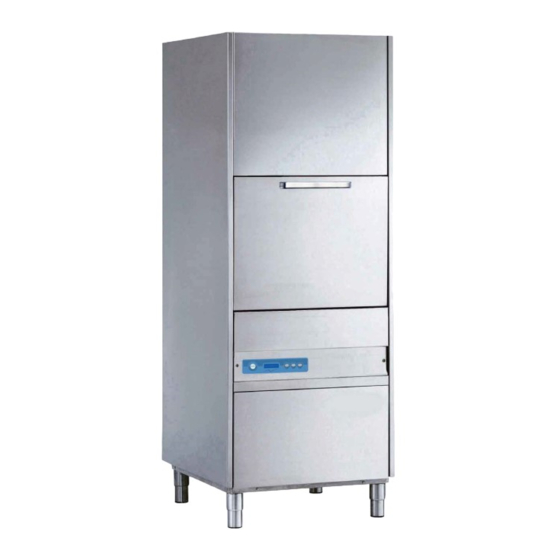

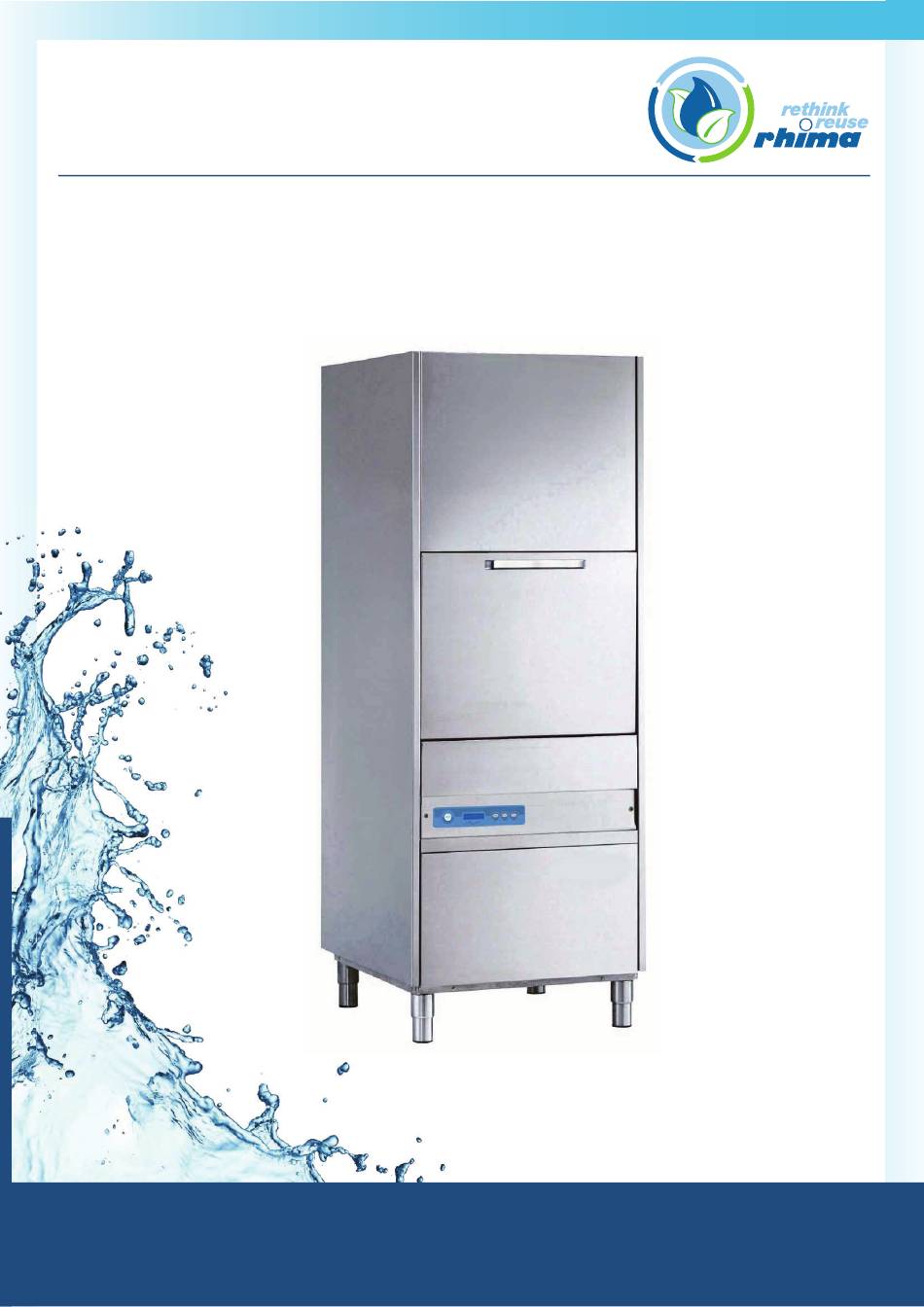

- Page 1 Operator’s Manual RP 1 & RP 1 HR Washer Australia Tel: 1300 347 944 | New Zealand Tel: 0800 902 054 | Singapore Tel: +65 9107 8943...
-
Page 2: General Instructions
● Do not attempt to repair the appliance. Repairs made by unqualified persons may cause further damage and will void warranty. ● Repairs and servicing of this appliance must be carried out by Rhima personnel only. IMPORTANT CUSTOMER INFORMATION ● To request a service, detergents or rinse additive contact your local Rhima Service centre... -
Page 3: Electrical Installation
ELECTRICAL INSTALLATION This appliance is intended to be connected to a 3 x 11 Amps electrical supply and must be earthed. PLUMBING INSTALLATION The Australian installation shall be in accordance with The Plumbing Code of Australia (PCA). This appliance should be connected to a hot water supply (Max 65°C ) for in accordance with Australian Standard AS/NZS 3500.1. -
Page 4: Operation
OPERATION Control panel and relative symbols Pict. 1 A) START push-button to start up cycle / select cycle B) Display C) Switching – On / STAND BY button D) Button, not available E) Drain Push-button (Not Available) Machine start-up Start-up •... - Page 5 The button “A” will light in white for a few seconds, while loading the software. After loading is complete, the button will light in red.. This happens only at the first start of the day of the machine. STACK • After filling, the machine automatically starts the heating phase.
-
Page 6: Switching Off
At the end of the washing cycle, a hot rinse cycle will take place A blue/green flashing on the button "A" will indicate the "CYCLE ENDED". cycle ended At cycle-end, keeping the door closed, dishes will not dry. Extract the rack or keep the door open to allow evaporation, helping the drying of the objects. - Page 7 Detergent use The machine has a standard detergent dispenser. The machine automatically sucks the product. The detergent shall be the NO FOAM type, suitable for industrial dishwashers and must comply with the EN 60335-2-58/A11 norms. The use of good quality liquid detergents is recommended. Follow the manufacturer’s recommendations for chemical dosage, related to the local water hardness.
- Page 8 ECOLOGICAL ASPECTS Recommendations for optimal use of energy, water and additives Use the machine fully loaded when possible. This shall prevent detergent, rinse aid, water and energy consumption waste. Detergent and rinse-aids Use detergents and rinse-aid chemicals with high biodegradability, to best respect the environment.
-
Page 9: Routine Maintenance
MAINTENANCE Routine maintenance WARNING: The machine is not protected against pressurized water jets. Do not use pressure cleaning system against the machine. It is recommended to contact the seller of chemicals for proper cleaning instructions, in order to have detailed indications on methods and products for the correct periodical machine sanitation. -
Page 10: Signals And Alarms
Contact the Rhima Service Department. TANK PROBE FAIL. Contact the Rhima Service Department TANK HEATING ALARM Contact the Rhima Service Department TANK OVERHEATING Contact the Rhima Service Department TANK DRAINING FAIL. Check the overflow pipe. Contact the Rhima Service Department. -
Page 11: Troubleshooting
Streaks and spots on Too much rinse-aid chemical. Reduce the rinse aid amount. Contact the Rhima objects. Service Department. Too hard water. Check the water quality. Water must not exceed 8°f in hardness. - Page 12 Tel: 1300 347 944 New Zealand Tel: 0800 902 054 Singapore Tel: +65 9107 8943 DETERGENTS To request detergents or rinse additive contact your local Rhima Service centre below: Australia: 1300 347 944 New Zealand: 0800 902 054 Singapore: +65 9107 8943 Superwash...
