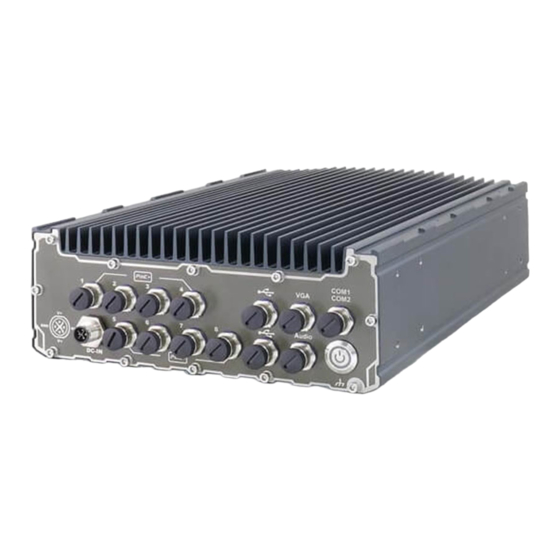

SEMIL-1700 Series
Quick Installation Guide
Warning
• Only qualified service personnel should install and service this
product to avoid injury.
• Observe all ESD procedures during installation to avoid damaging
the equipment.
1
Preparing tools
Unpack the equipment and make sure the following tools are
available and delivered contents are correct before you begin the
installation procedure.
1-1. User-provided tools
• Anti-static wrist wrap
1-2. Packing List
Item
Description
01
SEMIL 1700 series system
Drivers & utilities disc
02
(Optional)
4
PoE+ Gigabit Ethernet Port
The number of ports for each SEMIL-1700 model variant is listed below:
2
Overview
Quantity
1
1
USB Port
5
3
DC-IN
Warning
Please make sure the voltage of DC power is correct before you connect
it to the system. Supplying a voltage over 48V will damage the system.
6
VGA Port
