1.6 Configuration Steps
1.6

Configuration Steps

1.6.1

Configuring in HW Config

1.6.1.1 Configuring in HW Config

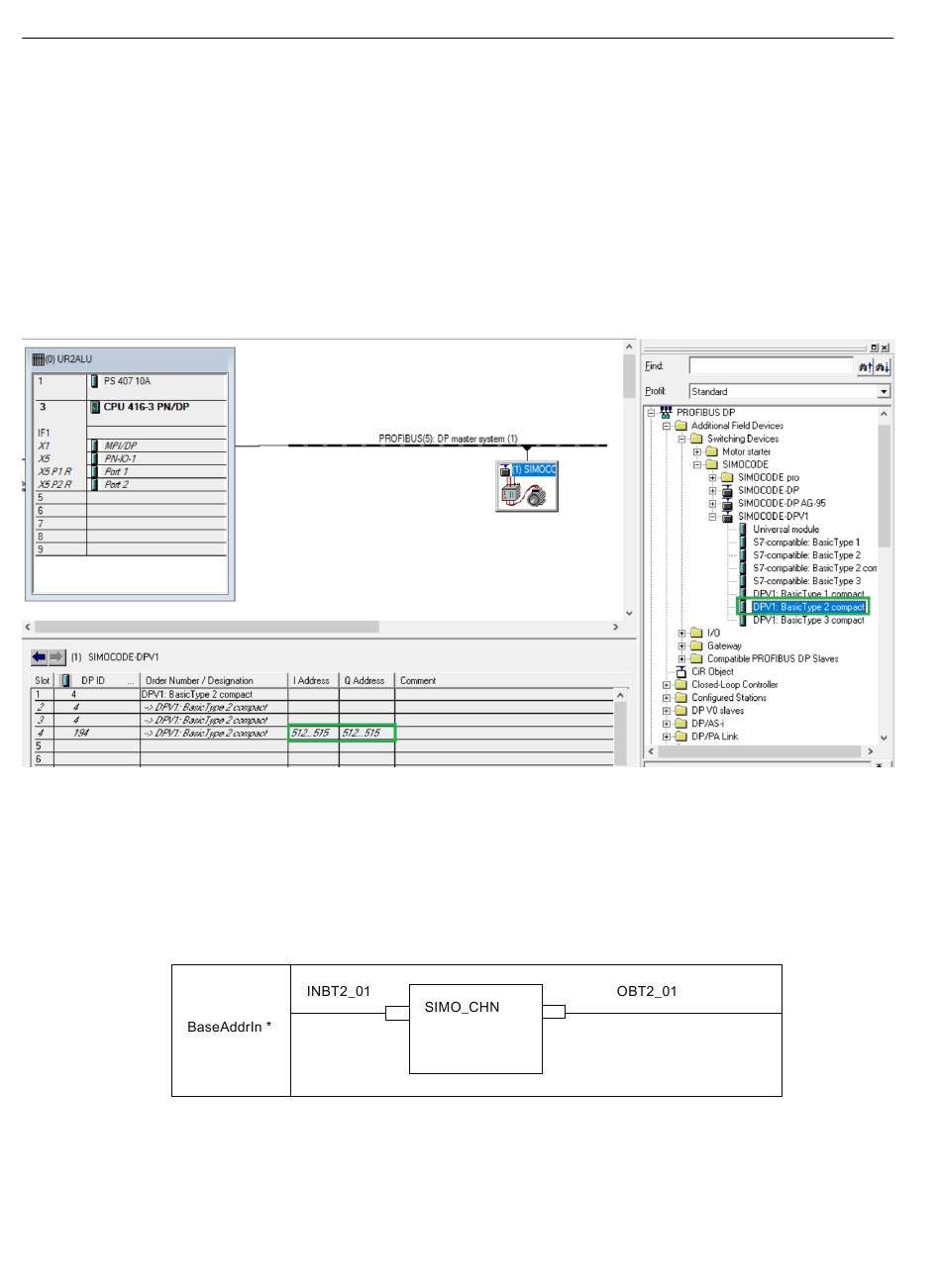

• Drag and drop the desired SIMOCODE DP object (EDD or GSD) out of the HW Catalog into the
"Station" window of HW Config and connect it to the PROFIBUS network.
• HW Config assigns the logical address to the object which will be used for setting up of the
CFC template.
Symbolic name in HW Config
The input parameter (INBT2_01) and output parameter (OBT2_01) of the SIMO_CHN block is
interconnected with the corresponding input/output address of the device (LADDR).
The logical word address must be assigned to a symbolic name (*).
