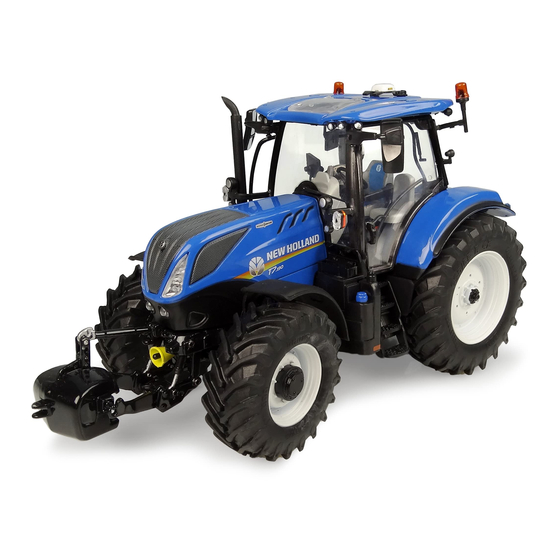

T7 AutoCommand™
Quick Instruction Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T7 AutoCommand and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for New Holland T7 AutoCommand

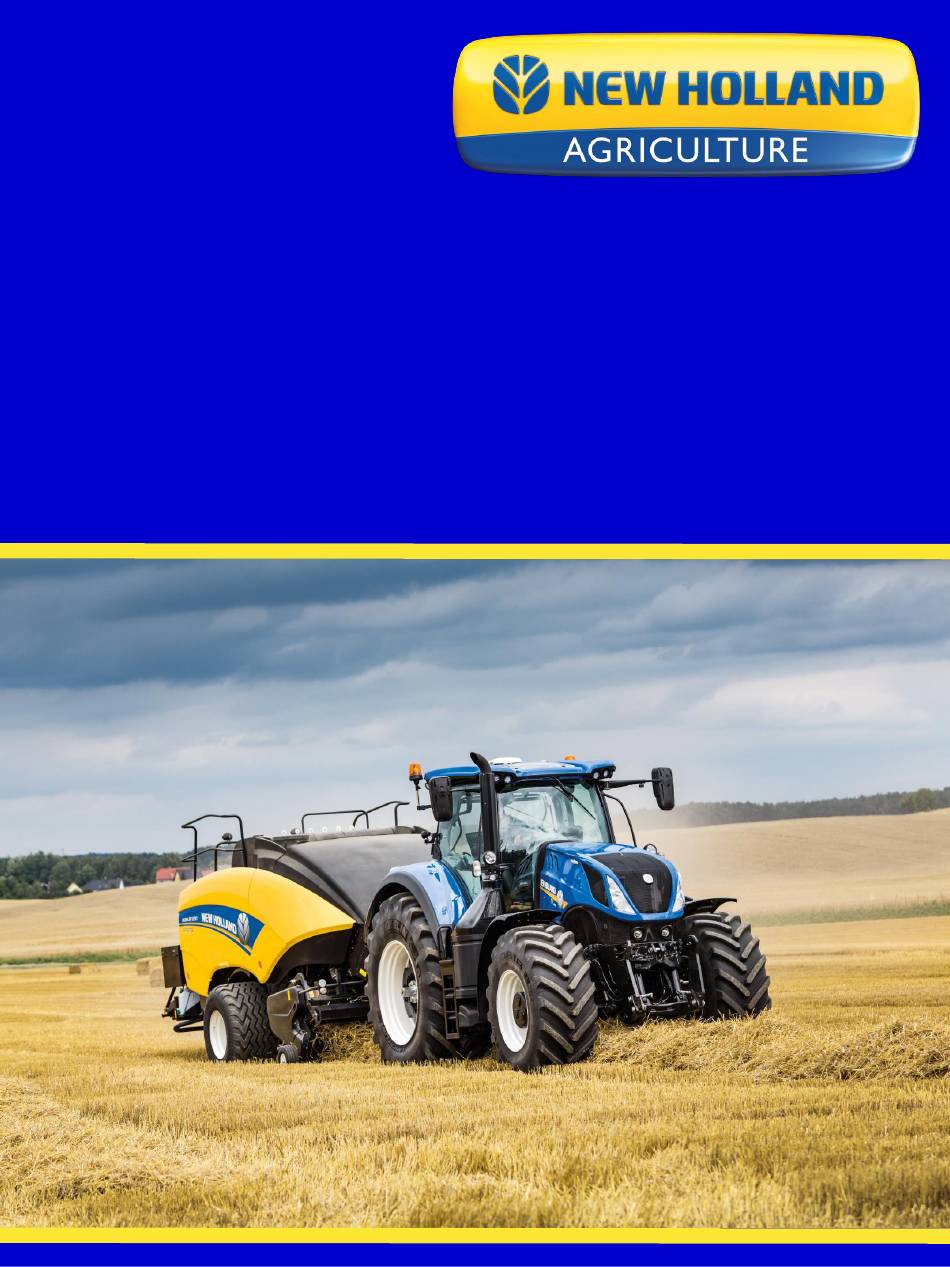

  • Page 1 T7 AutoCommand™ Quick Instruction Guide...
  • Page 2: Table Of Contents

    Contents Getting Started……………………………………………………………….1 The CommandGrip™……………………………………………………...2 Intuitive Control Panel…………………………………………………...3 Additional SideWinder™ II Controls ……………………………….4 PTO Operation………………………………………………………………..5 ‘C’ Pillar Controls…………………………………………………………….6 Hydraulic Remote Valves……………………………………………..7 Remote Valve Management…………………………………………...8 Headland Turn Sequence (HTS) Management ………………………………………………………………...9 Headland Turn Sequence (HTS) Programming ……………………………………………………………….10...
  • Page 3: Getting Started

    Getting Started • Stage 1: Ensure the shuttle lever is in the park position . Press lever down then forward. • Stage 2: Depress clutch pedal. In order to start the engine the clutch pedal must be depressed. • Stage 3: Choose the required speed range. 3 speed ranges (target speeds) each in forward and reverse are available.
  • Page 4: The Commandgrip

    The Command Grip The CommandGrip™ Electro-hydraulic remote (EHR) control Rear hitch IntelliSteer™ activation/cancel Headland Turn Sequence (HTS) Power shuttle (forward and reverse) Target speed adjustment Target speed selection Cruise control New Anti-Jack Knife Increased safety on steep terrain as this feature brakes the implement while the tractor continues at a fixed speed.
  • Page 5: Intuitive Control Panel

    GENESIS® T8 Series SmartTrax™ ICP Intuitive Control Panel Components Constant engine speed: press button 1 or 2 actual engine speed is saved constant speed function is activated. Fine adjustment with arrow keys Deceleration function Headland Turning Sequence: • Recording • Automatic or sequential control Joystick control selects which...
  • Page 6: Additional Sidewinderâ„¢ Ii Controls

    Additional SideWinder™ II Controls Controls under the lid: Drop rate rear hitch Sensitivity draft control system Height limitation rear hitch Slip control value [%] Remote valve configuration – oil flow, timer. Push-turn logic Lift height limitation front hitch Engine droop dial: Adjusts maximum RPM of the engine depending on driver/implement requirements (positioned as shown on T7HD and...
  • Page 7: Pto Operation

    PTO Operation Brake release front / rear 2 Speed front PTO Engine speeds: • 1000 @ 1886 rpm • 1000E @ 1585 rpm (T7 HD only) PTO engage front / rear 4 speed Rear PTO Engine Speeds: • 540 @ 1930 rpm •...
  • Page 8: C' Pillar Controls

    ‘C’ Pillar Controls Hydraulic main switch Up: Remote valves active Centre: Remotes, rear hitch locked Down: Remotes + rear hitch active High mounted road lights / LED stripes in bonnet IntelliSteer™ activation / lock ISO BUS class 3 activation / engagement Electronic battery isolator Diagnostic plug 9 pin ISO BUS connector...
  • Page 9: Hydraulic Remote Valves

    GENESIS® T8 Series SmartTrax™ Hydraulic Remote Valves Belt Widths View of the hydraulic remote slices from rear of the tractor F – Float L – Lower N – Neutral R – Raise Control of rear and mid mounted remotes can be switched between joystick and paddle levers (using button shown on ICP) 4 Paddle levers to control up to 4 remote valves...
  • Page 10: Remote Valve Management

    Remote Valve Management Personalise which remotes are operated from either the paddle levers on the armrest, the remote joystick or the remote buttons on the CommandGrip™ This can be done through the IntelliView™ IV screen as shown. You can save custom settings against specific implement names depending on what implement is being used.
  • Page 11: Headland Turn Sequence (Hts)

    GENESIS® T8 Series SmartTrax™ Headland Turn Sequence Spacing – 80” Management (HTS II) • Can store sequences against implement names (16 in total) • Each implement can have two sequences (A and B) • Trigger points can be selected for each action •...
  • Page 12: Programming

    HTS II Programming To create a sequence form the menu instead of recording: • Press + to open the selection window Tractor functions are as shown: • Engine • Transmission • PTO (F&R) • Suspension • Camera • Remotes (Flow and Time) •...
  • Page 13 T8 Series SmartTrax™ GENESIS® T8 Series SmartTrax™ Track Conditioning HTS II Programming • Press + to add the next action and to build up the sequence • Default trigger point is time (indicated by hour glass and 0 seconds • Pressing the seconds icon opens the window to edit the time •...
  • Page 14 T8 Series SmartTrax™ GENESIS® T8 Series SmartTrax™ Notes Track Conditioning...
  • Page 15 T8 Series SmartTrax™ GENESIS® T8 Series SmartTrax™ Notes Track Conditioning...
  • Page 16 Version 1 09/05/2016...
