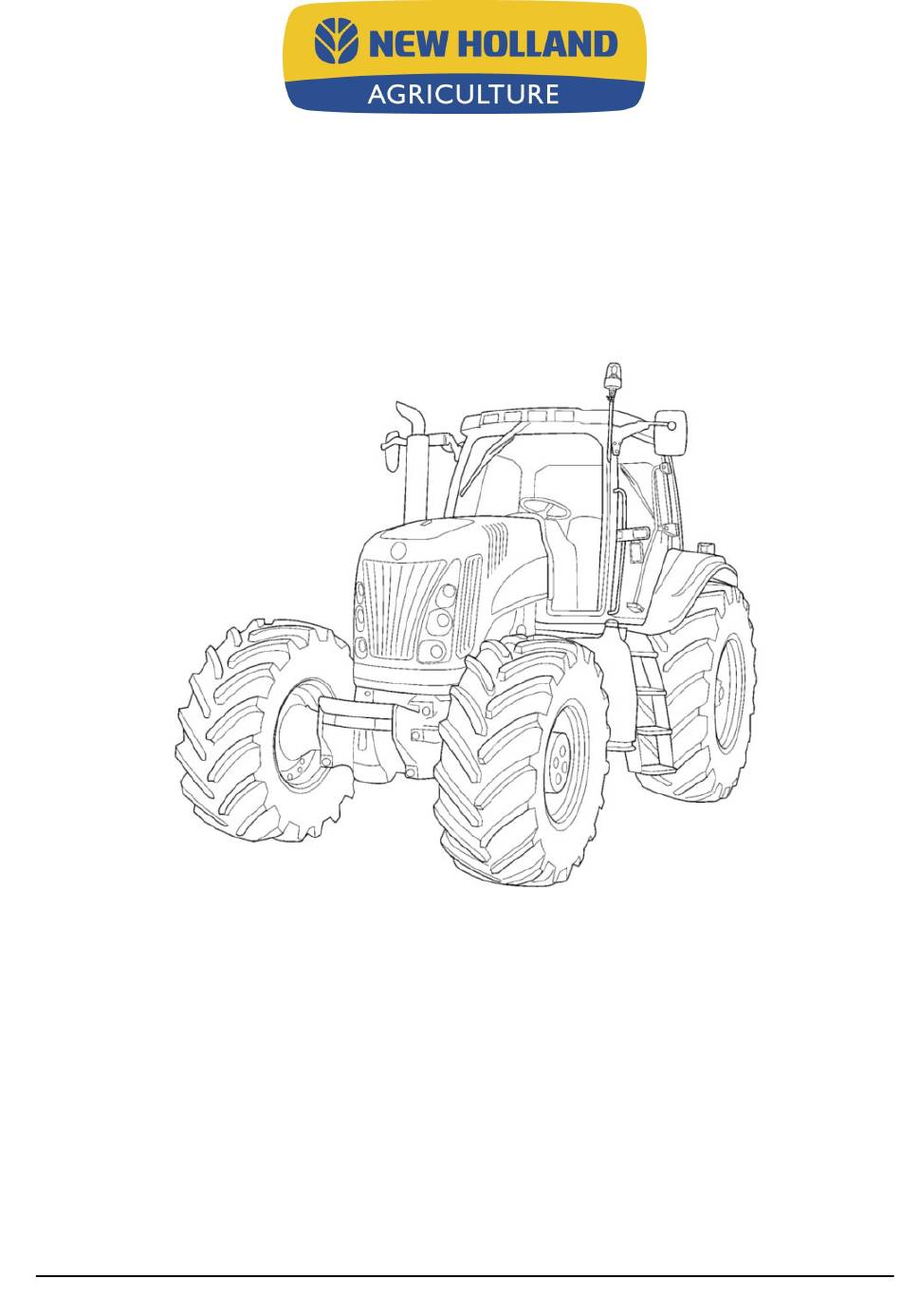

- Page 1 SERVICE MANUAL T8010 [Z8Rx06001 - ] T8020 [Z8Rx06001 - ] T8030 [Z8Rx06001 - ] T8040 [Z8Rx06001 - ] T8050 [Z8Rx06001 - ] 84318454 14/03/2010...
- Page 2 Contents INTRODUCTION DISTRIBUTION SYSTEMS............. A PRIMARY HYDRAULIC POWER SYSTEM ..........A.10.A PRIMARY HYDRAULIC POWER SYSTEM Electro-hydraulic remote valve .
- Page 3 WHEELS AND TRACKS Wheels............D.50.C BODY AND STRUCTURE ..............
- Page 4 INTRODUCTION WARNING Hydraulic fluid escaping under pressure can have enough force to penetrate the skin. Hydraulic fluid may also infect a minor cut or opening in the skin. If injured by escaping fluid, see a doctor at once. Serious infection or reaction can result if medical treatment is not given immediately. Make sure all connections are tight and that hoses and lines are in good condition before applying pressure to the system.
- Page 5 DISTRIBUTION SYSTEMS - PRIMARY HYDRAULIC POWER SYSTEM Hydraulic pump - Dynamic description T8010, T8020, T8030, T8040, T8050 The tractor uses three hydraulic pumps which are driven through a drive housing on the right side of the range trans- mission. The pump drive housing gears are driven by the PTO drive line and all the pumps turn at approximately 1.33 times engine speed.
- Page 6 DISTRIBUTION SYSTEMS - PRIMARY HYDRAULIC POWER SYSTEM hose. However, when operating two or more remote sections the high flow pump has approximately 75.7 l/min (20.0 US gpm) more flow than a standard pump system to supply the additional remote circuits. RCPH07CCH026FAE 1.
- Page 7 DISTRIBUTION SYSTEMS - PRIMARY HYDRAULIC POWER SYSTEM RCPH07CCH027FAE 1. Megaflow signal line 4. Standard PFC pump 2. Megaflow outlet 5. Megaflow inlet 3. Megaflow PFC pump 6. Main filter assembly Lubrication circuit The lubrication flow is a combination of both dual gear pumps’ outputs – filtered charge pump flow and filtered/cooled excess regulated circuit flow.
- Page 8 DISTRIBUTION SYSTEMS - PRIMARY HYDRAULIC POWER SYSTEM RCPH07CCH029FAE 6. Drop box lube 1. Left brake lube 2. PTO lube supply 7. Right brake lube 3. Range lube 8. Charge pump to filter inlet 4. Master clutch lube 9. Oil cooler return to filter 5.
