Product Guide

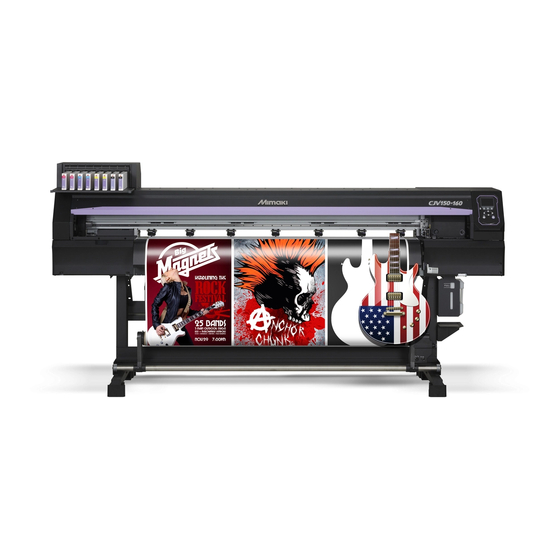

The new high quality Print&Cut entry models
The information in this document is subject to change without notice.
07-03-2019
Mimaki Europe B.V.
V1.71EU
Sign Graphics Products

Advertisement

loading
Need help?

Need help?

Do you have a question about the CJV150-75 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MIMAKI CJV150-75

Summary of Contents for MIMAKI CJV150-75

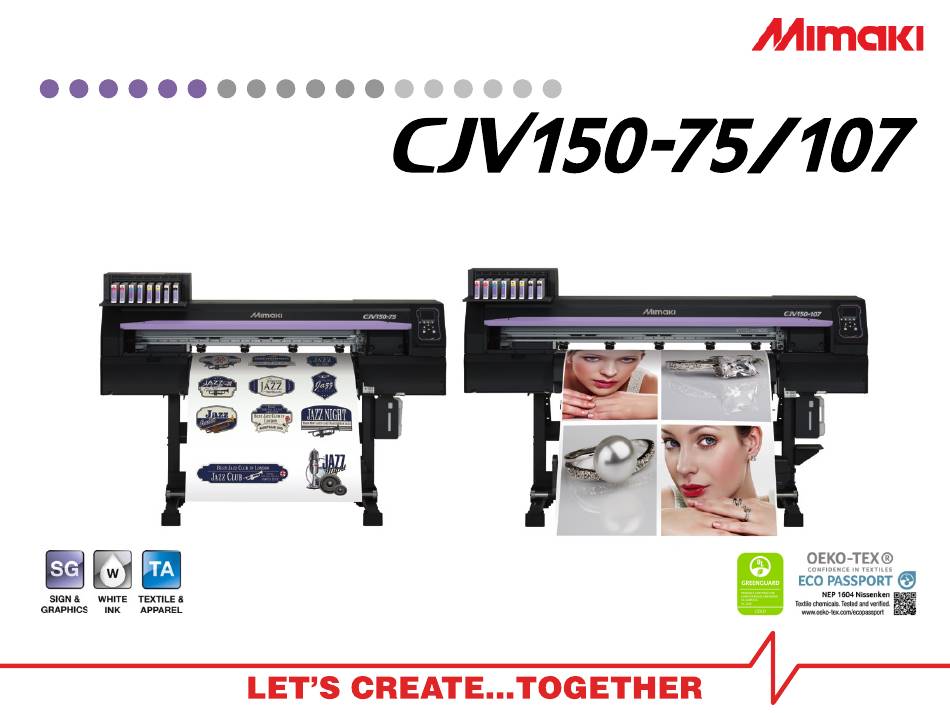

  • Page 1 Product Guide The new high quality Print&Cut entry models The information in this document is subject to change without notice. 07-03-2019 Mimaki Europe B.V. V1.71EU Sign Graphics Products...

  • Page 2: Terms Of Use

    Mimaki Europe B.V. • Contents and technical explanations in this presentation are based on the test results achieved at Mimaki at the time of testing and are not a guarantee for performance. Substrates should be tested beforehand. •...
  • Page 3 Mimaki Advanced Pass System 3 (MAPS3) reduces banding and produces smoother images • Variable dot printing produces smoother gradients and quartertones • Mimaki Expand Color mode is available for more vivid and high contrast colors with RasterLink6* • 3-way intelligent heaters optimize dot gain •...
  • Page 4 Several functions to support unattended operation • Nozzle Check Unit allows printing without nozzle clogging • UISS performs continuous ink supply while unattended printing • Stable feeding of heavy media, max weight of 40kg and max diameter of 250mm Mimaki Europe B.V. Sign Graphics Products...

  • Page 5: System Configuration

    1000BASE-T Compatible OS: Windows Vista(32/64bit) Windows 7(32/64bit) Windows 8(32/64bit) Options Windows 10(32/64bit) Monitor: 1366x768 MBIS3 Works also with: Drying fan Air exhaust unit Static prevention sheet Front cover 8x Eco-cartridge for 600ml BS3/BS4 inks Mimaki Europe B.V. Sign Graphics Products...
  • Page 6 2L Ink pack (for MBIS3) Capacity - 2L Ink pack (for MBIS3) WSi: 220ml cartridge *Up to 8 colors can be set *BS4 has low odor *K is also available out of 10 colors. Mimaki Europe B.V. Sign Graphics Products...
  • Page 7 Works in high quality and high speed modes • Delivers precision droplet placement in three sizes 1-head:1440-nozzle (180-nozzle x 8-lines) 1 2 3 4 5 6 7 8 Nozzle row length Approx.25.4mm (1 inch) Nozzle width Approx.31mm (1.2 inch) Mimaki Europe B.V. Sign Graphics Products...
  • Page 8 ｌ ｌ Low density due to a gap between the dots High density with no gap between the dots ↓ ↓ Not suitable for high speed mode (low resolution) Suitable for High speed mode Mimaki Europe B.V. Sign Graphics Products...
  • Page 9 The print modes shown in this document are the performance of the printer itself. The profiles are created selectively depending on the media type. When the profile is not available, use MPM-3 to create the profile for the media. Mimaki Europe B.V. Sign Graphics Products...
  • Page 10 720x720,10P,Bi 720x1080,16P,Bi High Quality High Quality 720x1080,14P,Bi 720x1440,18P,Bi CJV150-107 CJV150-107 Super Smooth Super Smooth CJV150-75 CJV150-75 720x1440,18P,Bi 1440x1440,20P,Bi m²/h m²/h * MAPS works with “Quality priority” setting in RasterLink6 ** MAPS does not work Mimaki Europe B.V. Sign Graphics Products...
  • Page 11 720x1440,32P,Bi 0,28 720x1440,32P,Bi 1,39 CJV150-107 CJV150-107 Super Smooth 0,19 Super Smooth 0,96 CJV150-75 1440x1440,32P,Bi 0,17 1440x1440,32P,Bi CJV150-75 0,86 m²/h m²/h * CJV150-75 does not have the high speed mode ** MAPS does not work Mimaki Europe B.V. Sign Graphics Products...
  • Page 12 High Quality… 0,61 1440x1440,32P,Bi m²/h m²/h * MAPS does not work 3-layer printing (Color → White → Color) 0,94 High Speed… 0,82 0,53 Standard①… 0,46 0,32 Standard②… 0,28 CJV150-107 0,14 CJV150-75 High Quality… 0,12 m²/h Mimaki Europe B.V. Sign Graphics Products...
  • Page 13 The print modes shown in this document are the performance of the printer itself. The profiles are created selectively depending on the media type. When the profile is not available, use MPM-3 to create the profile for the media. Mimaki Europe B.V. Sign Graphics Products...
  • Page 14 720x720,10P,Bi High Speed 540x720,10P,Bi High Speed② Standard① 720x720,12P,Bi 720x720,10P,Bi Standard Standard② 720x1080,18P,Bi 720x1080,18P,Bi CJV150-107 CJV150-107 CJV150-75 High Quality CJV150-75 High Quality 720x1440,24P,Bi 720x1440,24P,Bi m²/h m²/h * MAPS works with “Quality priority” setting in RasterLink6 Mimaki Europe B.V. Sign Graphics Products...
  • Page 15 20,0 High Speed 540x360,3P,Bi 540x720,8P,Bi High Speed② 14,3 540x720,4P,Bi Standard① 720x720,8P,Bi Standard① 12,2 720x720,4P,Bi Standard② Standard② 720x720,10P,Bi 720x1080,6P,Bi High Quality High Quality 720x1080,14P,Bi 720x1440,8P,Bi CJV150-107 CJV150-107 Super Smooth Super Smooth 720x1440,18P,Bi 720x1440,10P,Bi m²/h m²/h Mimaki Europe B.V. Sign Graphics Products...
  • Page 16 • Grainy results can be seen at the low • Reflection density is higher at the gradation areas Sb53-DK • low gradation part More smoke generation during heat transfer, compared to the K ink Mimaki Europe B.V. Sign Graphics Products...
  • Page 17 • Sb54, 4C printing speeds KT,BLT,MT,YT Super Draft 48,0 360x360,1P,Bi Draft 30,0 540x360,2P,Bi High Speed① 20,0 540x360,3P,Bi High Speed② 14,3 540x720,4P,Bi Standard① 12,2 720x720,4P,Bi Standard② 720x1080,6P,Bi High Quality 720x1440,8P,Bi CJV150-107 Super Smooth 720x1440,10P,Bi m²/h Mimaki Europe B.V. Sign Graphics Products...
  • Page 18 • Initial brightness of SS21 is 67% higher than ES3 • Brightness of SS21 after 3-year acceleration test is still 5% higher than ES3’s initial value The scratch resistance of SS21 silver ink is poor. Lamination is advised Mimaki Europe B.V. Sign Graphics Products...
  • Page 19 Target metallic color can be selected from swatch library • 3-type metallic color collection Type A: Chart Type B: Booklet Type C: Patch *Each type of metallic color collection has the same colors. 3-type metallic color collections are available in RL6 Mimaki Europe B.V. Sign Graphics Products...
  • Page 20 Metallic Color Collection incl. Or ink edition • SS21 C,M,Y,K,Or,Lk+W,Si Ink set • 108 colors added! Red/Orange colors are added • There are total 756 colors including the regular metallic colors Type B and C Mimaki Europe B.V. Sign Graphics Products...
  • Page 21 7% more than only with 4C • The large color gamut makes it easy to reproduce corporate colors, etc. M C Y Lc Lm Lk Or Lk Or W Si Lk Or W W Mimaki Europe B.V. Sign Graphics Products...
  • Page 22 Gamut comparison Comparing print results CMYKLcLm CMYKLcLmLk+Or -120 -100 -80 100 120 Less bright orange High reproducibility with CMYKLcLmLkOr color brighter orange color CMYK -100 Colors of PANTONE PANTONE近似色 -120 *PANTONE solid chips coated(1085 colors) Mimaki Europe B.V. Sign Graphics Products...
  • Page 23 Smooth color balance without color shifting, reproducing high quality, smooth gray output CMYKLcLm CMYKLcLmLkOr CMYKLcLm CMYKLcLmLkOr • Reddish gray • Smooth skin tone • No color shift and • Reddish gray smooth gradation • Skin with grainy appearance Mimaki Europe B.V. Sign Graphics Products...
  • Page 24 Transmission density: 0.27 Transmission density: 0.36 Print mode: 720x1440,32P,Bi Print mode: 720x1440,32P,Bi *White – 200% print Productivity: 0.9m²/h Productivity: 2.07m²/h *Light-up, Mimaki logo underneath Maximum drop size: 14pl Maximum drop size: 24pl Media: PET Media: PET Mimaki Europe B.V. Sign Graphics Products...
  • Page 25 High accuracy dot placement, jetting ink drops in straight lines, with almost perfect round dots • Generating less mist, printing clear and sharp letters, lines, edges, and etc. • Waveform is optimized to reduce the risk of missing nozzles Mimaki Europe B.V. Sign Graphics Products...
  • Page 26 Ink dots do not overlap and gives Ink dots overlap and no accurate dot placement an accurate dot placement ↓ ↓ Grainy appearance and uneven density No grainy appearance Mimaki Europe B.V. Sign Graphics Products...
  • Page 27 • This allows printing in not only high resolution printing for high quality, but also high speed & high density printing for high productivity! Variable dot Normal dot Mimaki Europe B.V. Sign Graphics Products...
  • Page 28 3-way Intelligent Heater patent No. Controls drop size by heating up media. Japan 4889059 Heater cover 8.444.262 Print-head Print- heater China ZL 200910222559.8 Post-heater Pinch roller Pre-heater Post-heater to ensures faster drying Grid roller Mimaki Europe B.V. Sign Graphics Products...
  • Page 29 Stunning quality • MAPS3 (Mimaki Advanced Pass System 3) • MAPS3 prints passes in gradation-like tone, by dispersing ink drops between the passes, which reduces banding, uneven drying ink, and bidirectional stripes • MAPS3 works in the higher pass modes of each resolution...

  • Page 30: Continuous Operation

    • When clogged nozzles are detected, the cleaning is started automatically • When the clogged nozzle is not recovered by cleaning, the Nozzle Recovery System works automatically, and printing starts Mimaki Europe B.V. Sign Graphics Products...
  • Page 31 When the number of missing nozzles is higher than the number in the setup Warning (Standby) Nozzle check duration: 50sec./check Nozzle check ink consumption: 192 cc/year* *Operating Condition: One check/hour x 10-hour operation/day x 240-day Mimaki Europe B.V. Sign Graphics Products...
  • Page 32 Replaces missing nozzles by working nozzles in other passes • No need for direct service intervention • Makes printing with the same quality possible, even if nozzles are missing Continuous printing by NRS Continuous Operation Down Time Mimaki Europe B.V. Sign Graphics Products...
  • Page 33 • NRS does not change the printing speed • NRS does not work when: • Printing in low pass modes • Printing in some modes with MAPS3 • The position of the nozzle is not correct Mimaki Europe B.V. Sign Graphics Products...
  • Page 34 • No pollution on the print head caused by ink residue from the wiper • Easier daily maintenance as the wiper is cleaned automatically 1. Washing liquid Wiper cleaner 2. Wipe out Mimaki Europe B.V. Sign Graphics Products...
  • Page 35 Event mail • Status of the printer can be sent from the printer to a mobile phone via the internet • For remote status indication of the printer Internet Print start/finish error/warning Email receiving device Mimaki Europe B.V. Sign Graphics Products...
  • Page 36 Continuous operation • MCT (Mimaki Circulation Technology) • Stable white and silver ink supply to the print heads • Circulating the white and silver inks in the ink line system • Preventing the settlement of pigments • MCT works only when the white and silver inks are installed...
  • Page 37 • No waste of time and media or ink • Not available with 6C+Wsi/6C+WW/8C ink sets • Optional MBIS3 (Mimaki Bulk Ink System 3) • Large volume 2L ink packs are placed directly on the ink station • Making it possible to print continuous large jobs •...
  • Page 38 The diameter of the taken-up media is measured by a sensor • This keeps the tension of the media constant Take-up roll switch For manual operation press the button to roll up the media. Mimaki Europe B.V. Sign Graphics Products...
  • Page 39 • Continuous Crop Mark Detection • A maximum of four crop marks are automatically and continuously detected so that printed images are accurately cut, compensating for distortion in each image Mimaki Europe B.V. Sign Graphics Products...
  • Page 40 When Printing and cutting 100 data of 100×100mm (1) Conventional crop mark, 4 points, 59min.10sec. (about 1.4㎡) (2) Zero margin crop mark, 42min.42sec. (about1.2㎡) Zero margin crop mark Conventional crop mark *Possible with FW Ver.1.4 or later Mimaki Europe B.V. Sign Graphics Products...
  • Page 41 Intermediate crop marks of the Segment③ Intermediate feed direction are detected, enabling crop mark four-point corrections for each segment Segment② • This leads to accurate, long-length Intermediate crop mark cutting, even if the image is distorted Segment① Mimaki Europe B.V. Sign Graphics Products...
  • Page 42 When the length of the over cut is set, cutting is performed from the position before the starting point by the specified length and stops after crossing the end point Setting value: 0.1mm – 1.0mm Mimaki Europe B.V. Sign Graphics Products...
  • Page 43 Cut before printing allows for… When the ink is not dry enough… ②The cut part does not stick together ②The cut part sticks together again again Drying time is No drying time is required required Mimaki Europe B.V. Sign Graphics Products...
  • Page 44 Workflow with auto pull-back printing ③ Print colors ① Print silver and color plate Result Image for metallic color ② Metallic blue Automatically pull-back media to origin Green Green Silver (Spot color) Blue on top Mimaki Europe B.V. Sign Graphics Products...
  • Page 45 • Machine without automatic media clamp function • Remove pinch roller manually or always use pinch roller Unattended operation of P&C is not possible Remove pinch Attach pinch Print Print roller manually roller manually Mimaki Europe B.V. Sign Graphics Products...
  • Page 46 Easy to see from a distance Status LED Various information is Blinking in Blue: Normal operation displayed in a graphical Blinking in Red: Needs attention manner, such as media width, heater temperature and remaining ink Mimaki Europe B.V. Sign Graphics Products...
  • Page 47 Lift up blocks can be attached to the casters of the printer • They prevent the shaking of the machine while printing Without lift up block With lift up block Lift up the printer and set block Mimaki Europe B.V. Sign Graphics Products...
  • Page 48 Printer status display Web Update function Frequently used setting can be The program update and the profile registered as “My Favorite”. download can be done through the web easily Up to 30 settings can be registered. Mimaki Europe B.V. Sign Graphics Products...
  • Page 49 RasterLink6 recognizes spot color path as cut line • Crop marks can be attached in RasterLink6 • P&C data creation with RasterLinkTools ①Select images ②Click “Frame Extraction” ③Extracts frames of images and specifies them as the spot color “CutContour” Mimaki Europe B.V. Sign Graphics Products...

  • Page 50: Input Profiles

    • Input profile “WideMimakiNaturalVivid” is available. • Reproducing brilliant color for Orange and Light Black ink set WideMimakiCMYK WideMimakiNaturalVivid WideMImaki2013forSign ・Mimaki’s standard input ・Reproduces brilliant color ・High intensity input profile profile and natural skin tone for specialized for (C)JV150/300 (Or,Lk) JV400LX(Or,G) Mimaki Europe B.V.
  • Page 51 Options • Drying Fan • Extra power supply needed. 100-220V, 1,4A • OPT-J0369 for CJV150-75 • OPT-J0368 for CJV150-107 • Air exhaust unit • Works only in combination with the Drying fan • OPT-J0372 for CJV150-75 • OPT-J0371 for CJV150-107 •...
  • Page 52 Options • MBIS3 – Mimaki bulk ink system • OPT-J0364 for CJV150 series • Anti-static sheet, recommended option! • OPT-J0374 for CJV150-75 • OPT-J03373 for CJV150-107 Mimaki Europe B.V. Sign Graphics Products...

  • Page 53: Specifications

    1x (100V) Max 1440W / 1x (220V)Max 1920W Applicable standards VCCI class A / FCC class A / UL60950-1ETL / CE Marking(EMC, Low Voltage and Machinery) CB report / RoHS / REACH・CCC(pending)・Energy Star / RCM Mimaki Europe B.V. Sign Graphics Products...
  • Page 54 4. Ink odor. Please use the machine in a well-ventilated environment 5. Do not install in the place where using a photograph fixer or the place with acid steam like acetic acid, hydrochloric acid *Installation space for PC is required separately Mimaki Europe B.V. Sign Graphics Products...
  • Page 55 Certificates • OEKO-TEX® ECO-PASSPORT Certification for textile inks • Mimaki ink Sb53 and Sb54 are OEKO-TEX® certified • ECO PASSPORT by OEKO-TEX® is a mechanism by which textile chemical suppliers demonstrate that their products are suitable to print skin-friendly clothing and other textiles for end users •...
  • Page 56 No. After printing silver layer, the media is automatically pulled back to the origin, then it prints color layer. Are the cutting accuracy and the throughput of CJV150 and Yes, they are. CJV300 equivalent? Mimaki Europe B.V. Sign Graphics Products...
  • Page 57 CJV150/300 cutting accuracy is equivalent or better. and CJV30 equivalent? Throughput depends on cutting data How can I print Mimaki Metallic Color Collection? The Metallic Color Collections are stored in a folder of RL6. Please open the file from the folder and print.
  • Page 58 What is the color difference between SS21 silver and ES3 The color is different. silver inks? SS21 silver ink shows more shiny effect and has a little bit more darker tone compared to ES3 silver ink. Mimaki Europe B.V. Sign Graphics Products...
  • Page 59 Thank You! MIMAKI EUROPE B.V. Mimaki Europe B.V. Sign Graphics Products...
