Features

Alarming by pressing, reset by a special key.
Plug-in structure.
Designed to comply with EN 54-11.

Description

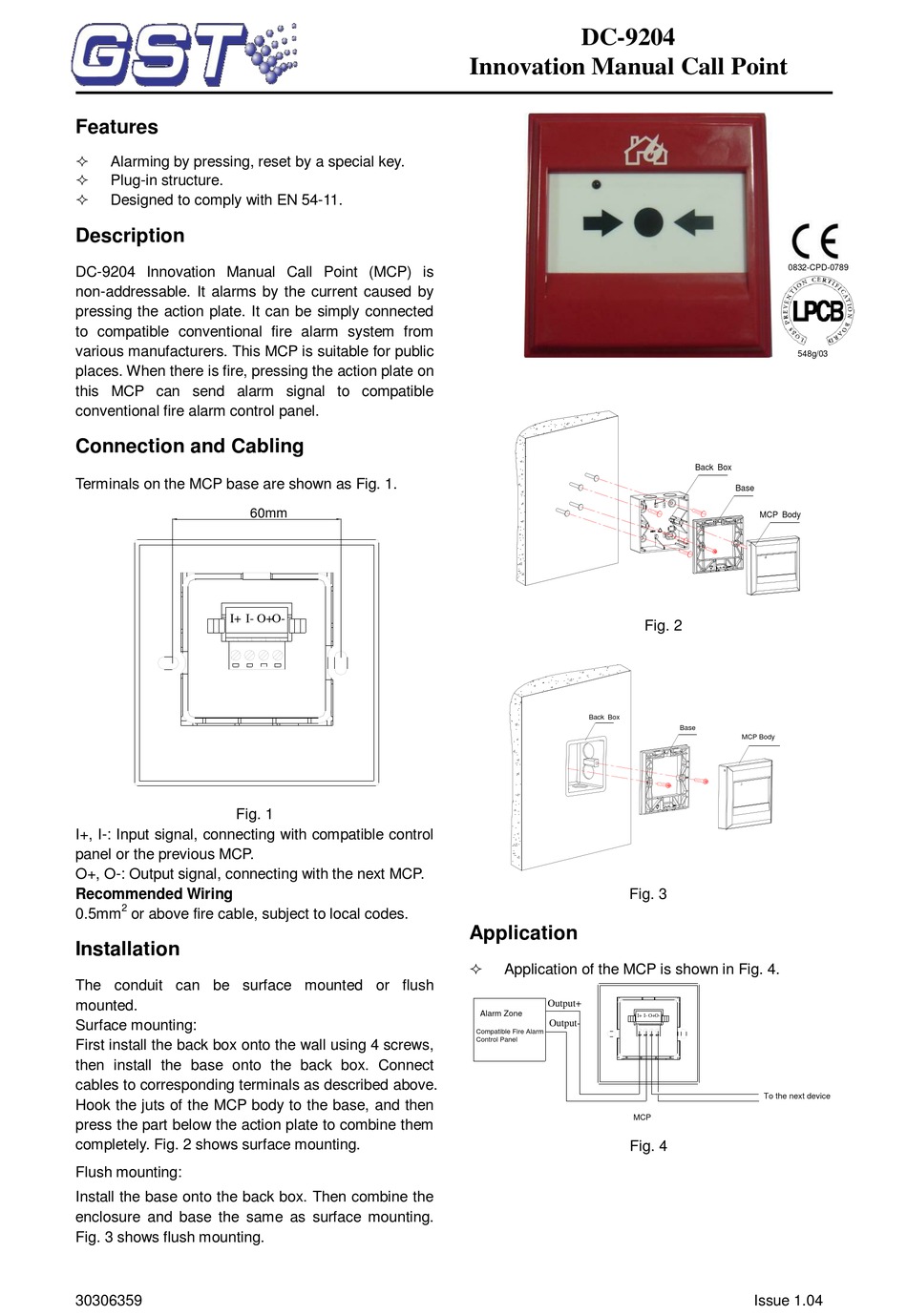

DC-9204 Innovation Manual Call Point (MCP) is
non-addressable. It alarms by the current caused by
pressing the action plate. It can be simply connected
to compatible conventional fire alarm system from
various manufacturers. This MCP is suitable for public
places. When there is fire, pressing the action plate on
this MCP can send alarm signal to compatible
conventional fire alarm control panel.

Connection and Cabling

Terminals on the MCP base are shown as Fig. 1.
I+ I- O+O-
Fig. 1
I+, I-: Input signal, connecting with compatible control
panel or the previous MCP.
O+, O-: Output signal, connecting with the next MCP.

Recommended Wiring

2
0.5mm
or above fire cable, subject to local codes.

Installation

The conduit can be surface mounted or flush
mounted.
Surface mounting:
First install the back box onto the wall using 4 screws,
then install the base onto the back box. Connect
cables to corresponding terminals as described above.
Hook the juts of the MCP body to the base, and then
press the part below the action plate to combine them
completely. Fig. 2 shows surface mounting.
Flush mounting:
Install the base onto the back box. Then combine the
enclosure and base the same as surface mounting.
Fig. 3 shows flush mounting.
30306359
60mm
DC-9204
Innovation Manual Call Point
Back Box
Fig. 3

Application

Application of the MCP is shown in Fig. 4.
Output+
Alarm Zone
I+
Output-
Compatible Fire Alarm
Control Panel
MCP
Fig. 4
0832-CPD-0789
548g/03
Back Box
Base
MCP Body
Fig. 2
Base
MCP Body
I-
O+
O-
To the next device
Issue 1.04
