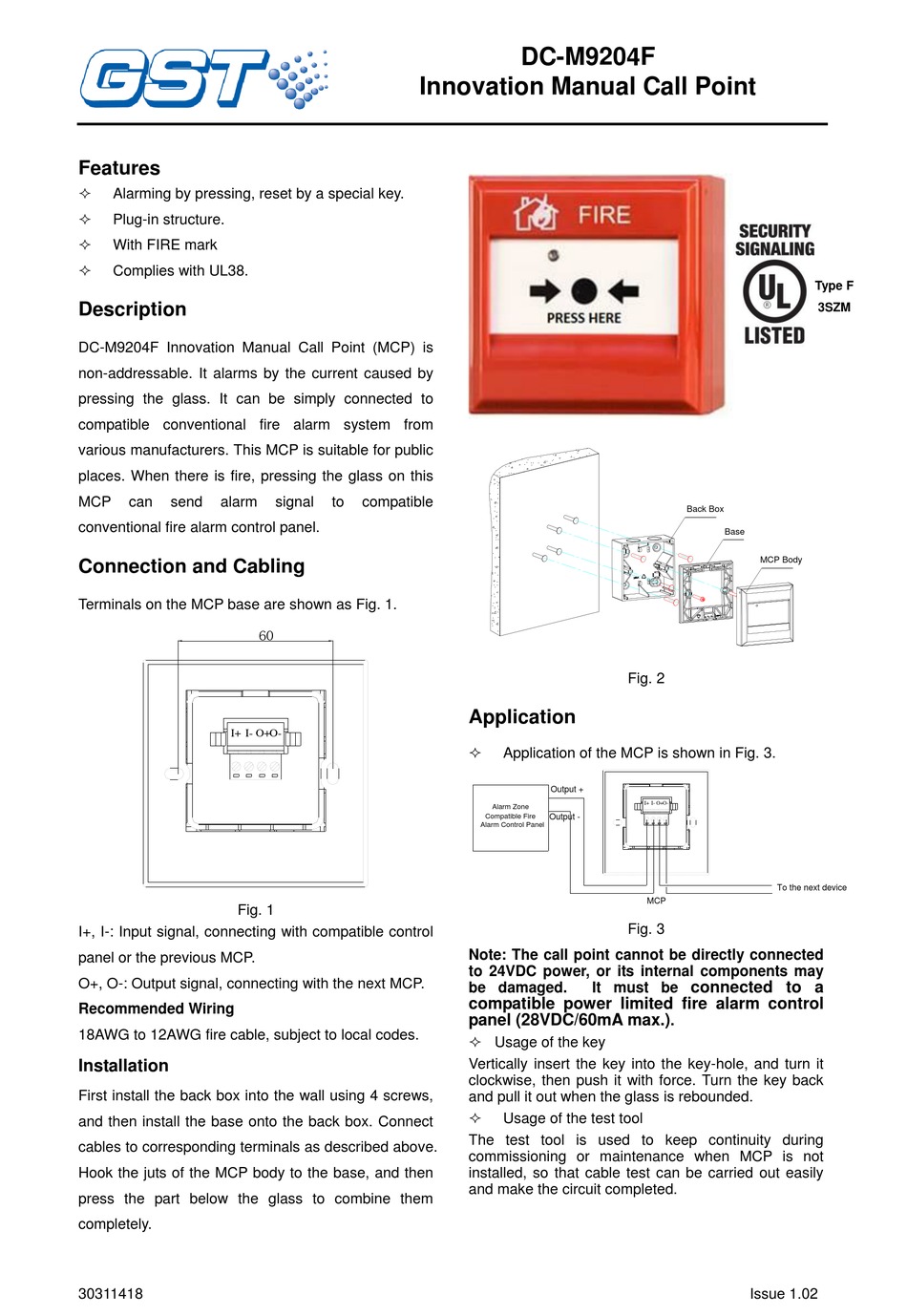

GST DC-M9204F Quick Start Manual

Features

Alarming by pressing, reset by a special key.

Plug-in structure.

With FIRE mark

Complies with UL38.
Description
DC-M9204F Innovation Manual Call Point (MCP) is
non-addressable. It alarms by the current caused by
pressing the glass. It can be simply connected to
compatible conventional fire alarm system from
various manufacturers. This MCP is suitable for public
places. When there is fire, pressing the glass on this
MCP can send alarm
conventional fire alarm control panel.
Connection and Cabling
Terminals on the MCP base are shown as Fig. 1.
I+ I- O+O-
Fig. 1
I+, I-: Input signal, connecting with compatible control
panel or the previous MCP.
O+, O-: Output signal, connecting with the next MCP.
Recommended Wiring
18AWG to 12AWG fire cable, subject to local codes.
Installation
First install the back box into the wall using 4 screws,
and then install the base onto the back box. Connect
cables to corresponding terminals as described above.
Hook the juts of the MCP body to the base, and then
press the part below the glass to combine them
completely.
30311418
Innovation Manual Call Point
signal to compatible
60
DC-M9204F
Fig. 2
Application

Application of the MCP is shown in Fig. 3.
Output +
Alarm Zone
Compatible Fire Output -
Alarm Control Panel
Fig. 3
Note: The call point cannot be directly connected
to 24VDC power, or its internal components may
be damaged. It must be
compatible power limited fire alarm control
panel (28VDC/60mA max.)
 Usage of the key
Vertically insert the key into the key-hole, and turn it
clockwise, then push it with force. Turn the key back
and pull it out when the glass is rebounded.

Usage of the test tool
The test tool is used to keep continuity during
commissioning or maintenance when MCP is not
installed, so that cable test can be carried out easily
and make the circuit completed.
Back Box
Base
MCP Body
I+ I- O+ O-
To the next device
MCP
connected to a
.
Issue 1.02
Type F
3SZM
