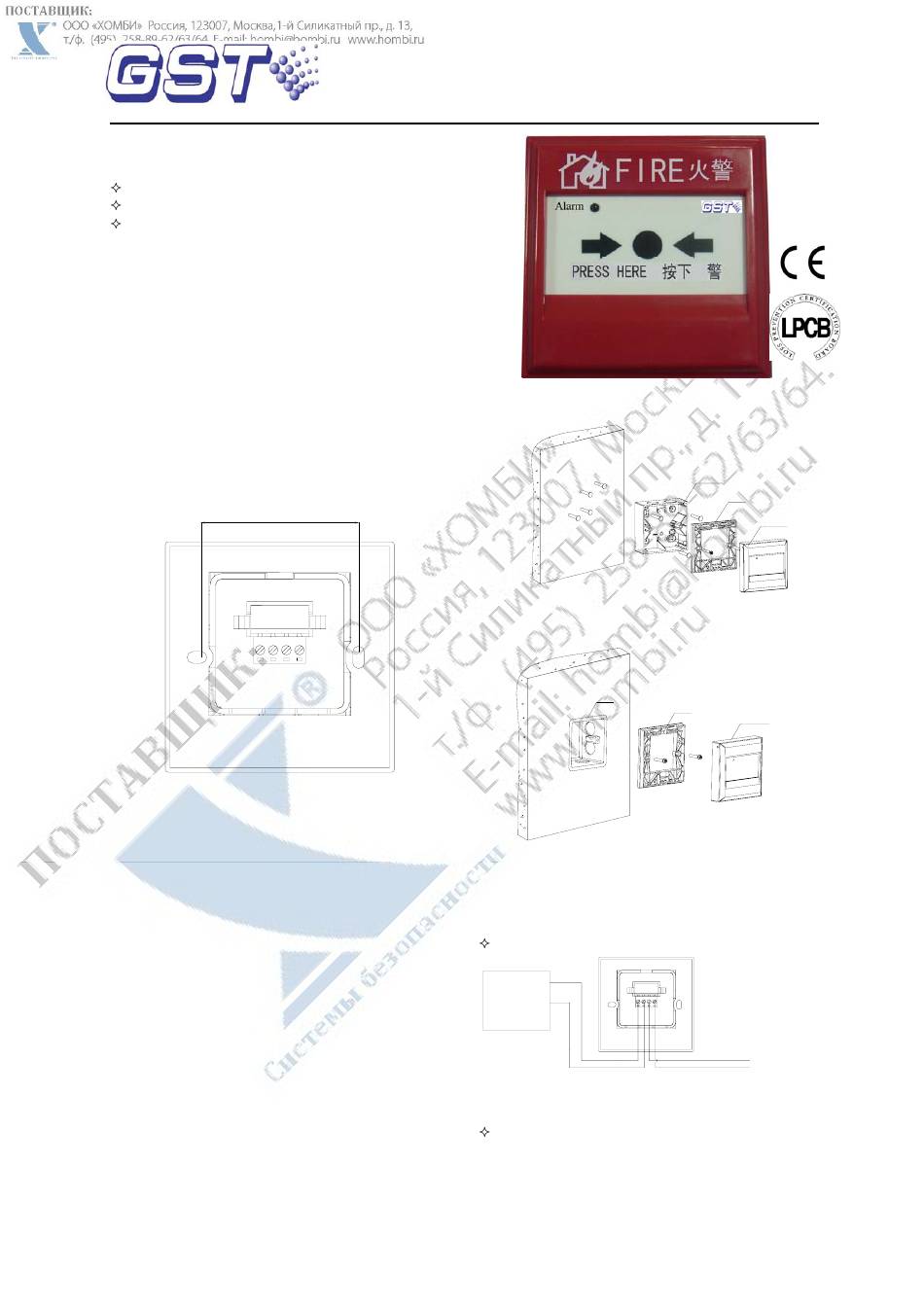

GST DC-9204 Quick Start Manual

The Intelligent Solution
Features
Alarming by pressing, reset by a special key
Plug-in structure
Designed to comply with EN 54-11
Description

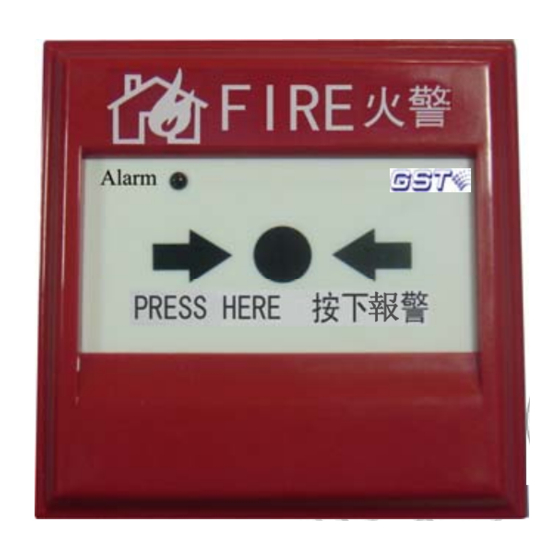

DC-9204 Innovation Manual Call Point (MCP) is
non-addressable. It alarms by the current caused by
pressing the action plate. It can be simply connected
to compatible conventional fire alarm system from
various manufacturers. This MCP is suitable for public
places. When there is fire, pressing the action plate on
this MCP can send alarm signal to compatible
conventional fire alarm control panel.
Connection and Cabling
Terminals on the MCP base are shown as Fig. 1.
I+, I-: Input signal, connecting with compatible control
panel or the previous MCP.
O+, O-: Output signal, connecting with the next MCP.
Recommended Wiring
2
0.5mm or above fire cable, subject to local codes.
Installation
The conduit can be surface mounted or flush
mounted.
Surface mounting:
First install the back box onto the wall using 4 screws,
then install the base onto the back box. Connect
cables to corresponding terminals as described above.
Hook the juts of the MCP body to the base, and then
press the part below the action plate to combine them
completely. Fig. 2 shows surface mounting.
Flush mounting:
Install the base onto the back box. Then combine the
enclosure and base the same as surface mounting.
Fig. 3 shows flush mounting.
30307503
E-MAIL: hombi@hombi.ru
60mm
I+ I- O+O-
Fig. 1
HTTP://GSTRU.RU
DC-9204
Innovation Manual Call Point
Fig. 2
Back Box
Fig. 3
Application
Application of the MCP is shown in Fig. 4.
Output+
Alarm Zone
I+ I- O+ O-
Output-
Compatible Fire Alarm
Control Panel
MCP
Fig. 4
Usage of the key
Vertically insert the key into the key-hole, then push it
with force and turn it clockwise. Turn the key back and
pull it out when the action plate is rebounded.
報
0832-CPD-0789
548g/03
Back Box
Base
MCP Body
Base
MCP Body
To the next device
Issue 1.01
HTTP://WWW.HOMBI.RU
