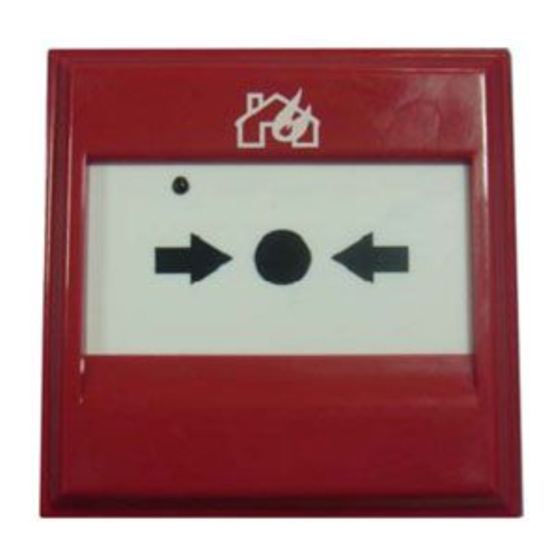

Digital manual call point

Advertisement

Quick Links

Features

Electronically addressed. The address can be
modified in field.
Alarm by pressing, reset by a special key.
Plug-in structure.
Standard: EN 54-11.

Description

Connecting to the loop of GST fire alarm system,
DI-9204E Digital Manual Call Point (MCP) is suitable
for public places. When there is a fire, pressing the
frangible element on this MCP can send fire signal to
fire alarm control panel. After receiving the signal, the
control panel will show address information of the
MCP and generate alarm sound.

Connection and Cabling

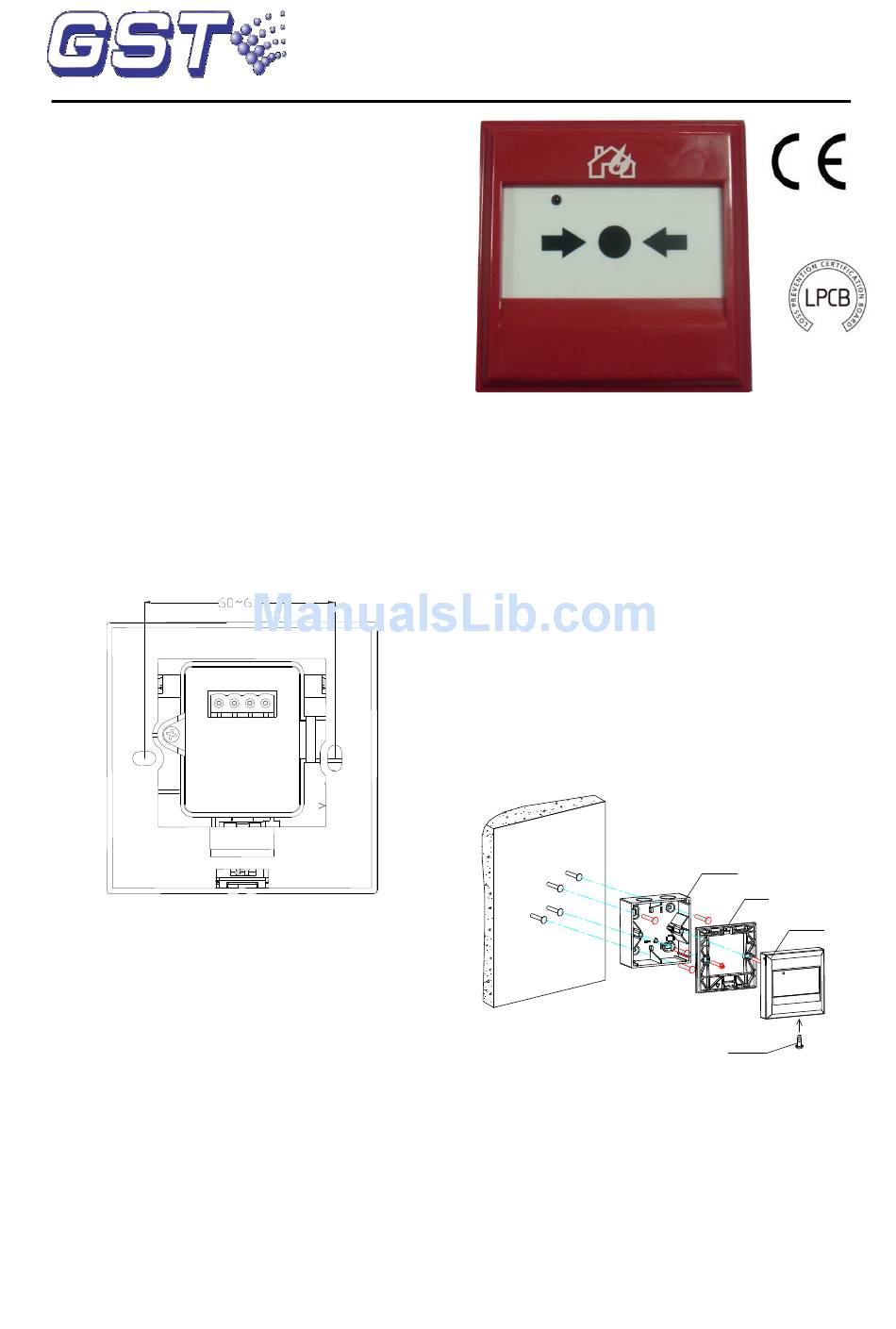

Terminals on the MCP base are shown as Fig. 1(unit:
mm).
Z1 Z2 Z1 Z2
Z1, Z2: Connecting with loop of the control panel,
polarity-insensitive.
Recommended Cabling
2
0.5mm
or above fire cable, subject to local codes.
30309264
Fig. 1
DI-9204E
Digital Manual Call Point

Installation

The MCP can be mounted in two ways: conduit
embedded and surface mounting.
Surface Mounting: First install the back box into the
wall using 4 screws, and then install the base onto the
back box. Connect cables to corresponding terminals
as described above. Hook the juts of the MCP body to
the base, and then press the part below the frangible
element to combine them completely, and then screw
the lock screw as shown in Fig. 2.
Conduit Embedded: First install the base onto the
back box, then connect the MCP body and the base
followed instructions above, then screw the lock screw
as shown in Fig. 3.
Fig. 2
0832-CPR-F0130
GST-0011-01
13
548g/08
Back Box
Base
MCP Body
Lock Screw
Issue 1.03
