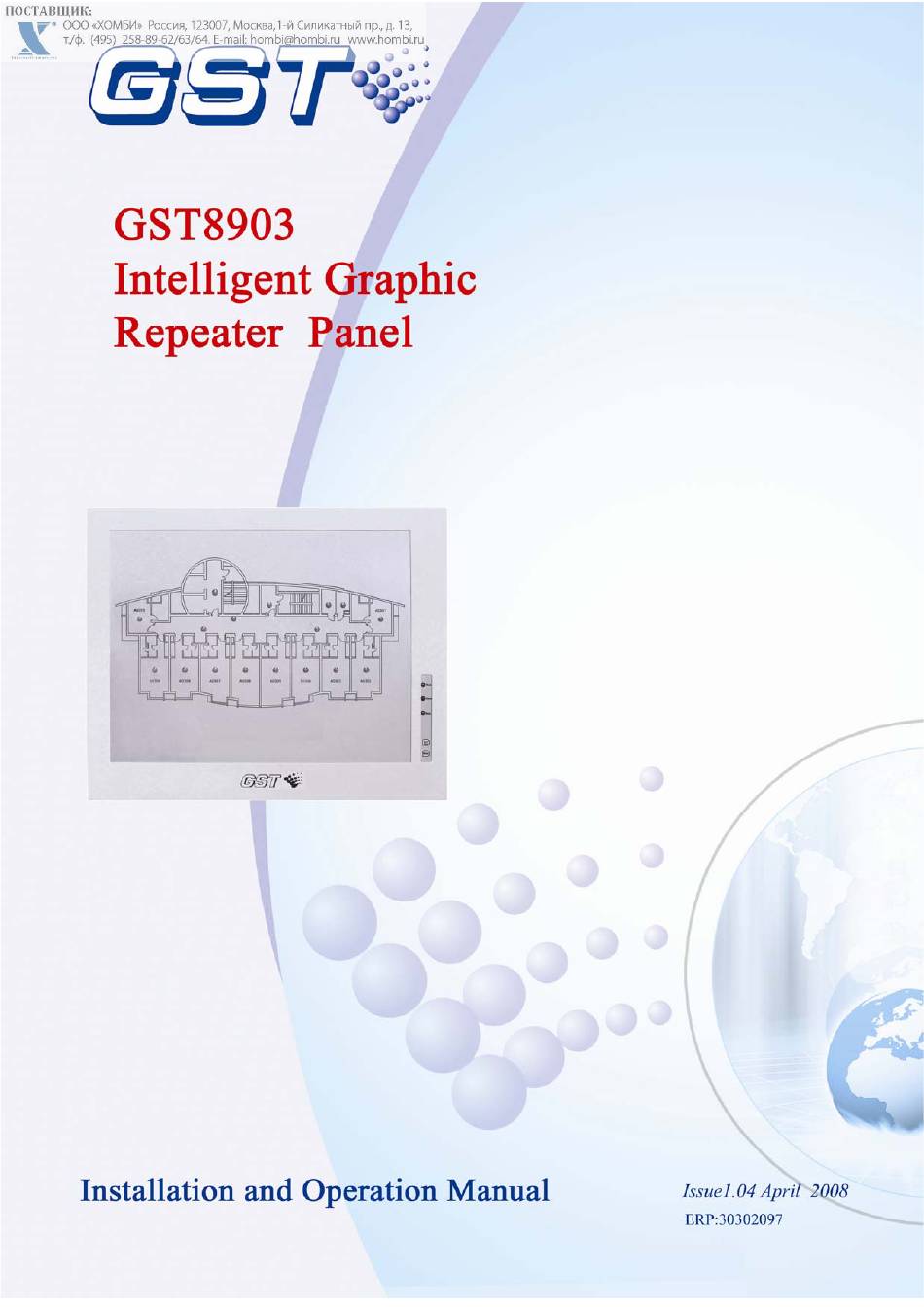

- Page 1 E-MAIL: hombi@hombi.ru HTTP://GSTRU.RU HTTP://WWW.HOMBI.RU...
-
Page 2: Table Of Contents
GST8903 Intelligent Graphic Repeater Panel Installation and Operation Manual The Intelligent Solution CONTENTS General ......................... 1 Features ........................ 1 Technical Specifications ..................1 Operation Principle....................1 Mounting and Commission..................1 Operation ......................4 VII Troubleshooting..................... 7 VIII Cautions ........................ 7 Appendix 1 Installation of the Mainboard .............. -
Page 3: I General
GST8903 Intelligent Graphic Repeater Panel Installation and Operation Manual The Intelligent Solution General GST8903 Intelligent Graphic Repeater Panel (hereafter called the repeater panel) is a fire alarm display unit used in buildings and fire control center. The host control panel in fire control center will give an alarm in case of fire taking place in the building;... - Page 4 GST8903 Intelligent Graphic Repeater Panel Installation and Operation Manual The Intelligent Solution 214±0.2 97±0.2 Mainboard Fig. 1 Mainboard Mounting of the LED Board Installation method is shown in Fig 2. See Appendix 2 and 6 for more information. 255±0.2 115±0.2 LED Board Fig.
- Page 5 GST8903 Intelligent Graphic Repeater Panel Installation and Operation Manual The Intelligent Solution Front panel of the repeater panel is shown in Fig. 4. Description of keys and indicators: Work: Lit when the repeater panel is working. Alarm: Red, Lit when detectors of any zone alarming fire. Mute: Yellow, Lit when the repeater panel is in mute state.
-
Page 6: Operation
GST8903 Intelligent Graphic Repeater Panel Installation and Operation Manual The Intelligent Solution Fix the repeater panel securely with bolts before wiring. Installation method is shown in Fig. 7. Intelligent Expansion Bolt Graphic M5X50 Repeater Panel Wiring Tube Fig. 7 Installation Terminals Terminals are shown in Fig. - Page 7 GST8903 Intelligent Graphic Repeater Panel Installation and Operation Manual The Intelligent Solution Shut down power supply and take off the two jumpers on Pin X1. Plug P-9910B to the socket XS1.Write-in the indicator number and code. Re-plug the two jumpers to Pin X1.
- Page 8 GST8903 Intelligent Graphic Repeater Panel Installation and Operation Manual The Intelligent Solution second and third digits represent zone number where the device is, the last three digits represent device number. For other models, the first three digits represent zone number where the detector locates and the last three digits represent the device number.
-
Page 9: Troubleshooting
GST8903 Intelligent Graphic Repeater Panel Installation and Operation Manual The Intelligent Solution VII Troubleshooting Common problems and solutions are shown in the table. Fault indication Possible Cause Solution No indication a. Power supply a. Check the 24V power panel condition. supply incorrect indication... -
Page 10: Appendix 1 Installation Of The Mainboard
GST8903 Intelligent Graphic Repeater Panel Installation and Operation Manual The Intelligent Solution Appendix 1 Installation of the Mainboard 214±0.2 97±0.2 Mainboard Weld Nut Box body 6-M3 Page 8 E-MAIL: hombi@hombi.ru HTTP://GSTRU.RU HTTP://WWW.HOMBI.RU... -
Page 11: Appendix 2 Installation Of The Led Board
GST8903 Intelligent Graphic Repeater Panel Installation and Operation Manual The Intelligent Solution Appendix 2 Installation of the LED Board 255±0.2 115±0.2 LED Board Ⅰ Weld nut Box Body 6-M3 Page 9 E-MAIL: hombi@hombi.ru HTTP://GSTRU.RU HTTP://WWW.HOMBI.RU... -
Page 12: Appendix 3 Installation Of The Membrane
GST8903 Intelligent Graphic Repeater Panel Installation and Operation Manual The Intelligent Solution Appendix 3 Installation of the Membrane （Remove keyboard） Ⅰ 4-R2 ＋ ＋ Through-hole Switch Panel -0.1 Weld nut Ⅰ M 6:1 Page 10 E-MAIL: hombi@hombi.ru HTTP://GSTRU.RU HTTP://WWW.HOMBI.RU... -
Page 13: Appendix 4 Installation Of The Buzzer
GST8903 Intelligent Graphic Repeater Panel Installation and Operation Manual The Intelligent Solution Appendix 4 Installation of the Buzzer Ⅰ buzzer Ⅰ Box Body Weld nut Page 11 E-MAIL: hombi@hombi.ru HTTP://GSTRU.RU HTTP://WWW.HOMBI.RU... -
Page 14: Appendix 5 Installation Of The Led
GST8903 Intelligent Graphic Repeater Panel Installation and Operation Manual The Intelligent Solution Appendix 5 Installation of the LED 1 2 3 4 Page 12 E-MAIL: hombi@hombi.ru HTTP://GSTRU.RU HTTP://WWW.HOMBI.RU... -
Page 15: Appendix 6 Configuration Of The Whole
GST8903 Intelligent Graphic Repeater Panel Installation and Operation Manual The Intelligent Solution Appendix 6 Configuration of the Whole Repeater Panel 下 下 下 雨棚 Second Floor 室 上 上 (remove box body) Direction A Notes ： Make memebrane according to plan of the floor ， Make enclosure according to membrane ，... -
Page 16: Appendix 7 Connection Of Repeater Panel
GST8903 Intelligent Graphic Repeater Panel Installation and Operation Manual The Intelligent Solution Appendix 7 Connection of Repeater Panel Switchboard Mainboard N Mainboard2 Mainboard1 Cut the lines Cut the lines between Pin 1 between Pin 1 of mainboards of mainboards + - + - HL97 HL98 HL99... -
Page 17: Appendix 8 Membrane Of Repeater Panel And Corresponding Led Number
GST8903 Intelligent Graphic Repeater Panel Installation and Operation Manual The Intelligent Solution Appendix 8 Membrane of Repeater Panel and Corresponding LED Number Membrane of Repeater Panel and The Corresponding LED Number (Stick the relevant drawing according to the project requirement) Page 15 E-MAIL: hombi@hombi.ru HTTP://GSTRU.RU... - Page 18 GST China Gulf Security Technology Co., Ltd. No. 80, Changjiang East Road, QETDZ, Qinhuangdao, Hebei, P. R. China 066004 Tel: +86 (0) 335 8502528 Fax: +86 (0) 335 8508942 Email: sales@gst.com.cn www.gst.com.cn GST UK Global System Technology PLC Lion Court, Staunton Harold Hall,...
