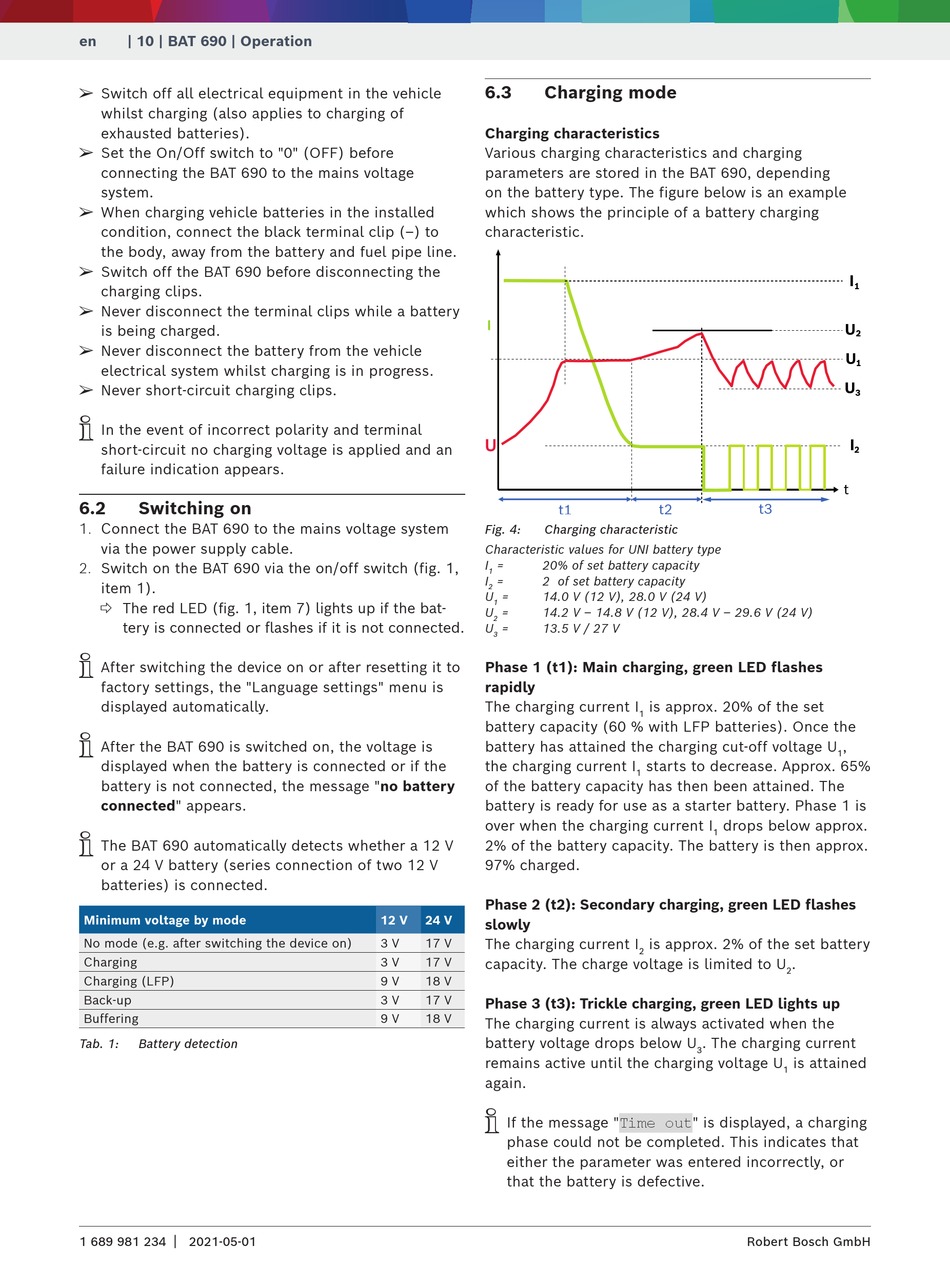

| 10 | BAT 690 | Operation
¶
Switch off all electrical equipment in the vehicle
whilst charging (also applies to charging of
exhausted batteries).
¶
Set the On/Off switch to "0" (OFF) before
connecting the BAT 690 to the mains voltage
system.
¶
When charging vehicle batteries in the installed
condition, connect the black terminal clip (‒) to
the body, away from the battery and fuel pipe line.
¶
Switch off the BAT 690 before disconnecting the
charging clips.
¶
Never disconnect the terminal clips while a battery
is being charged.
¶
Never disconnect the battery from the vehicle
electrical system whilst charging is in progress.
¶
Never short-circuit charging clips.
i
In the event of incorrect polarity and terminal
short-circuit no charging voltage is applied and an
failure indication appears.
6.2
Switching on
1. Connect the BAT 690 to the mains voltage system
via the power supply cable.
2. Switch on the BAT 690 via the on/off switch (fig. 1,
item 1).
The red LED (fig. 1, item 7) lights up if the bat-
tery is connected or flashes if it is not connected.
i
After switching the device on or after resetting it to
factory settings, the "Language settings" menu is
displayed automatically.
i
After the BAT 690 is switched on, the voltage is
displayed when the battery is connected or if the
battery is not connected, the message "no battery
connected" appears.
i
The BAT 690 automatically detects whether a 12 V
or a 24 V battery (series connection of two 12 V
batteries) is connected.
Minimum voltage by mode
No mode (e.g. after switching the device on)
Charging
Charging (LFP)
Back-up
Buffering
Tab. 1:
Battery detection
|
1 689 981 234
2021-05-01
6.3
Charging mode
Charging characteristics
Various charging characteristics and charging
parameters are stored in the BAT 690, depending
on the battery type. The figure below is an example
which shows the principle of a battery charging
characteristic.
I I
U
U
t1
Fig. 4:
Charging characteristic
Characteristic values for UNI battery type
I
=
20% of set battery capacity
1
I
=
2 of set battery capacity
2
U
=
14.0 V (12 V), 28.0 V (24 V)
1
U
=
14.2 V – 14.8 V (12 V), 28.4 V – 29.6 V (24 V)
2
U
=
13.5 V / 27 V
3
Phase 1 (t1): Main charging, green LED flashes
rapidly
The charging current I
battery capacity (60 % with LFP batteries). Once the
battery has attained the charging cut-off voltage U
the charging current I
of the battery capacity has then been attained. The
battery is ready for use as a starter battery. Phase 1 is
over when the charging current I
2% of the battery capacity. The battery is then approx.
97% charged.
Phase 2 (t2): Secondary charging, green LED flashes
12 V
24 V
slowly
3 V
17 V
The charging current I
3 V
17 V
capacity. The charge voltage is limited to U
9 V
18 V
3 V
17 V
Phase 3 (t3): Trickle charging, green LED lights up
9 V
18 V
The charging current is always activated when the
battery voltage drops below U
remains active until the charging voltage U
again.
i
If the message "
phase could not be completed. This indicates that
either the parameter was entered incorrectly, or
that the battery is defective.
t2
t3
is approx. 20% of the set
1
starts to decrease. Approx. 65%
1
drops below approx.
1
is approx. 2% of the set battery
2
.
2
. The charging current
3
is attained
1
Time out
" is displayed, a charging
Robert Bosch GmbH
I
1
U
2
U
1
U
3
I
2
t
,
1
