Item # 1001 869 481
1001 869 484
Model # FCM70366CS-2PK
FCM70366CS-W-2P
USE AND CARE GUIDE

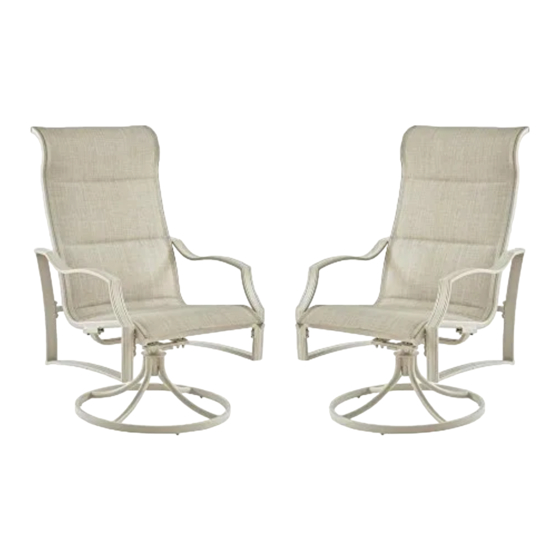

STATESVILLE ALUMINUM SLING LOUNGE SWIVEL CHAIR 2PK
Questions, problems, missing parts? Before returning to the store
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of these chairs. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY STATESVILLE FCM70366CS-2PK
Summary of Contents for HAMPTON BAY STATESVILLE FCM70366CS-2PK
- Page 1 THANK YOU We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of these chairs. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............3 Product Caution ..............2 Safety Warnings ..............2 Package Contents ..............4 Assembly ............... 5 Warranty ................ -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Chair bucket Left arm Right arm Support bar Connection bar Swivel base... -
Page 5: Assembly
Assembly Connecting the support bar to the chair bucket Place the chair bucket (A) upside down on a soft surface. Attach the support bar (D) to the chair bucket (A) using M8x20 combination bolts (CC), as shown below. NOTE : Loosely tighten all bolts using the wrench (EE). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance. - Page 6 Assembly (continued) Connecting the right arm to the chair bucket Attach the right arm (C) to the chair bucket (A) using M6x30 combination bolts (AA), as shown below. NOTE : Loosely tighten all bolts using the hex wrench (DD).
- Page 7 Assembly (continued) Connecting the left arm to the chair bucket Attach the left arm (B) to the chair bucket (A) using M6x30 combination bolts (AA), as shown below. NOTE : Loosely tighten all bolts using the hex wrench (DD). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
- Page 8 Assembly (continued) Connecting the connection bars to the arms Attach the connection bars (E) to the left arm (B) and right arm (C) using M6x15 combination bolts (BB). NOTE : Loosely tighten all bolts using the hex wrench (DD).
- Page 9 Assembly (continued) Tightening all bolts and connecting the support bar to the swivel base Once all bolts are in place, fully tighten all bolts including screws preassembled by factory. Insert the support bar (D) into the swivel base (F). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
-
Page 10: Care And Cleaning
Assembly (continued) Checking the chairs Ensure all connections are secure before use. Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach, or solvents. - Page 11 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
