Item # 0000 000 000
Model # FCS60610RD-2PK

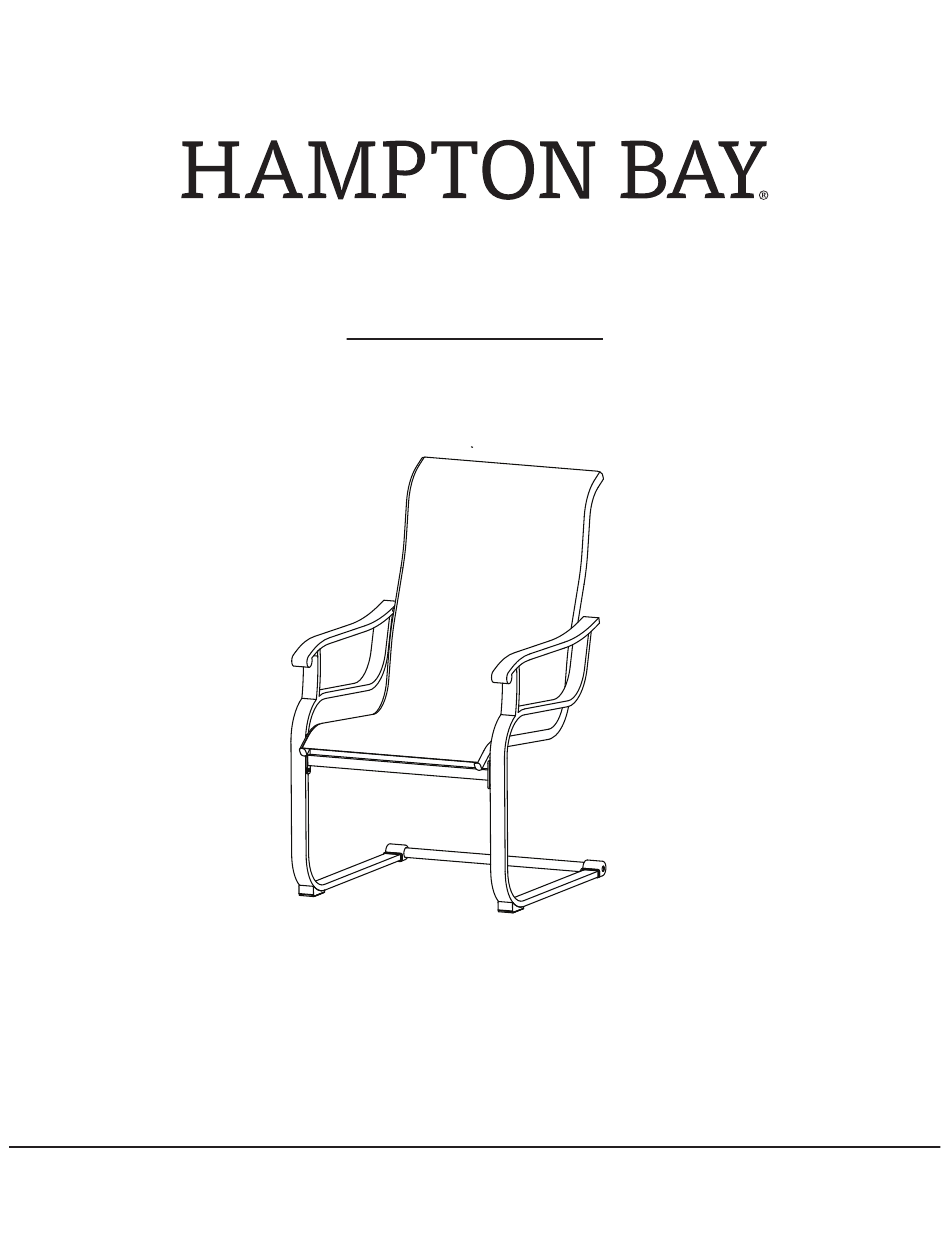

USE AND CARE GUIDE

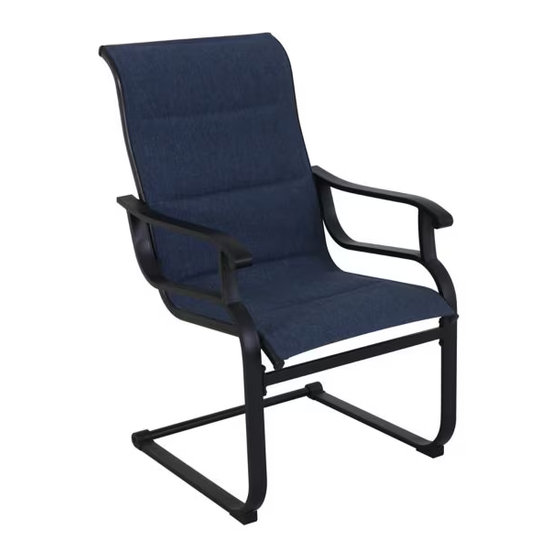

SLATEFORD DINING CHAIR - 2 PK
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of these chairs. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY FCS60610RD-2PK
Summary of Contents for HAMPTON BAY FCS60610RD-2PK
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of these chairs. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents........2 Pre-Assembly. -
Page 3: Warranty
Warranty 2 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. -
Page 4: Hardware Included
Pre-Assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x15 Combination Bolt M6x30 Combination Bolt M6x25 Bolt Hex Wrench PACKAGE CONTENTS Part Description Quantity Sling Bucket Right Arm Left Arm Connector Bar Support Bar... -
Page 5: Assembly
Assembly Connecting The Sling Bucket, Connector Bar And Support Bar To The Right Arm Place the right arm (B) on a soft surface. Attach the sling bucket (A) to the right arm (B) using M6x30 combination bolts (BB). Attach the connector bar (D) to the right arm (B) using M6x15 combination bolts (AA). Insert the support bar (E) to the right arm (B). - Page 6 Assembly (continued) Securing The Support Bar Turn the chair right side up. Tighten the support bar (E) to the two chair arms (B & C) using M6x25 bolts (CC). Do not tighten all bolts at this step. NOTE: Loosely tighten all the bolts using the hex wrench (DD). Tightening All Bolts Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (DD).
-
Page 7: Care And Cleaning
Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach or solvents. Store the chairs in a dry sheltered place when not in use. Keep the chairs out of fire, extreme heat, freezing conditions, and inclement weather such as rain, hail, sleet, snow, or wind. - Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. For certification use only...
