Item # 1001 186 714
Model # FCS70357-ST-1
USE AND CARE GUIDE

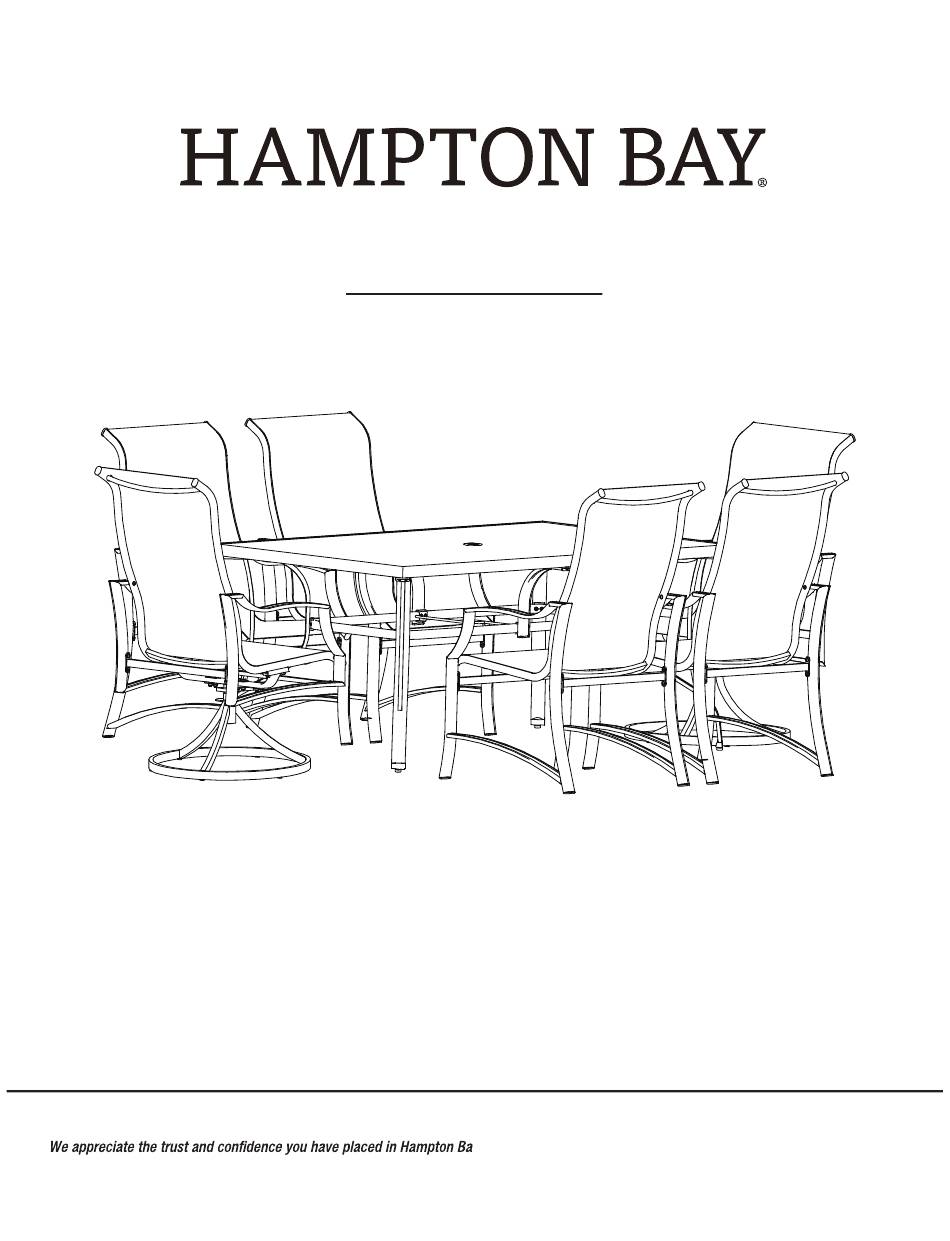

STATESVILLE 7-PIECE PADDED SLING DINING SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
y through the purchase of this dining set. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STATESVILLE FCS70357-ST-1 and is the answer not in the manual?

Questions and answers

Related Manuals for HAMPTON BAY STATESVILLE FCS70357-ST-1

Summary of Contents for HAMPTON BAY STATESVILLE FCS70357-ST-1

  • Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Pre-Assembly ..............3 . . . Planning Assembly ..............3 Important Safety Instructions ........2 Hardware Included ..............3 Save These Instructions ............2 Stationary Chair Package Contents ......... 4 Read All Instructions Before Use ...

  • Page 3: Warranty

    Warranty 2 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center.

  • Page 4: Stationary Chair Package Contents

    Pre-Assembly (continued) STATIONARY CHAIR PACKAGE CONTENTS Part Description Quantity Chair ucket Left arm Right arm Connection bar...

  • Page 5: Swivel Chair Package Contents

    Pre-Assembly (continued) SWIVEL CHAIR PACKAGE CO Part Description Quantity Connection bar Swivel chair bucket Left swivel chair arm Right swivel chair arm Support bar Swivel base HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 6 Pre-Assembly (continued) TABLE PACKAGE CONTE Part Description Quantity Table top Table leg tube...

  • Page 7: Stationary Chair Assembly

    Stationary Chair Assembly Connecting the right arm to the chair bucket Place the chair bucket (A) on a soft surface. Attach the right arm (C) to the chair bucket (A) using M6x30 combination bolt (AA) and M8x30 combination hex bolt (EE). NOTE : Loosely tighten all the bolts using the hex wrench (FF) and wrench (GG).
  • Page 8 Stationary Chair Assembly (continued) Connecting the left arm to the chair bucket Attach the left arm (B) to the chair bucket (A) using M6x30 combination bolt (AA) and M8x30 combination hex bolt (EE). NOTE : Loosely tighten all the bolts using the hex wrench (FF) and wrench (GG).
  • Page 9 Stationary Chair Assembly (continued) Attaching the connection bars to the arms Attach the connection bars (D) to the left and the right arms (B & C) using M6x15 combination bolts (CC). NOTE : Loosely tighten all the bolts using the hex wrench (FF). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 10 Stationary Chair Assembly (continued) Tightening the bolts Once all of the bolts are in place, fully tighten the bolts. Turn the chair right side up. Ensure the chair is tightly assembled and stable before use.

  • Page 11: Swivel Chair Assembly

    Swivel Chair Assembly Connecting the support bar to the swivel chair bucket Place the swivel chair bucket (E) upside down on a soft surface. Attach the support bar (H) to the bottom of the swivel chair bucket (E) using M8x20 combination bolts (DD). NOTE : Loosely tighten all the bolts using the wrench (GG).
  • Page 12 Swivel Chair Assembly (continued) Connecting the left swivel chair arm to the swivel chair bucket Attach the left swivel chair arm (F) to the swivel chair bucket (E) using M6x30 combination bolts (AA). NOTE : Loosely tighten all the bolts using the hex wrench (FF).
  • Page 13 Swivel Chair Assembly (continued) Connecting the right swivel chair arm to the swivel chair bucket Attach the right swivel chair arm (G) to the swivel chair bucket (E) using M6x30 combination bolts (AA). NOTE : Loosely tighten all the bolts using the hex wrench (FF). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 14 Swivel Chair Assembly (continued) Attaching the connection bars to the swivel chair arms Attach the connection bars (D) to the left and the right swivel chair arms (F & G) using M6x15 combination bolts (CC). NOTE : Loosely tighten all the bolts using the hex wrench (FF).
  • Page 15 Swivel Chair Assembly (continued) Tightening all bolts, connecting the support bar to the swivel base Turn the chair right side up. Once all of the bolts are in place, fully tighten the bolts. Insert the support bar (H) into the swivel base (I). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 16 Swivel Chair Assembly (continued) Checking the chairs Ensure all connections are secure before use.
  • Page 17 Table Assembly Attaching the table legs and the support tubes to the table top Place the table top (J) upside down on a soft surface. Attach the table legs (K) and the support tubes (L) to the table top (J) using M6x15 combination bolts (CC). NOTE : Loosely tighten all the bolts using the hex wrench (FF).
  • Page 18 Table Assembly (continued) Attaching the leg connector to the table legs and the support tubes Attach the leg connector (M) to the table legs (K) and the support tubes (L) using M6x25 combination bolts (BB). NOTE : Loosely tighten all the bolts using the hex wrench (FF).

  • Page 19: Care And Cleaning

    Table Assembly (continued) Tightening the bolts Once all of the bolts are in place, fully tighten the bolts. Turn the table right side up. Ensure all connections are secure before use. Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 20 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. Factory swivel chair ID # FCS70357CS...
