Item #140 852
FCS60610R-ST1
USE AND CARE GUIDE

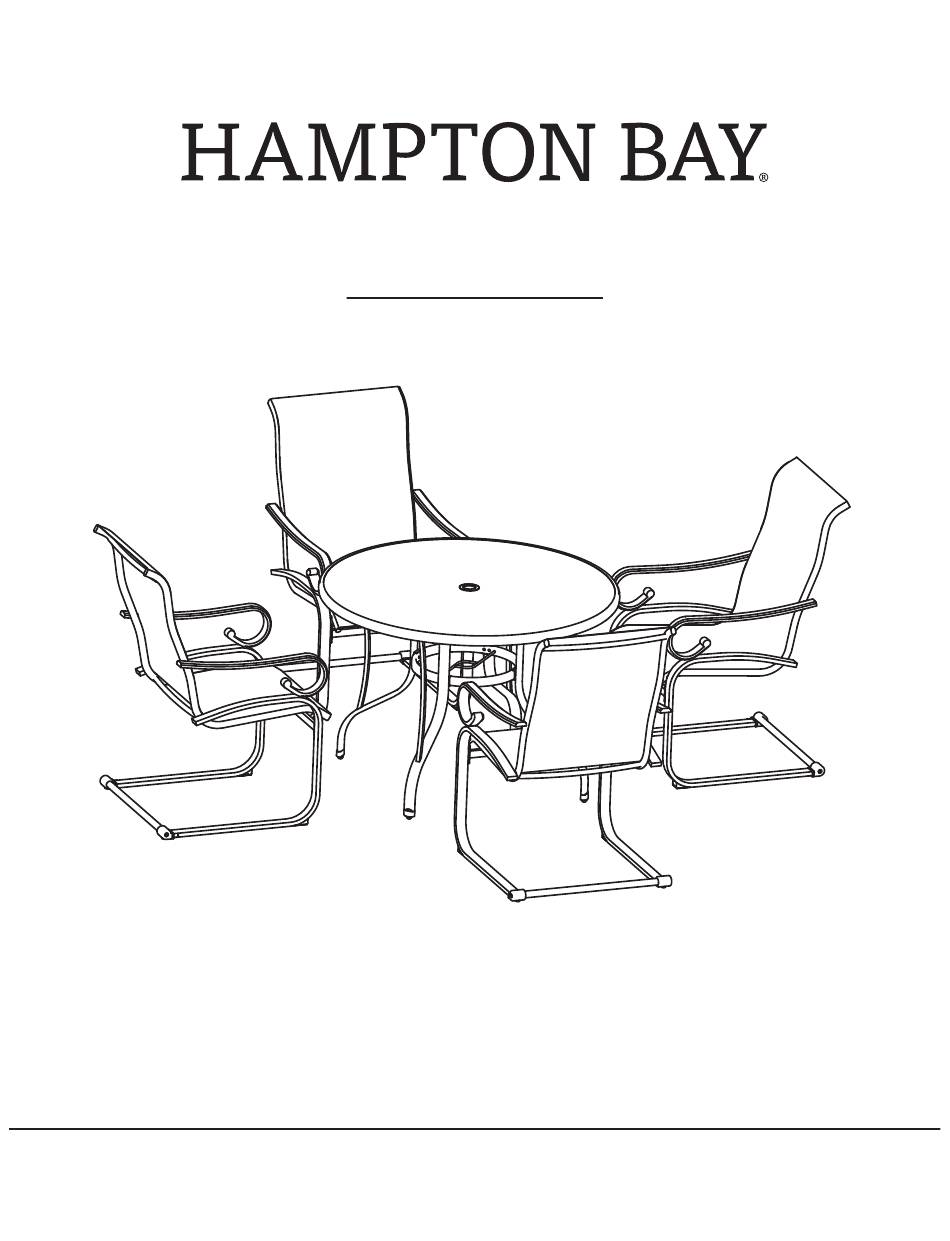

5PC SLING PADDED DINING SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
01-800-00-46633
HOMEDEPOT.COM.MX
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually
create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY FCS60610R-ST1
Summary of Contents for HAMPTON BAY FCS60610R-ST1
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents........2 Pre-Assembly. -
Page 3: Warranty
Warranty 2 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. -
Page 4: Hardware Included
Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x15 Combination Bolt 16+1 M6x30 Combination Bolt 24+1 M6x25 Bolt M6x25 Combination Bolt ST4.8x12 Screw Hex Wrench CHAIR PACKAGE CONTENTS Part Description Quantity Chair Bucket Right Arm Left Arm Connector Bar Support Bar... - Page 5 Pre-assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table Top Table Leg Leg Connector HOMEDEPOT.COM.MX Please contact 01-800-00-46633 for further assistance.
-
Page 6: Chair Assembly
Chair Assembly Connecting The Chair Bucket, Connector Bar And Support Bar To The Right Arm Place the right arm (B) on a soft surface. Attach the chair bucket (A) to the right arm (B) using M6x30 combination bolts (BB). Attach the connector bar (D) to the right arm (B) using M6 x15 combination bolts (AA). Insert the support bar (E) into the right arm (B). - Page 7 Chair Assembly (continued) Securing The Support Bar Turn the chair right side up. Tighten the support bar (E) to the two arms (B & C) using M6 x25 bolts (CC). Do not tighten the bolts at this step. Tightening All Bolts Once all of the bolts are in place, fully tighten the bolts using the hex wrench (FF).
- Page 8 Table Assembly Attaching The Table Leg To The Table Top Place the table top (F) upside down on a soft surface. Attach the table legs (G) to the table top (F) as shown below. Attaching The Leg Connector To The Table Legs Attach the leg connector (H) to the table legs (G) using M6x25 combination bolts (DD).
-
Page 9: Care And Cleaning
Table Assembly (continued) Secure And Tightening The Bolts Secure the table legs (G) to the table top (F) using ST4.8X12 screws (EE). Once all bolts are in place, fully tighten the bolts. Turn the table right side up. Ensure all connections are secure before use. Care Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. - Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 01-800-00-46633 HOMEDEPOT.COM.MX Retain this manual for future use. For certification use only...
