Item # 1002 691 862, 1002 691 863
1002 712 382, 1002 712 381
Model # FCM70357CHS-ST
Model # FCM70357CHS-STW
USE AND CARE GUIDE

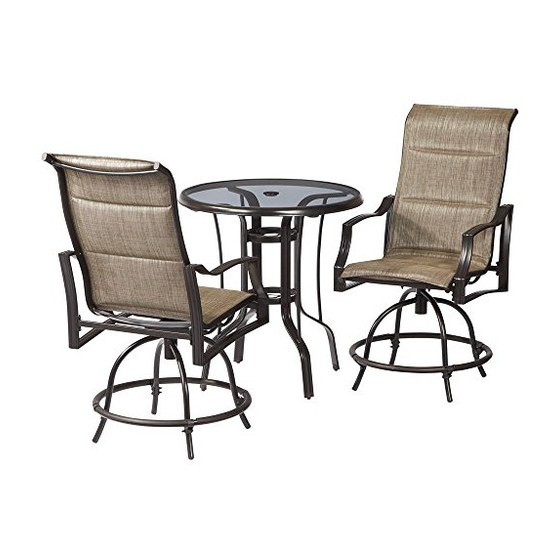

STATESVILLE ALUMINUM 3PC HIGH SWIVEL DINING SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
y through the purchase of this bistro set. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY FCM70357CHS-ST
Summary of Contents for HAMPTON BAY FCM70357CHS-ST
- Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............3 Product Caution ..............2 Safety Warnings ..............2 Chair Package Contents ............4 Table Package Contents ............5 Warranty ................ -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 4: Chair Package Contents
Pre-Assembly (continued) CHAIR PACKAGE CONTENTS Part Description Quantity Chair bucket Left arm Right arm Connect bar Chair base... - Page 5 Pre-Assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table top Leg connector Table leg HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
-
Page 6: Chair Assembly
Chair Assembly CONNECTING THE RIGHT ARM TO THE CHAIR BUCKET Place the chair bucket (A) upside down on a soft surface. Attach the right arm (C) to the chair bucket (A) using M6x30 combination bolts (BB). NOTE: Loosely tighten all bolts using the hex wrench (HH). - Page 7 Chair Assembly (continued) CONNECTING THE LEFT ARM TO THE CHAIR BUCKET Attach the left arm (B) to the chair bucket (A) using M6X30 combination bolts (BB). NOTE: Loosely tighten all bolts using the hex wrench (HH). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
- Page 8 Chair Assembly (continued) CONNECTING THE CONNECT BARS TO THE CHAIR ARMS Attach the connect bars (D) to the left arm (B) and the right arm (C) using M6X15 combination bolts (AA). NOTE: Loosely tighten all bolts using the hex wrench (HH).
- Page 9 Chair Assembly (continued) CONNECTING THE CHAIR BASE TO THE CHAIR BUCKET Attach the chair base (E) to the chair bucket (A) by inserting M8x35 combination bolts (DD), through the chair bucket (A), the chair base (E), M8 washers (FF), M8 spring washers (EE) into M8 nuts (GG). Once all of the bolts are in place, fully tighten the bolts.
- Page 10 Chair Assembly (continued) CHECKING THE CHAIR Ensure all connections are secure before use.
- Page 11 Table Assembly ATTACHING THE TABLE LEGS TO THE TABLE TOP Place the table top (F) upside down on a soft surface. Attach the table legs (H) to the table top (F) using M6X15 combination bolts (AA). NOTE: Loosely tighten all bolts using the hex wrench (HH). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
- Page 12 Table Assembly (continued) ATTACHING THE LEG CONNECTORS TO THE TABLE LEGS Attach the leg connectors (G) to the table legs (H) using M6x25 combination bolts (CC). Once all of the bolts are in place, fully tighten all the bolts. Note: Asssemble this connector rst.
-
Page 13: Care And Cleaning
Table Assembly (continued) CHECKING THE TABLE Turn the table right side up. Ensure all connections are secure before use. Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. - Page 14 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
