Coating Atomization Technologies P.O. Box 17820, Boulder CO 80308 (888) 820-4498 Fax (303) 438-5708
Jaguar 100 Series
# 2
$

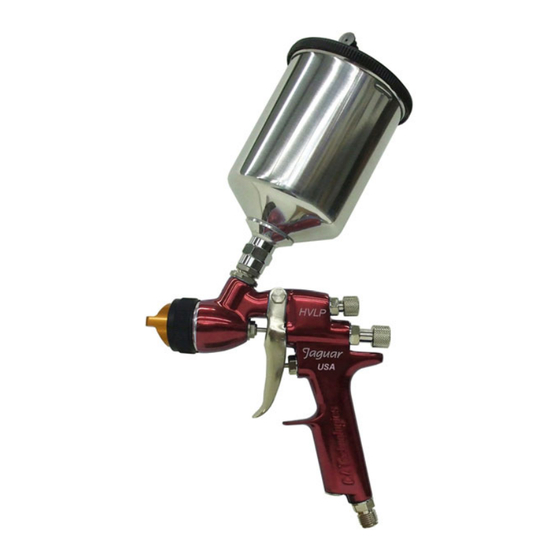

GRAVITY FEED SPRAY GUN
3
4$ "+,,
www.sprayCAT.com
PRODUCT INFORMATION
! ""#$"
! ""#$"
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for C.A. Technologies Jaguar 100 Series
Summary of Contents for C.A. Technologies Jaguar 100 Series
- Page 1 Jaguar 100 Series GRAVITY FEED SPRAY GUN PRODUCT INFORMATION ! ""#$"...
- Page 2 Operation and Maintenance Instructions for Jaguar Gravity Spray Guns Operation 1. Connect air supply hose at handle of gun. 5/16” air hose x 25 ft. max. length is recommended. Also, only use CAT high flow quick disconnects and avoid using any restrictive fittings for the air supply to the gun.
- Page 3 HVLP AIR CAP TEST GAUGES 21-1090-G 21-1092-G J100H GUNS 21-1093-G 21-1095-G 21-1097-G 21-1195-G 21-1197-G ITEM NO. PART NO. DESCRIPTION ITEM NO. PART NO. DESCRIPTION See Air Cap Chart Air Cap* 60-1400 Needle Seal Cartridge** See Air Cap Chart Fluid Tip* 60-1033 Trigger Pivot Screw s 31-1201 (HVLP)
- Page 4 FLUID NOZZLE / AIR CAP SELECTION CHARTS Jaguar 100 Series - Gravity Feed Spray Guns Orifice MATERIAL TYPE Air Cap HVLP Air Cap CONVENTIONAL Size 21-1093 18 psi @ 10 cfm 21-2466 50 psi @ 15 cfm Filler Primer/ Washprimer/Epoxy 1.4-1.7...
