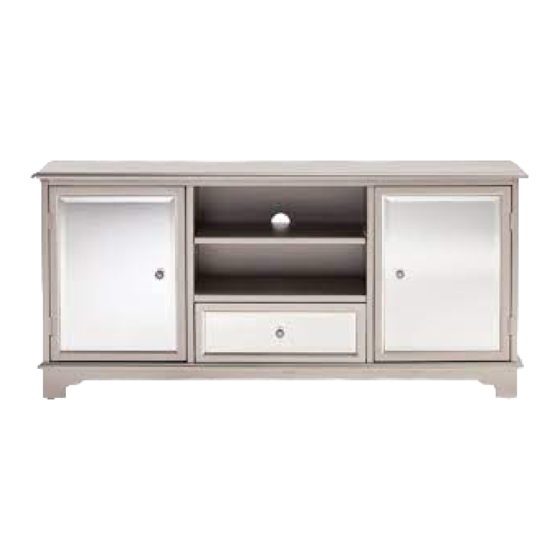

- Page 1 MS915800TX For assistance with assembly contact: Mirage TV/ Media Stand- Silver Southern Enterprises, Inc. Customer Service 1-800-633-5096 service@seidal.com ASSEMBLY INSTRUCTION www.seidal.com PO#： Page1...
-
Page 2: Parts List
Mirage TV/Media Stand Parts list Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing. Before beginning assembly, carefully study the diagrams below and sort your hardware according to the pictures. - Page 3 Quantity Quantity Quantity of 1 of 1 of 2 bottom back panel side adjustable shelf middle adjustable shelf Quantity Quantity of 1 of 1 left door right door Quantity Quantity Quantity of 26 of 22 of 14 cam lock wood dowel cam bolt Quantity Quantity...
- Page 4 Quantity Quantity Quantity of 12 of 3 of 26 screw (for hinge and Magnet) plastic washer sticker cover Dia1/8”x1/2”L Quantity Quantity of 4 of 4 Cam lock Care and Cleaning Instructions: For replacement parts or questions, please Before using, wipe with a clean, dry cloth. Call Customer Service at 1-800-633-5096 Periodically apply furniture wax to renew the finish.
- Page 5 Mirage TV/Media Stand Assembly Instructions Insert cam locks (2) into holes on fixed shelf (F). Screw cam bolts (1) into holes on left vertical panel (D) and right vertical panel (E). Attach left vertical panel (D) and right vertical panel (E) to fixed shelf panel (F) by inserting wood dowels (3) and cam bolts (1)into corresponding holes until side...
- Page 6 Attach front rail (I) by inserting wood dowels (3) into holes on front rail (I). Insert cam locks (2) into holes on front rail (I). Screw cam bolts (1) into holes on left side panel (B) and right side panel (C). Attach left side panel (B) and right side panel (C) to front rail (I) by inserting wood dowels (3) and...
- Page 7 Insert cam locks (2) into holes on assembled unit. Screw cam bolts (1) into holes on top panel (A). Attach top panel (A) to assembled unit on by inserting wood dowels (3) and cam bolts (1) into corresponding holes until top panel (A) and assembled unit meet.
- Page 8 Insert nut (13) into hole on drawer back panel (M),attach right drawer side panel (L) and left drawer side panel (K) to drawer back panel (M) with machine screws (5). Tighten screws (5) with phillips screwdriver. Slide drawer bottom panel (N) into the grooves of right drawer side panel (L), left drawer side panel (K), and drawer back panel...
- Page 9 Attach top back panel (O) and bottom back panel (P) to assembled unit with screws (4). Tighten screws (4) with phillips screwdriver. Figure 5 Attach magnet (6) to assembled unit with screws (10). Attach left door (S) and right door (T) to assembled unit on with screws (10).
- Page 10 Place adjustable shelves (R) and (Q) onto shelf pins as shown. Attach drawer into assembled unit. Make sure drawer smoothly slides into side panel’s female slides. Figure 7 Your Mirage TV/media stand is ready to use. Figure 8 Page 10...
-
Page 11: Parts Replacement Form
Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product. - Page 12 CAUTION The top shelf is intended for a flat screen television with a maximum overall width of 50” and supports up to 175 The top shelf is NOT INTENDED for tube televisions. Each center shelf should not be loaded with more than 20 lb. Each side shelf should not be loaded with more than 15 lb.
