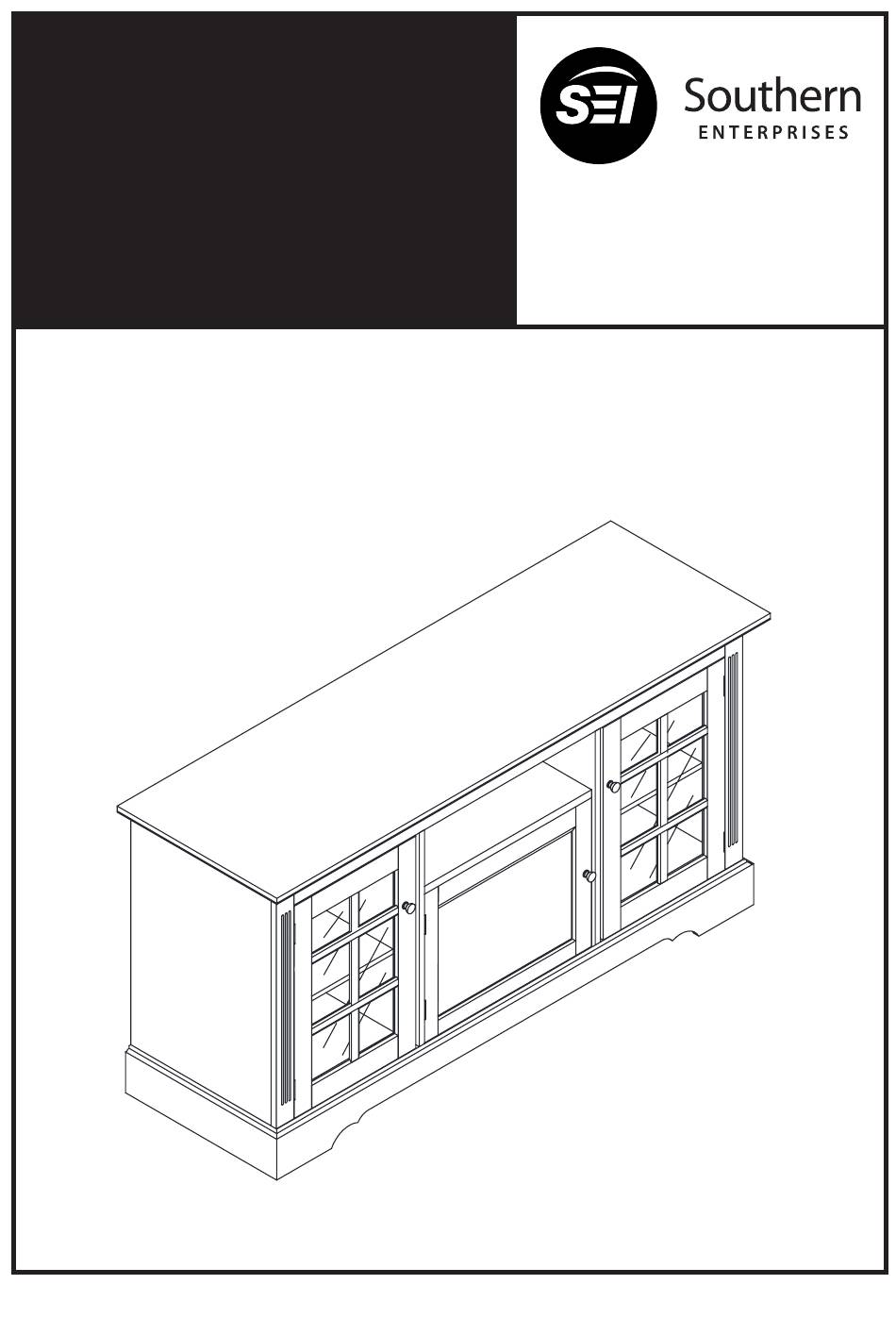

- Page 1 MS904700TX/4800TX TV Media Stand- Cullerton Black/ For assistance with assembly contact: Off White Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com www.seidal.com...
- Page 2 MS904700TX/4800TX TV Media Stand- Cullerton Black/ Off White Assembly Instructions Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage.
- Page 3 MS904700TX/4800TX TV Media Stand- Cullerton Black/ For assistance with assembly contact: Off White Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com www.seidal.com PARTS LIST: DESCRIPTION DESCRIPTION Bottom Panel Right Side Back Panel Base Support Center Upper Back Panel Middle Left Panel...
- Page 4 MS904700TX/4800TX TV Media Stand- Cullerton Black/ Off White Assembly Instructions Step 1: Insert wood dowels (a) into the bottom base (A). Join the base support (B) and the bottom base (A) with screws (c) as shown in Figure 1. Step 2:...
- Page 5 MS904700TX/4800TX TV Media Stand- Cullerton Black/ Off White Assembly Instructions Step 1: Assemble the middle left and right panels (C) and (D) and the center divider (E) using wood dowels (a). Tighten cam lock dowels (b) with cam locks (d) from the pre-drilled hole as shown in Figure 2.
- Page 6 MS904700TX/4800TX TV Media Stand- Cullerton Black/ Off White Assembly Instructions Step 1: Join the front cross brace (I) to the top panel (H) using wood dowels (a), and tighten using screws (c). Insert cam lock dowels (b) into the top...
- Page 7 MS904700TX/4800TX TV Media Stand- Cullerton Black/ Off White Assembly Instructions Step 1: Tighten the back panels (K) (L) (M) (J) to the assembly using screws (e) through the metal plate (f) as shown in Figure 4. Figure 4...
- Page 8 MS904700TX/4800TX TV Media Stand- Cullerton Black/ Off White Assembly Instructions Step 1: Insert the pins (g) at the desired position and place the adjustable shelves (N) above the pins as shown in Figure 5. Step 2: Tighten the door panels (O)
- Page 9 CAUTION The top shelf is intended for a flat screen television with a maximum overall width of 50” and supports up to 175 lb. The top shelf is NOT INTENDED for tube televisions. Each center shelf should not be loaded with more than 20 lb. Each side shelf should not be loaded with more than 15 lb.
-
Page 10: Parts Replacement Form
Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
