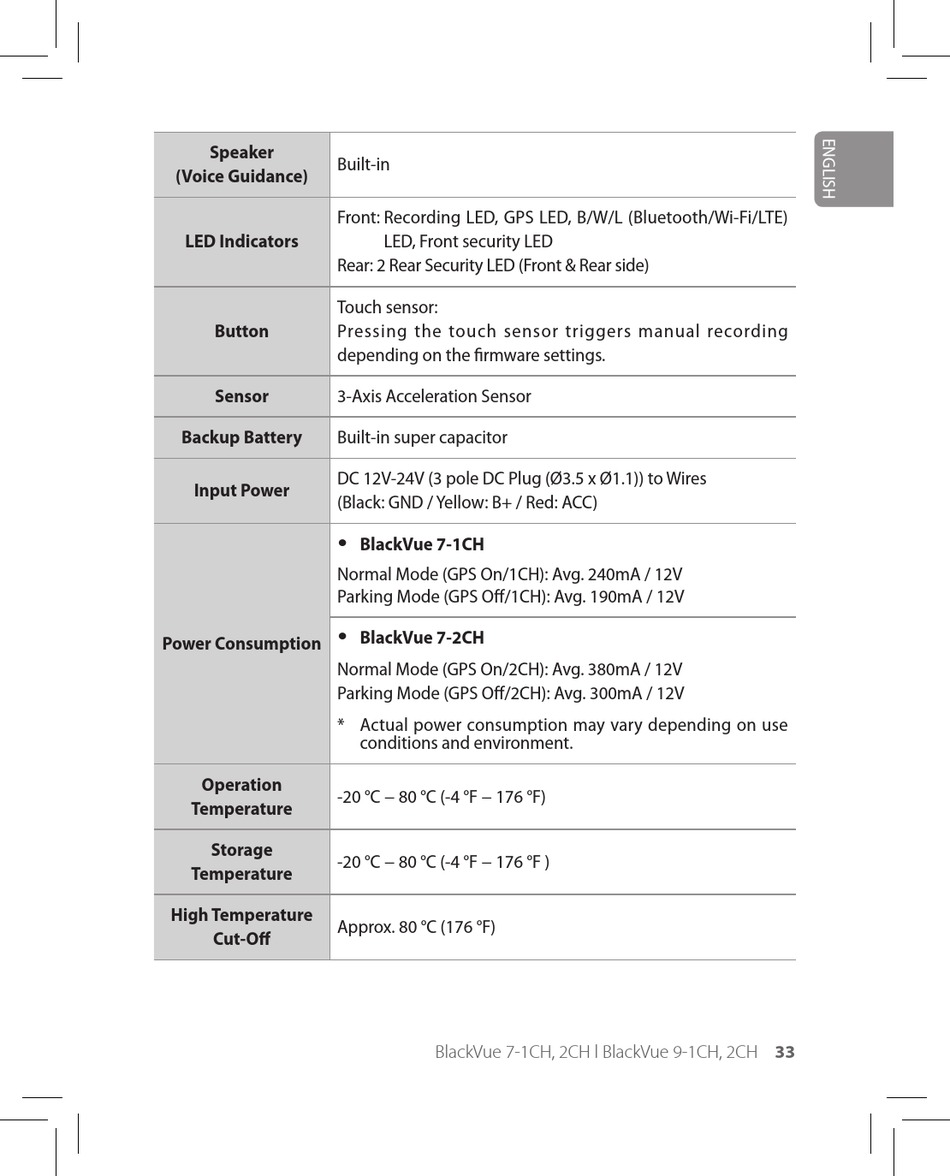

Pittasoft BlackVue 7-1CH Quick Start Manual page 33

Speaker
Built-in
(Voice Guidance)
Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE)
LED Indicators
Rear: 2 Rear Security LED (Front & Rear side)
Touch sensor:
Button Pressing the touch sensor triggers manual recording
depending on the firmware settings.
Sensor
3-Axis Acceleration Sensor
Backup Battery
Built-in super capacitor
DC 12V-24V (3 pole DC Plug (Ø3.5 x Ø1.1)) to Wires
Input Power
(Black: GND / Yellow: B+ / Red: ACC)
y BlackVue 7-1CH
Normal Mode (GPS On/1CH): Avg. 240mA / 12V
Parking Mode (GPS Off/1CH): Avg. 190mA / 12V
y BlackVue 7-2CH
Power Consumption
Normal Mode (GPS On/2CH): Avg. 380mA / 12V
Parking Mode (GPS Off/2CH): Avg. 300mA / 12V
* Actual power consumption may vary depending on use
Operation
-20 °C − 80 °C (-4 °F − 176 °F)
Temperature
Storage
-20 °C − 80 °C (-4 °F − 176 °F )
Temperature
High Temperature
Approx. 80 °C (176 °F)
Cut-Off
LED, Front security LED
conditions and environment.
BlackVue 7-1CH, 2CH l BlackVue 9-1CH, 2CH 33
