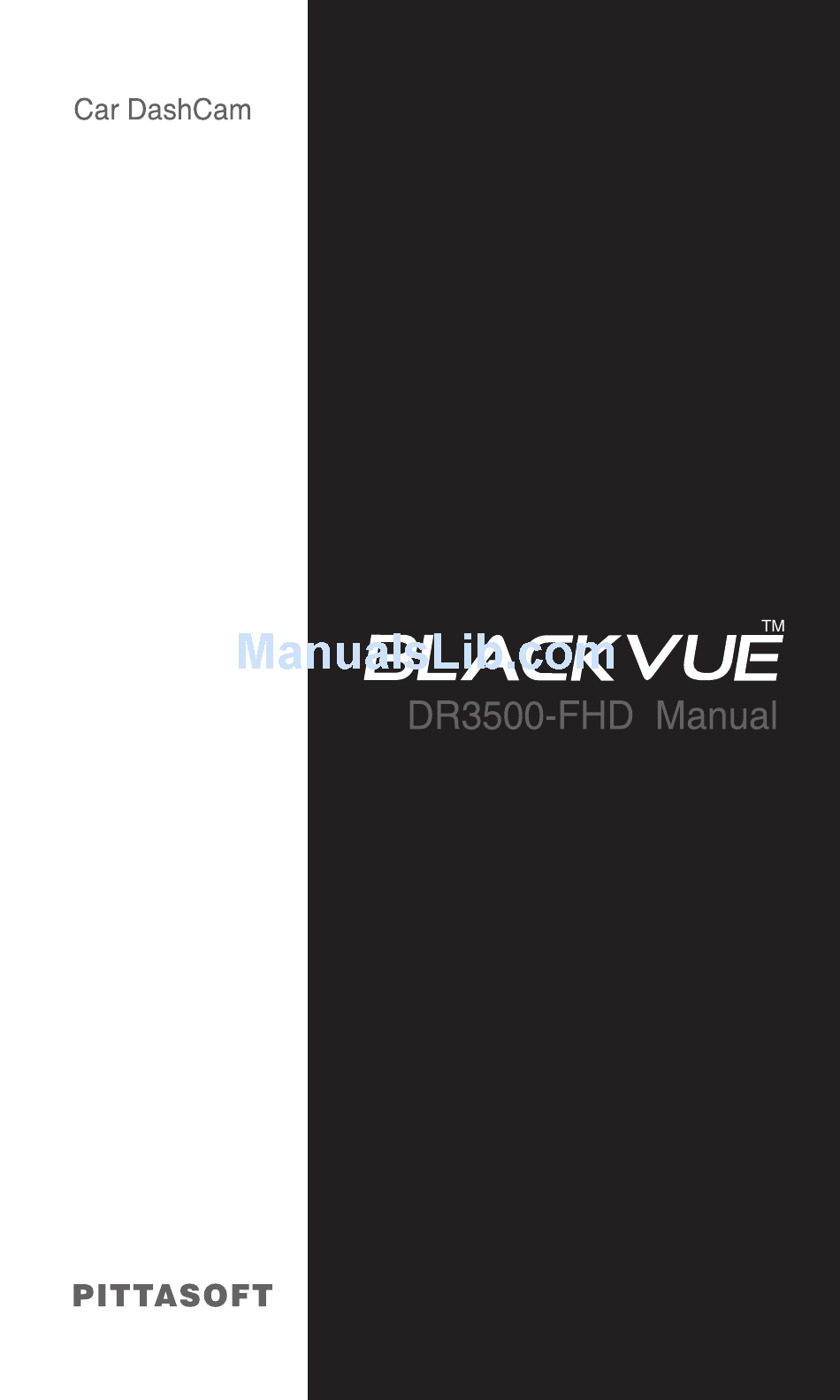

Pittasoft BlackVue DR3500-FHD User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BlackVue DR3500-FHD and is the answer not in the manual?

Questions and answers

Related Manuals for Pittasoft BlackVue DR3500-FHD

Summary of Contents for Pittasoft BlackVue DR3500-FHD

  • Page 3: Table Of Contents

    Table of Contents Introduction to the Manual Getting Started Cautions for Safety Checks for External GPS Checks for the microSD Card Product Features Package Components Names of Each Part How to Attach & Detach the Mounting Bracket How to Install the BlackVue Checking Installation Position How to Insert &...

  • Page 4: Introduction To The Manual

    In accordance with Personal Information Security Law & related legislation, Pittasoft Co., Ltd. will not be held responsible for any problem due to illegal use of this product.

  • Page 5: Getting Started

    Getting Started Cautions for Safety The purpose of these cautions is to maintain user safety and avoid damage to property. Please make sure to read through this manual so as to use the product in the correct way. Death or property damage can be caused for users if DANGER the following directions are not followed: y Do not disassemble, repair, or modify the product yourself.
  • Page 6 Death or serious injury can be caused for users if the WARNING following directions are not followed: y Do not leave the product where infants, children, or pets can reach it. They might swallow small components, or their saliva could get into it and cause an explosion due to a short circuit.
  • Page 7 Injury or property damage can be caused for users if CAUTION the following directions are not followed: y Do not spray cleaning products directly onto the outside of the prod- uct. It can cause discoloration, cracks, or malfunction. y If the product is used outside the optimal temperature range (0°C ~ 60°C), performance can decline or malfunction can be caused.
  • Page 8 6 months. y Other manufacturer's microSD cards can cause compatibility problems so it is recommended to use a Pittasoft microSD card. y The use of the Power Magic (the Battery Discharge Prevention Device)

  • Page 9: Product Features

    Product Features Ultra-high quality and smooth video Full HD (1920x1080) 30-frame ultra-high quality video High-class design with functionality Simple, luxurious design in matt black Megapixel lens & CMOS sensor Clearer vision with high-resolution megapixel lens during both day/night-time driving High-quality wide-angle lens (120°) Maximized viewing angle to record accurate video of any acci- dent Diverse recording options (Normal/Event/Parking)

  • Page 10: Package Components

    Package Components BlackVue Manual Power Cord Cable Clips (5 EA) Double-sided Tape for the Mounting microSD Card Bracket (Including BlackVue Software) microSD Card Reader Note y Pictures of the components may differ from the actual ones. y To enhance the performance of the product, components may be changed without prior notice.
  • Page 11 Names of Each Part Camera Lens LOCK Button Mounting Bracket Speaker GPS LED REC LED Power Socket External GPS IN microSD Card Slot Function Button (Press: MIC On/Off, Press and hold: Format the microSD card) DR3500-FHD 11...
  • Page 12 How to Attach & Detach the Mounting Bracket Pull the unit out of the mounting bracket with the LOCK button pressed. Insert the unit into the mounting bracket until you hear clicking sound, to attach it.

  • Page 13: How To Install The Blackvue

    How to Install the BlackVue Checking Installation Position It is recommended to install it at the back of rear view mirror. Clean any foreign matter and moisture from the place where the product will be installed. Note y Do not install the product where it can interfere with the driver's vi- sion.
  • Page 14 Do not remove the microSD card while it is saving or reading data. The data may be damaged or malfunction caused. y Copy important data to other storage media to store. Pittasoft Co., Ltd. will not be held responsible for data loss due to user negligence.
  • Page 15 Use the cable clip to organize the power cord so that it doesn't interfere with the driver's vision. Adjust the lens angle of the camera. Start the engine and check if the product works properly. Caution y Do not remove the microSD card while it is saving or reading data. The data may be damaged or malfunction caused.

  • Page 16: Video Recording

    Video Recording Normal Recording When the engine is started, the BlackVue is turned on automatically. When the BlackVue is turned on, normal recording is automatically started. Note y If Power Magic (the Battery Discharge Prevention Device) is con- nected, the BlackVue is not turned off. y The normal recording function can be disabled in the BlackVue soft- ware configuration.
  • Page 17 Event Recording If an impact is detected in normal or parking mode recording, event recording is started. It records video for 5 seconds before and 55 seconds after the impact. Note y Sensitivity to impact can be adjusted in the BlackVue software con- figuration.

  • Page 18: Simple Video Playback

    Simple Video Playback How to Playback using a microSD Card Playback Using a Smartphone With a smartphone that supports microSD cards video can be played back. Turn off the BlackVue and remove the microSD card. Note y For the details on how to remove the microSD card, refer to How to Insert &...
  • Page 19 How to Playback using a PC Recorded videos can be played back with a PC. Insert the provided microSD card into a microSD card reader. Connect the microSD card reader to the PC. Open an application to play back recorded videos and select the movie you want to play back from the removable drive.

  • Page 20: How To Use The Blackvue Software

    How to use the BlackVue Software Installation & Execution How to Install Dedicated BlackVue software can be installed in a PC. Insert the provided microSD card into a microSD card reader. Connect the microSD card reader to the PC. Execute the 'BlackVueSetup(HD).exe' file in the 'BlackVue\Software' folder.
  • Page 21 How to Execute Without Installation It is possible to execute the dedicated BlackVue program without installation. Insert the provided microSD card into a microSD card reader. Connect the microSD card reader to the PC. Double-click 'BlackVue.exe' in the 'BlackVue\Application' folder. DR3500-FHD 21...
  • Page 22 Screen Description Name Description Playback Screen Videos can be played back using this screen. The for Recorded mouse can be used to zoom in/out. Videos If you change the language on playback screen, Language the language for BlackVue Viewer can be changed. Setting details about language configuration for BlackVue, refer to the Basic Configuration.
  • Page 23 Name Description Using the file list and map tab, the recorded video list, and where a video was recorded can be checked. : This is an normal recording file and marked Recorded Video with green in the timeline. List : This is an event recording file and marked with orange in the timeline.
  • Page 24 Video Playback How to Control the Playback of Recorded Video The recorded video can be played back in full screen mode and be reversed upside down. The playback speed can be adjusted. Frame Move (Previous) Frame Move (Next) Play Previous File Play Next File View Upside-Down Playback Speed Control...
  • Page 25 Magnifying Glass Some parts of a recorded video can be zoomed in while playing back. Left-click the screen while a recorded video is being played back to see a partial zoom-in window and to use it to identify the number plate of a car while moving it. Note y You can use the Magnifier function only in BlackVue Viewer for Windows.
  • Page 26 How to Manage Files With the recorded video list, a file can be deleted or saved with a different name. Select a file from the recorded video list and right-click it. To delete a file, click Delete. To save it with different name, click Export and select the option you want.
  • Page 27 How to Verify Files With the recorded video list, a file can be verified forgery. Select a file from the recorded video list and right-click it. Click Verification and click OK button. DR3500-FHD 27...
  • Page 28 How to Check the Map Where a video was recorded can be checked with the map. Select a file from the recorded video list and play it back. Press the Map tab. With the +/- button or mouse wheel, the map can be zoomed in/out. Speed Unit Change Map Type Selection...
  • Page 29 How to Check MyWay Viewer The driving route of a recorded video can be checked. Select a file from the recorded video list and play it back. Press the button. The driving route will be displayed on the map. Double-click the map to play back the recorded video of the nearest driving route from the clicked point.
  • Page 30 How to Save as an Image While playing back a recorded video, some parts can be saved as images if you want. Select a file from the recorded video list and play it back. From the image to be saved, press the button.
  • Page 31 Configuration Basic Configuration Time, video, and recording configurations can be changed. button and click the Basic tab. Click the After changing the configuration, click Save & Close. Function Description The time zone can be configured for where it is Time Zone used.
  • Page 32 Note y With the normal recording function disabled, only event and parking mode recording videos are saved. y With the speed display unit disabled, the vehicle speed is not dis- played when the recorded videos are played back. y On microSD cards, older files are deleted first to mark space for newly-recorded videos.
  • Page 33 How to Configure Sensitivity It is possible to configure the G-sensor sensitivity to start event recording dur- ing normal recording and the G-sensor & motion detection sensitivity to start event recording during parking mode recording, respectively. button and click the Sensitivity tab. Click the After changing the configuration, click Save &...
  • Page 34 Advanced Sensitivity Configuration The sensitivity can be configured while watching a recorded video. button and click the Sensitivity tab. Click the Click the Advanced Setting button of the configuration you want. Play back a recorded video. Saved G-sensor information is displayed at the bottom of the recorded video which is played back.
  • Page 35 Other Configuration Configurations for LED indication and voice direction can be changed. Function Description For video recording status, normal recording mode, and parking mode recording, the LED indicators can Etc. be turned on/off. Voice direction item or the volume can be changed. How to Apply Configuration The user's configuration can be applied to the product.

  • Page 36: Firmware Upgrade

    Firmware Upgrade You can upgrade the firmware version by connecting the microSD card into the Connect the microSD card to the PC. For details on how to connect, refer to How to Playback using a PC. (19 page) Format the microSD card, and connect to BlackVue website (www.blackvue. com).

  • Page 37: Product Specifications

    Product Specifications & Standards Product Specifications Model Name DR3500-FHD Color/Size/Weight Matt Black / Width 102.8mm x Height 32mm / 86g Memory microSD Card (8GB / 16GB / 32GB) Normal Recording, Event Recording (Impact Detection), and Parking Mode Recording (Motion+Impact Detection) Recording Mode ❈...

  • Page 38: Led Indicators

    LED Indicators Recording (REC) Security State Boot-up Red Light Green Light Blue Light Normal Red Blinking Blue Blinking Recording Event Red Blinking Blue Blinking Parking Red Blinking Blue Blinking GPS ON/OFF Green Light...

  • Page 39: Recording Time

    Recording Time Full HD Full HD Memory Image (1920x1080) (1920x1080) (1280x720) (1280x720) (720x480) Capacity Quality 30fps 15fps 30fps 15fps 30fps Highest 1 HR 40 MIN 2 HR 2 HR 2 HR 50 MIN 4 HR 20 MIN High 2 HR 20 MIN 2 HR 50 MIN 2 HR 50 MIN 4 HR 20 MIN 5 HR 40 MIN Normal 3 HR 30 MIN...
  • Page 40 Before Requesting A/S Service It is required for users to back up important data regularly from the storage device (to other separate media). Depending on the situation, it will be necessary to delete the data from the internal storage device (component). It might be necessary to delete all the data from the product for A/S Service.
  • Page 41 FCC Compliance Information THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user’s au- thority to operate the equipment.
  • Page 42 Name Car Dashcam Manufacturer Pittasoft Co., Ltd. / Korea Address (Gasan-dong, BYC HIGHCITY), A-7th floor, 131, Gasan digital 1-ro, Geumcheon-gu, Seoul, 153-718, Republic of Korea Sales Headquater Tel: +82-2-6947-4670(#3) Fax: +82-2-6947-4699 e-mail sales@pittasoft.com...
