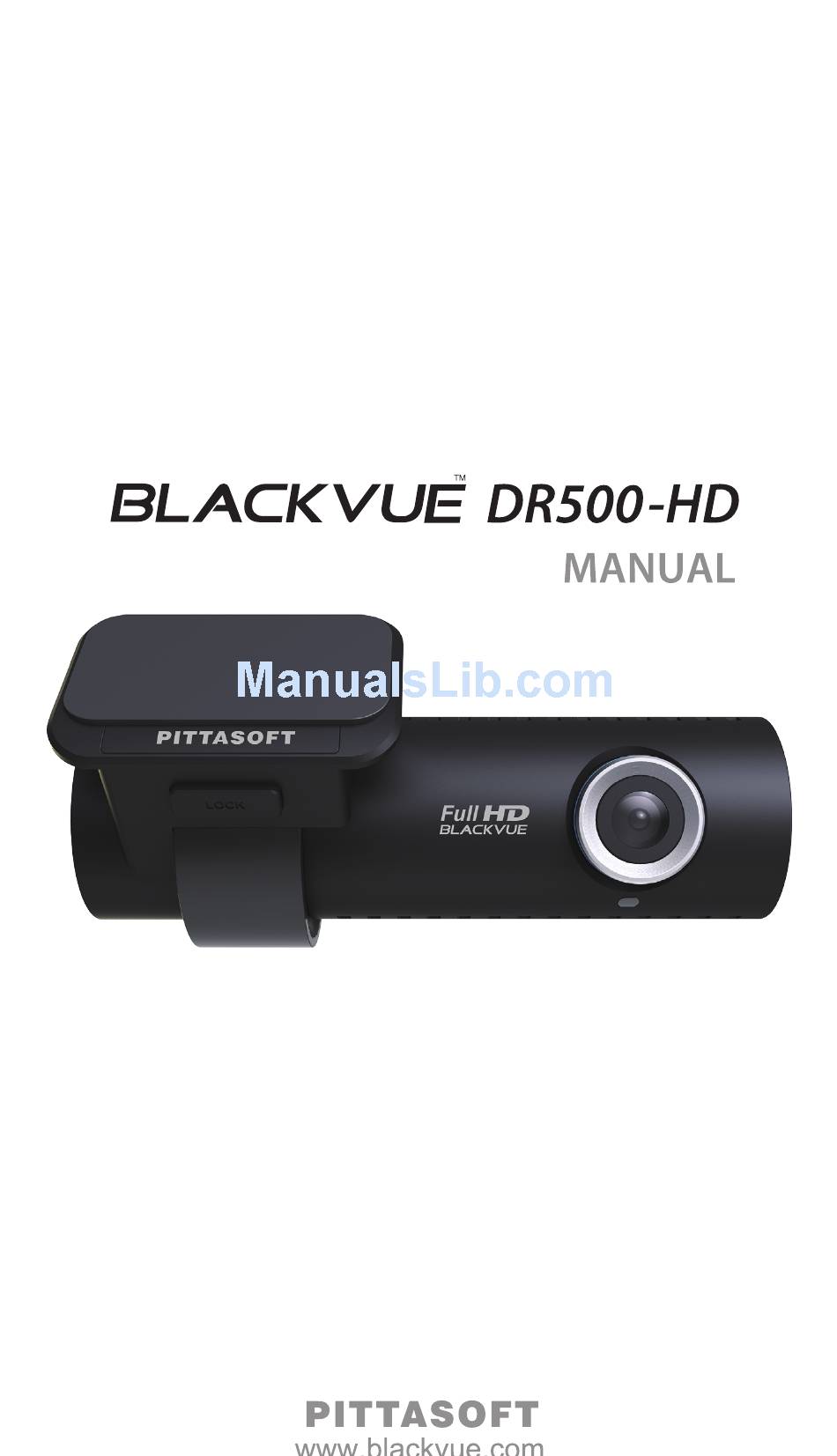

  • Page 1 Car Dashcam...
  • Page 2 Name Manufacturer Car Dashcam Pittasoft Co., Ltd. / Korea Address (Gasan-dong, BYC HIGHCITY), A-7th floor, 131, Gasan digital 1-ro, Geumcheon-gu, Seoul, 153-718, Republic of Korea Sales Headquater Tel: +82-2-6947-4670(#3) Fax: +82-2-6947-4699 e-mail: sales@pittasoft.com...

  • Page 4: Table Of Contents

    Table of Contents Introduction to the Manual Getting Started Cautions for Safety Checks for the microSD Card Product Features Package Components Names of Each Part How to Attach & Detach the Mounting Bracket How to Install the BlackVue Checking Installation Position How to Insert &...

  • Page 5: Introduction To The Manual

    In accordance with Personal Information Security Law & related legislation, Pittasoft Co., Ltd. will not be held responsible for any problem due to illegal use of this product.

  • Page 6: Getting Started

    Getting Started Cautions for Safety The purpose of these cautions is to maintain user safety and avoid damage to property. Please make sure to read through this manual so as to use the product in the correct way. Death or property damage can be caused for users if DANGER the following directions are not followed: y Do not disassemble, repair, or modify the product yourself.
  • Page 7 Death or serious injury can be caused for users if the WARNING following directions are not followed: y Do not leave the product where infants, children, or pets can reach it. They might swallow small components, or their saliva could get into it and cause an explosion due to a short circuit.
  • Page 8 Injury or property damage can be caused for users if CAUTION the following directions are not followed: y Do not spray cleaning products directly onto the outside of the prod- uct. It can cause discoloration, cracks, or malfunction. y Do not press the RESET button with a sharp object such as an awl. It can cause damage or malfunction.
  • Page 9 6 months. y Other manufacturer's microSD cards can cause compatibility problems so it is recommended to use a Pittasoft microSD card. y The use of the Power Magic (the Battery Discharge Prevention Device)

  • Page 10: Product Features

    Product Features Ultra-high quality and smooth video Full HD (1920x1080) 30-frame ultra-high quality video High-class design with functionality Simple, luxurious design in pearl black Megapixel lens & CMOS sensor Clearer vision with high-resolution megapixel lens during both day/night-time driving High-quality wide-angle lens (155°) Maximized viewing angle to record accurate video of any acci- dent Diverse recording options (Normal/Event/Parking)
  • Page 11 Package Components BlackVue Manual Power Cord Cable Clips (5 EA) Double-sided Tape for the Mounting microSD Card Bracket (Including BlackVue Software) microSD Card Reader Note y Pictures of the components may differ from the actual ones. y To enhance the performance of the product, components may be changed without prior notice.
  • Page 12 Names of Each Part Lock Button Camera Lens Mounting Bracket Security LED Recording LED MIC LED Speaker Power Socket microSD Card Slot Cover Reset Button MIC on/off Button DR500-HD 11...
  • Page 13 Note y If you need to reset BlackVue, press the Reset button. It is recommended for emergency use only. How to Attach & Detach the Mounting Bracket Pull the unit out of the mounting bracket with the LOCK button pressed. Insert the unit into the mounting bracket until you hear clicking sound, to attach it.

  • Page 14: How To Install The Blackvue

    How to Install the BlackVue Checking Installation Position It is recommended to install it at the back of rear view mirror. Clean any foreign matter and moisture from the place where the product will be installed. Note y Do not install the product where it can interfere with the driver's vi- sion.
  • Page 15 Do not remove the microSD card while it is saving or reading data. The data may be damaged or malfunction caused. y Copy important data to other storage media to store. Pittasoft Co., Ltd. will not be held responsible for data loss due to user negligence.
  • Page 16 Use the cable clip to organize the power cord so that it doesn't interfere with the driver's vision. Adjust the lens angle of the camera. Note y After adjusting the angle of the camera lens, remember the angle of the mounting bracket so that it can be installed at the same angle next time.

  • Page 17: Video Recording

    Video Recording Normal Recording When the engine is started, the BlackVue is turned on automatically. When the BlackVue is turned on, normal recording is automatically started. Note y If Power Magic (the Battery Discharge Prevention Device) is con- nected, the BlackVue is not turned off. y The normal recording function can be disabled in the BlackVue soft- ware configuration.
  • Page 18 Event Recording If an impact is detected in normal or parking mode recording, event recording is started. It records video for 5 seconds before and 55 seconds after the impact. Note y Sensitivity to impact can be adjusted in the BlackVue software con- figuration.

  • Page 19: Simple Video Playback

    Simple Video Playback How to Playback using a microSD Card Playback Using a Smartphone With a smartphone that supports microSD cards video can be played back. Turn off the BlackVue and remove the microSD card. Note y For the details on how to remove the microSD card, refer to How to Insert &...
  • Page 20 Watching with a GPS navigation Recorded videos can be played back using a GPS navigation. Insert the provided microSD card into a microSD card reader. Connect the microSD card reader to the GPS navigation. Open an application to play back recorded videos and select the movie you want to play back from the removable drive.
  • Page 21 How to Playback using a PC Recorded videos can be played back with a PC. Insert the provided microSD card into a microSD card reader. Connect the microSD card reader to the PC. Open an application to play back recorded videos and select the movie you want to play back from the removable drive.

  • Page 22: How To Use The Blackvue Software

    How to use the BlackVue Software Installation & Execution How to Install Dedicated BlackVue software can be installed in a PC. Insert the provided microSD card into a microSD card reader. Connect the microSD card reader to the PC. Execute the 'BlackVueSetup(HD).exe' file in the 'BlackVue\Software' folder.
  • Page 23 How to Execute Without Installation It is possible to execute the dedicated BlackVue program without installation. Insert the provided microSD card into a microSD card reader. Connect the microSD card reader to the PC. Double-click 'BlackVue.exe' in the 'BlackVue\Application' folder.
  • Page 24 Screen Description Name Description Playback Screen Videos can be played back using this screen. The for Recorded mouse can be used to zoom in/out. Videos If you change the language on playback screen, Language the language for BlackVue Viewer can be changed. Setting details about language configuration for BlackVue, refer to the Basic Configuration.
  • Page 25 Name Description Video can be explored with the date, hr, min, and Timeline sec of when a video was recorded. The playing-back window can be extended to full Playback Option screen and be reversed upside down. With the Button playback control button, video playback, speed, and volume can be controlled.
  • Page 26 Magnifying Glass Some parts of a recorded video can be zoomed in while playing back. Left-click the screen while a recorded video is being played back to see a partial zoom-in window and to use it to identify the number plate of a car while moving it. Note y You can use the Magnifier function only in BlackVue Viewer for Windows.
  • Page 27 How to Manage Files With the recorded video list, a file can be deleted or saved with a different name. Select a file from the recorded video list and right-click it. To delete a file, click Delete. To save it with different name, click Export and select the option you want.
  • Page 28 How to Save as an Image While playing back a recorded video, some parts can be saved as images if you want. Select a file from the recorded video list and play it back. From the image to be saved, press the button.
  • Page 29 Configuration Basic Configuration Time, video, and recording configurations can be changed. button and click the Basic tab. Click the After changing the configuration, click Save & Close. Function Description The time zone can be configured for where it is Time Zone used.
  • Page 30 Note y With the normal recording function disabled, only event and parking mode recording videos are saved. y With the speed display unit disabled, the vehicle speed is not dis- played when the recorded videos are played back. y On microSD cards, older files are deleted first to mark space for newly-recorded videos.
  • Page 31 How to Configure Sensitivity It is possible to configure the G-sensor sensitivity to start event recording dur- ing normal recording and the G-sensor & motion detection sensitivity to start event recording during parking mode recording, respectively. button and click the Sensitivity tab. Click the After changing the configuration, click Save &...
  • Page 32 Advanced Sensitivity Configuration The sensitivity can be configured while watching a recorded video. button and click the Sensitivity tab. Click the Click the Advanced Setting button of the configuration you want. Play back a recorded video. Saved G-sensor information is displayed at the bottom of the recorded video which is played back.
  • Page 33 Other Configuration Configurations for LED indication and voice direction can be changed. Function Description For video recording status, normal recording mode, and parking mode recording, the LED indicators can Etc. be turned on/off. Voice direction item or the volume can be changed. How to Apply Configuration The user's configuration can be applied to the product.

  • Page 34: Firmware Upgrade

    Firmware Upgrade Existing products can be upgraded by downloading a new version of the firm- ware. Connect the microSD card to the PC. For details on how to connect, refer to How to Playback using a PC. (20 page) Access the BlackVue website (www.blackvue.com) and download the firmware upgrade file.
  • Page 35 After the firmware upgrade is finished, insert the microSD card into the BlackVue. Note y For detailes on how to insert the microSD card, refer to How to Insert & Remove the microSD Card. (13 page) y Insert the microSD card only when the product is turned off. When the power is turned on, it is automatically upgraded.

  • Page 36: Product Specifications

    Product Specifications & Standards Product Specifications Model Name DR500-HD Color/Size/Weight Pearl Black / Length 118.5mm x Diameter 36mm / 104g Memory microSD Card (16GB / 32GB) Normal Recording, Event Recording (Impact Detection), and Parking Mode Recording (Motion+Impact Detection) Recording Mode ❈...
  • Page 37 LED Indicators Recording (REC) Security State Boot-up Blinking Normal Orange Blinking White Blinking Recording Event Red Blinking Fast White Blinking Parking Green Blinking White Blinking MIC ON Blue Light Software Control Available Available Available microSD Card Standard Full HD Full HD Memory Image (1920x1080)
  • Page 38 Before Requesting A/S Service It is required for users to back up important data regularly from the storage device (to other separate media). Depending on the situation, it will be necessary to delete the data from the internal storage device (component). It might be necessary to delete all the data from the product for A/S Service.
  • Page 39 FCC Compliance Information THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user’s au- thority to operate the equipment.

  • Page 40: Product Warranty

    The term of this product warranty is 2 year from the purchase date. (Accessories  such as Battery/microSD Card : 6 Months) We, Pittasoft Co., Ltd., provide the product warranty according to Consumer Dispute  Settlement Regulations (drawn up by the Fair Trade Commission). Pittasoft or designated partners will provide the service upon request.
  • Page 41 MEMO...
  • Page 42 MEMO...
  • Page 43 MEMO...
  • Page 44 MEMO...
