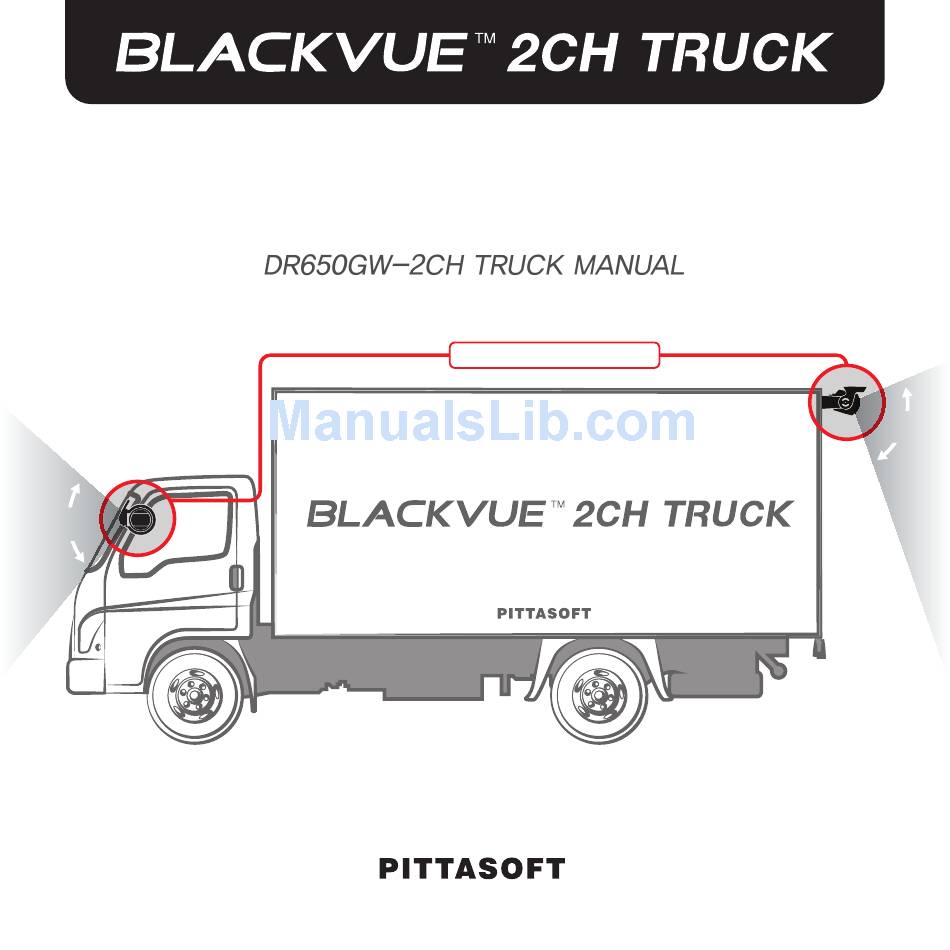

Pittasoft BlackVue DR650GW-2CH Instruction Manual

Heavy vehicle dashcam

Advertisement

Quick Links

Heavy vehicle
dashcam
Waterproof cable (15M)
Wide
Angle
Wide
Angle
www.blackvue.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BlackVue DR650GW-2CH and is the answer not in the manual?

Questions and answers

Summary of Contents for Pittasoft BlackVue DR650GW-2CH

  • Page 1 Heavy vehicle dashcam Waterproof cable (15M) Wide Angle Wide Angle www.blackvue.com...
  • Page 2 BLACKVUE Wi-Fi 2CH TRUCK...
  • Page 3: Table Of Contents

    Table of Contents Introduction to the Manual Getting started Cautions for Safety Checks for GPS Checks for the microSD Card Product Features Package Components Names of Each Part How to Attach & Detach the Mounting Bracket of the Front Camera How to Install the BlackVue Checking Installation Position Insert &...
  • Page 4: Introduction To The Manual

    The recorded video produced by this product constitutes the secondary data that may help to determine the circumstances of an accident. PittaSoft Co., Ltd. will not be held responsible for any loss or damage caused by any accident.
  • Page 5: Getting Started

    Getting started Cautions for Safety The purpose of these cautions is to maintain user safety and avoid damage to property. Please make sure to read through this manual so as to use the product in the correct way. Death or property damage can be caused for users if the following directions are DANGER not followed: y Do not disassemble, repair, or modify the product yourself.
  • Page 6 Death or serious injury can be caused for users if the following directions are not WARNING followed: y Do not leave the product where infants, children, or pets can reach it. They might swallow small components, or their saliva could get into it and cause an explosion due to a short circuit.
  • Page 7 Injury or property damage can be caused for users if the following directions are CAUTION not followed: y Do not spray cleaning products directly onto the outside of the product. It can cause discoloration, cracks, or malfunction. y If the product is used outside the optimal temperature range (0°C ~ 60°C), performance can decline or malfunction can be caused.
  • Page 8 Insert or remove the microSD card only when the product is turned off. y microSD cards are a consumables and they are guaranteed for 6 months. y Other manufacturer's microSD cards can cause compatibility problems so it is recommended to use a PittaSoft microSD card.
  • Page 9: Product Features

    Product Features Ultra-high quality and smooth video Full HD(1920x1080) 30 frame ultra-high quality front video HD(1280x720) 30 frame high quality rear video High-class design with functionality Simple but classy all black design with the functionality of a 360-degree revolution to set any angle Externally-mountable waterproof rear camera Possible to mount on the vehicle like truck that is not mountable in the interior because the rear...
  • Page 10 129° Wide-angle lens supporting high quality image as default Support Full HD resolution with 129° lens which allows to show the most clear and detailed playback of an accident and prevent video distortion Enhance for user convenience No necessity for disconnecting coaxial cable with rear camera to insert and remove the microSD card Diverse recording options (Normal/Event/Parking) Event recording and automatic conversion &...
  • Page 11 Package Components Front Camera User Guide Power Cord Cable Clips (8 EA) Double-sided Tape microSD Card and Screws for the (Including BlackVue Mounting Bracket, etc Viewer and Manual) microSD Card Reader External Rear Camera Rear Camera Connection Cable (15m for waterproof) Note y Pictures of the components may differ from the actual ones.
  • Page 12 Names of Each Part Front Camera Lock Button Camera Lens LED Indicators for Recording Mounting Bracket Front Security LED GPS LED Speaker DC in (Power Socket) Wi-Fi LED V in (Rear camera connection port) Cover microSD Card Slot Voice On/Off Button Wi-Fi Button (Format Button: Press for 10 seconds for Formatting) Note...
  • Page 13 Rear Camera Illumination Sensor Sun Shield Camera Lens IR Light External Mounting V out Bracket (Front camera connection port) How to Attach & Detach the Mounting Bracket of the Front Camera Pull the the front camera out of the mounting bracket with the Lock button pressed. Insert the front camera into the mounting bracket until you hear clicking sound, to attach it.
  • Page 14: How To Install The Blackvue

    How to Install the BlackVue Checking Installation Position It is recommended to install the front camera at the back of rear view mirror. Clean any foreign matter and moisture from the place where the product will be installed. It is recommended to install the rear camera at the top of the rear of the truck. Note y Do not install the product where it can interfere with the driver's vision.
  • Page 15 Do not remove the microSD card while it is saving or reading data. The data may be damaged or malfunction caused. y Copy important data to other storage media to store. PittaSoft Co., Ltd. will not be held responsible for data loss due to user negligence.
  • Page 16 Installation Stop the engine where there is some light and in a safe place, and then remove the key. Attach the front camera to the windshield glass with the camera lens located in the middle of the vehicle using the double-sided tape. After installing the product, remove the lens cap. Use the power cord to connect the DC in of the front camera to car's power socket.
  • Page 17 Use the rear camera connection cable to connect the V in of the front camera to the V Out of the rear camera. Note y It is recommended to mold the cable with cover, etc. not to be exposed to the external environment in case of mounting the connecting cable of the rear camera on the outside.
  • Page 18 Adjust the lens angle of the camera. Note y With smartphone and Wi-Fi connections, it is possible to adjust the angle of the camera lens while watching real-time video. (22 page) Start the engine and check if the product works properly. Caution y Do not remove the microSD card while it is saving or reading data.
  • Page 19: Video Recording

    Video Recording Recording mode will be changed by the status of vehicle. Note y Rear camera is mounted with IR light so that it can identify vehicles and objects in the images recorded at the dark place. Normal Recording When the engine is started, the BlackVue is turned on automatically. When the BlackVue is turned on, normal recording is automatically started.
  • Page 20 Event Recording If an impact is detected in normal or parking mode recording, event recording is started. It records video for 5 seconds before and 55 seconds after the impact. Note y Sensitivity to impact can be adjusted in the BlackVue viewer setting. (36 page) y Event recording time can be adjusted in the BlackVue viewer setting.
  • Page 21: Video Playback

    Video Playback How to Playback using a PC Recorded videos can be played back with a movie playback program on a PC. It is enabled to play back recorded videos in the same way on multimedia devices (navigation, tablet etc.) using a USB storage device. Insert the provided microSD card into a microSD card reader.
  • Page 22 How to Playback using a Smartphone (BlackVue App) Install the BlackVue App and open it in the smartphone. The BlackVue App can be downloaded from the Google Play store, Apple App Store, and Windows store. Note y The BlackVue app is enabled in Android 2.3 or higher, iOS 6.0 or higher, or Windows 8.0 or higher. y Some functions may not be supported depending on the smartphone.
  • Page 23 (In case of using iOS OS) Select Settings > Wi-Fi on smartphone. Select the device to connect in the selection list of network, and enter the password. (e.g. DR550GW-A682DE) If you touch the Join button, it is connected to the selected device.
  • Page 24 Select the recorded video in the video list you want to play back. Note y Tap the Live View button to check the video in real time. y If the Live View or VOD playback & copy function is used while it is connected via Wi-Fi and recording Full HD (1920x1080) @30fps, the recording frame is reduced to 20 fps.
  • Page 25: How To Use The Blackvue Software

    How to use the BlackVue Software Screen Description Double-click the BlackVue Viewer icon in the microSD card to run BlackVue Viewer. In order to install BlackVue Viewer on the PC, connect to the BlackVue website (www.blackvue.com) and download it. Name Description Playback Screen for Recorded...
  • Page 26 Name Description microSD Card The microSD card connected to the PC can be formatted. Formatting G-Sensor G-sensor information can be checked, at the time the video was recorded. Information GPS Information GPS information can be checked, at the time the video was recorded. Using the file list and map tab, the recorded video list, and where a video was recorded can be checked.
  • Page 27 Video Playback How to Control the Playback of Recorded Video The recorded video can be played back in full screen mode and be reversed upside down. The playback speed can be adjusted. Play Previous File Frame Move (Previous) Frame Move (Next) Playback Speed Control View Upside-Down Full Screen View...
  • Page 28 Timeline Video can be explored with the date, hr, min, and sec of when a video was recorded. Year Selection Timeline for Hr Selection Timeline for Timeline for Sec Month Selection Min Selection Selection Note y In the date selection area, the date with a recorded video is marked by a red circle and the currently- selected date is marked by a yellow circle.
  • Page 29 How to Manage Files With the recorded video list, a file can be deleted or saved with a different name. Select a file from the recorded video list and right-click it. To delete a file, click Delete. To save it with different name, click Export and select the option you want. Note y When you select Sound Off, the voice is removed from the recorded video to be saved.
  • Page 30 How to Verify Files With the recorded video list, a file can be verified forgery. Select a file from the recorded video list and right-click it. Click Verification and click OK button. 30 BLACKVUE Wi-Fi 2CH...
  • Page 31 How to Check the Map Where a video was recorded can be checked with the map. Select a file from the recorded video list and play it back. Press the Map tab. With the +/- button or mouse wheel, the map can be zoomed in/out. Speed Unit Change Map Type Selection...
  • Page 32 How to Check MyWay Viewer The driving route of a recorded video can be checked. (GPS Tracking) Select a file from the recorded video list and play it back. Press the button. The driving route will be displayed on the map. Double-click the map to play back the recorded video of the nearest driving route from the clicked point.
  • Page 33 How to Save as an Image While playing back a recorded video, some parts can be saved as images if you want. Select a file from the recorded video list and play it back. From the image to be saved, click the button.
  • Page 34 Settings Basic Settings Time, video, and recording settings can be changed. button and click the Basic tab. Click the After changing the configuration, click Save & Close. Function Description Time Zone The time zone can be set for location used. The time zone setting is used as information Settings on a recorded video.
  • Page 35 Function Description Language The language of BlackVue can be changed. Setting Note y With the normal recording function disabled, only event and parking mode recording videos are saved. y With the speed display unit disabled, the vehicle speed is not displayed when the recorded videos are played back.
  • Page 36 Sensitivity Setting In recording mode, the G-sensor sensitivity(impact sensitivity) and motion detection sensitivity can be set for each start event recording. The speed alert can be set to start event recording when vehicle exceeds the set speed level. button and click the Sensitivity tab. Click the After changing the configuration, click Save &...
  • Page 37 Function Description It is possible to set the G-sensor and motion detection sensitivity to start event Sensitivity for recording during parking recording mode. The G-sensor sensitivity of top and Parking Mode bottom, left and right, front and rear each can be set from 0-10 levels; and the motion detection sensitivity can be set from 0-5 levels.
  • Page 38 Move the control bar up/down to adjust the sensitivity range. If the range is wide, it is less sensitive, and if the range is narrow, it is more sensitive. It is recorded as an event. It is not recorded as an event. Note y If an event recording is started due to the sensitivity configured while a recorded video is being played back, the edge of the playback screen blinks in orange.
  • Page 39 Wi-Fi and Other Settings Settings for Wi-Fi, LED indication, and voice announcements can be changed and user information can be registered. Function Description You can change Autorun Wi-Fi feature, SSID and your password for the Wi-Fi connection. Wi-Fi Setting The BlackVue App can be accessed with the SSID and password chosen by the user and you can also reset the password if you have forgotten it.
  • Page 40 How to Apply Configuration The user's configuration can be applied to the product. Insert the microSD card into the product. For details on how to insert the microSD card, refer to Insert & Remove the microSD Card. (15 page) When the power is turned on, the user's configuration is automatically applied. Note y Insert the microSD card only when the product is turned off.
  • Page 41: Firmware Upgrade

    Firmware Upgrade Connect the microSD card via PC, or BlackVue application via Wi-Fi to upgrade firmware. Upgrade via PC Connection Connect the microSD card to the PC. For details on how to connect, refer to Playback using a PC. (21 page) Format the microSD card, and connect to BlackVue website (www.blackvue.com).
  • Page 42 Upgrade via BlackVue Application Select Firmware Download in BlackVue application. Select Model Name and Language Name and press OK. When firmware information to download is displayed, press OK to download. Connect BlackVue via Wi-Fi. For details on how to connect, refer to Playback Using the BlackVue App. (22 page) Select Config >...
  • Page 43: Product Specifications & Standards

    Product Specifications & Standards Product Specifications Model Name DR650GW-2CH TRUCK Front: Black / Width 118.5mm x Height 36mm / 120g Color/Size/Weight Rear: Black / Width 67.4mm x Height 27.6mm / 250g Memory microSD Card (16GB / 32GB / 64GB) Normal Recording, Event Recording (Impact Detection), and Parking mode Recording Recording Mode (Motion+Impact Detection) ※...
  • Page 44 LED Indicators Front: Recording LED, GPS LED, Wi-Fi LED, Front Security LED Sensor 3-Axis Acceleration Sensor Illumination Sensor 850 nano, 6 Infrared(IR) Lights and Light of Rear Camera Wi-Fi On/Off Button ※ Self-format Function: Press it for 10 seconds to format the microSD card Voice On/Off Button Button ※...
  • Page 45: Led Indicators

    LED Indicators Recording State Wi-Fi Front Security State (REC) Boot-up Blinking Normal Orange Blinking White Blinking Recording Event Red Blinking Fast White Blinking Parking Green Blinking White Blinking Wi-Fi ON Lighting White Blinking Wi-Fi ON/OFF Change Blinking White Blinking GPS ON Blue Light White Blinking Software Control...
  • Page 46 Recording Time Resolution Full HD + HD Full HD + HD HD + HD HD + HD (Front+Rear) @30fps @15fps @30fps @15fps Memory Capacity Highest 3 HR 4 HR 10 MIN 3 HR 50 MIN 4 HR 30 MIN 16GB High 3 HR 20 MIN 4 HR 30 MIN...
  • Page 47 Before Requesting A/S Service y It is required for users to back up important data regularly from storage device (to other separate media). Depending on the situation, it will be necessary to delete the data from the internal storage device (component). It might be needed to delete all the data from the product for A/S. So it is required for users to back up important data by themselves before requesting A/S.
  • Page 48 208-150023 MSIP-CMM-PTA-DR550GW-2CH YCK-DR550GW-2CH...
