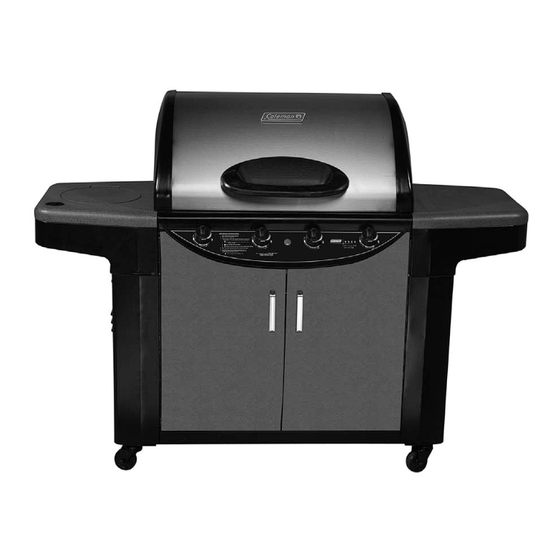

Page 1 Keep this manual for future reference. If you have questions about assembly, operation, servicing or repair of this grill, please call Coleman at 1-800-835-3278 or C E R T I F I E D ®...
Page 2: Table Of Contents
• NEVER place more than 15 pounds on a side table or a side burner. DO NOT lean on grill. (Fig. 5) • NEVER use charcoal briquettes or lighter fluid in a gas grill. (Fig. 6) • Grill is hot when in use; to avoid burns, DO NOT touch any hot grill surface.
Page 3: General Installation
General Safety Information cont. General Installation • Installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1 (USA), CAN/CGA-B149.1, Natural Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code (Canada). To check local codes, see your local L.P.
Page 4: Electrical Attachments
L.P. gas is heavier than air and tends to collect in low areas. It is important that there are no leaking connections on your gas grill that could cause a fire or explosion (see “LEAK TESTING”, Pg. 28).
Page 5: L.p. Gas Cylinder
Do not use another hose and regulator assembly other than the one supplied with the grill or a Coleman replacement pressure regulator assembly. The pressure regulator and hose assembly provided is factory set at an outlet pressure of 11 inches water column (1/2 psi).
Page 6: Filling And Purging Type 1 L.p. Gas Cylinders
Transporting the Cylinder WARNING Handle a full cylinder with care. Gas is under high pressure. DANGER • NEVER store a spare L.P. gas supply cylinder under the grill body or inside grill enclosure or in the vicinity of any heat producing appliance. (Fig. 12) •...
Page 7: Assembly/Set Up
Assembly/Set up Remove components from package. Left Side Burner Table Side Burner Knob Side Burner Side Burner *Rear Trim Plate Grate Warming Rack Grease Pan Grease Grease Support Electrode Module *Cylinder Retaining Bolt 9-Volt Battery Left Door * On some models, this item is factory installed. *Left Side Burner Electrode Spacers Top Panel...
Page 8: Right Panel
NOTE: Use a large piece of cardboard or a ground cloth to protect the painted finish on the grill. Assemble the Right Panel and the Left Panel to the Step Grill Base. Note Hole Locations Base in Panels Front Left Panel 1-A.
Page 9 Assemble four Caster Brackets to the Grill Base. Assemble two Locking Casters to the front of the Grill Base. Step Assemble two Non-Locking Casters to the rear of the Grill Base. 2-A. Assemble four Caster Brackets to the Grill Base using three screws (TN) in each bracket (see Fig.
Page 10: Rear Panel
Carefully turn the assembly Right-Side-Up. Assemble the Rear Panel. Step Assemble the Cylinder Support. Hardware shown actual size (FA) M5 x 15mm Screw (4) Qty. FA (x4) 3-A. Assemble the Rear Panel to the Left and Right Side Panels with four Screws (FA). Hardware shown actual size Rear Panel...
Page 11 Attach Electrode Module. Install Door Magnet. Step Hardware shown actual size (AV) M5 x 10mm Screw (2) Qty. AV (x2) Left Side Panel 4-A. Attach the Electrode Module to the Left Panel on the inside surface. Use two screws (AV) and two locking hex nuts (BW).
Page 12 Assemble two Spacers to the Top Panel. Assemble the Top Panel to Step the Grill Cart. Hardware shown actual size (TN) M6 x 15mm Screw (11) Qty. TN (x4) Spacer (x2) (with flange up) 5-A. Assemble the two Spacers to the Top Panel with four Screws (TN).
Page 13 View of Grill from Front 6-B. While lowering the Firebox, route the fuel hoses through the large hole in the top panel. 6-C. Fasten the front side of the Firebox to the Grill Cart with TN (x2) DY (x2) View of Grill from Rear 6-D.
Page 14: Right Side Panel
NOTE: The Grill Lid should be opened for Steps 7 and 8. Step Assemble Right Side Table to the Grill. FIREBOX 7-A. Raise the Grill Lid. Place the Right Side Table against the Firebox and on top of the Right Side Panel. Right Side Table...
Page 15 View of Grill from Rear 7-D. Assemble one Screw (TN), one Flat Washer (DY) and one Locking Hex Nut (UO) through the Firebox into the Right Side Table. Tighten all fasteners.
Page 16 Assemble Left Side Burner to the Grill. Step Left Side Panel 8-A. Place the Left Side Burner Table against the Firebox and on top of the Left Side Panel. Left Side Burner Table 8-B. Align two Keyhole Slots in the Left Side Burner Table over two pins on the side of the Firebox (see Fig.
Page 17 View of Grill from Rear 8-D. Assemble one Screw (TN), one Flat Washer (DY) and one Locking Hex Nut (UO) through the Firebox into the Left Side Burner Table. Tighten all fasteners.
Page 18 Fasten the Rear Trim Plate to the Grill Cart. NOTE: On some models, Step the Rear Trim Plate is pre- installed by the factory. Hardware shown actual size (VP) Self Tapping Screw (2) Qty. 9-A. Fasten the Rear Trim Plate to the Firebox with two Screws (VP).
Page 19: Right Door
Fasten both Left and Right Doors to the Grill Cart. Attach the Tool Hook to the Right Door. Step Fasten the Door Handles to the Doors. NOTE: M4 x 5mm Screws (EZ) are factory installed into the Handles. 10-A Left Door 10-B XR (x4) 10-B.
Page 20: Warming Rack
Install four Heat Tents™. Install four Cooking Grates. Install the Warming Rack. Step 11-A Heat Tents™ Burners 11-B 11-B. Install four Heat Tents™ over the Burners. The Heat Tents™ are located using the alignment pins. Warming Rack 11-C Standard Cooking Grate Grates 11-C.
Page 21 Install the Side Burner Valve. NOTE: On some models, Step the M4 x 10mm Screws (WQ) are pre-installed on the bracket by the factory. 12-A 12-A. Route the Side Burner Valve through the Large Hole in the Left Panel. 12-C Side Burner Valve...
Page 22 Assemble the Side Burner to the Left Side Table. Assemble the Electrode to Step the Side Burner. NOTE: On some models, the Electrode is pre-installed by the factory. 13-A 13-A. Slip the Burner Tube through the Left Side Table. 13-B Burner Valve 13-B.
Page 23 Assemble the Electrode Wires and the Battery to the Electrode Module. Step Note: The fuel hoses are not shown in this step, for simplicity. 14-A Side Burner Wire 9-Volt Battery 14-B Igniter Button Wires EST THE GNITER A SPARK SHOULD APPEAR AT ELECTRODE TIP F THE SPARK DOES NOT APPEAR...
Page 24 Install Side Burner Knob and Side Burner Grate onto the Left Side Burner. Step 15-A Side Burner Grate 15-A. Place the Side Burner Knob on the valve stem. Place the Side Burner Grate on the Left Side Burner. Align the pins downward into the alignment holes. Step 16-A Grease...
Page 25: Grease Pan
Install the Grease Pan. Install the Grease Cup. Step 17-A Grease Pan Support 17-A. Slide the Grease Pan Assembly into the back of the grill. 17-B Grease Cup 17-B. Place the Grease Cup into the Grease Cup Support. Note: Pull the Grease Pan outward slightly for easier access when installing/removing the Grease Cup.
Page 26 NOTE: Step 18 applies to you only if your grill is set up from the factory to use LP GAS. If your grill is set up from the factory to use NATURAL GAS, skip to Step 19. Attach an LP Cylinder to the Grill.
Page 27: Rubber Plug
NOTE: Step 19 applies to you only if your grill is set up from the factory to use NATURAL GAS. If your grill is set up from the factory to use LP GAS, skip back to Step 18. Attach a NATURAL GAS line to the grill.
Page 28: Connecting Type 1 L.p. Gas Cylinders
Coleman. DO NOT attempt to repair the cylinder valve if it should become damaged; the cylinder MUST be replaced.
Page 29: Start-Up Check List
Fixing A Fuel Leak (cont.) CAUTION Inspect the gas supply hoses before each use. If there are cuts, damage, excessive abrasion or wear, replace the hoses prior to operating the appliance. During assembly of grill and when attaching or replacing the L. P. gas cylinder, insure that all gas supply hoses are free of kinks and/or damage and are at least 3"...
Page 30: Lighting Main Burners
Lighting Main Burners 1. Turn on any or all burner gas control knobs to high. (Fig. 19) 2. Press the igniter switch until the flame ignites. 3. If the flame doesn’t immediately light, turn off control knob and wait five minutes for gas to clear. 4.
Page 31: Grilling Tips And Hints
L.P. cylinder, cylinder valve, regulator, gas supply hose, burner valve(s) and burner(s). 5. If any of the above mentioned components are damaged, Blue seek replacement from Coleman before operating the grill again. Locate your nearest service center by calling 1-800-835-3278. Note: •...
Page 32: Cleaning The Venturi
Cleaning the Venturi WARNING Spider’s nests or wasp’s mud inside the venturi may cause fire at valve. If a fire occurs, immediately turn off gas supply at L.P. cylinder valve (see representative illustration in Fig. 22). If your grill is set up for use with Natural Gas, turn off gas supply at the system manual shut off valve.
Page 33: Moving And Storage
Moving and Storage cont. A collision with the grill, as with any metal object, could cause injury. Use care when moving a portable gas grill. Moving the grill: • Move grill slowly. DO NOT run with or pull the grill behind you;...
Page 34: For Your Additional Safety
O.P.D. feature. For Your Additional Safety YOUR NEW GAS GRILL IS EQUIPPED WITH A TYPE 1 CONNECTION DEVICE WHICH HAS 3 SAFETY FEATURES: (SEE TYPE 1 CONNECTION ILLUSTRATION) 1.
Page 35: Department Registration
¨ warranty. PROTECT YOUR PRODUCT: We will keep the model number and date of purchase of your new Coleman you refer to this information in the event of an insurance claim such as fire or theft. PROMOTE BETTER PRODUCTS: We value your input. Your responses will help us develop products designed to best meet your needs.
Page 36 Stainless steel material (if applies) Porcelain or stainless steel cooking grates Thank you for filling out this questionnaire. Your answers are important to us. Please check here [ ] if you prefer not to learn more about Coleman ® Outdoor Cooking Products or www.coleman.com.
Page 37: Recipes
Recipes Asian-flavored eggplant Cooking time: 8-10 minutes 2 large eggplant, peeled and sliced into 1/2 inch rounds 2 Tb olive oil For the sauce: 1 tsp grated ginger 3 cloves minced garlic 4 green onions, sliced thin 2 Tb soy sauce 1 Tb hoisin sauce 2 tsp sugar juice of one lime...
Page 38 Recipes Spice-rubbed spareribs Cooking time: 45 minutes to partial boil; 16-20 min- utes to grill 6 pounds baby back pork spareribs water to cover For the spice mixture: 2 Tb brown sugar 3 Tb paprika 1 Tb chili powder 1 tsp garlic powder 2 tsp black pepper 1 Tb Dijon mustard 1 Tb salt...
Page 39 Recipes Lemongrass beef skewers with peanut dipping sauce Cooking time after marination: 4-5 minutes 2 pounds boneless sirloin For the Marinade: 3 cloves garlic, minced 2 stalks lemongrass, trimmed of tough outer layer, sliced (find in Asian markets) 2 Tb sugar 1 Tb soy sauce 3 Tb thai fish sauce (find in Asian markets) 1.5 inch thick slice fresh ginger, minced...
Page 40: Warranty
(see label on cylinder for cylinder manufacturer’s warranty) or the paint finish of the product. Coleman, at its option, will repair or replace this product or any component of the product found to be defective during the war- ranty period.
