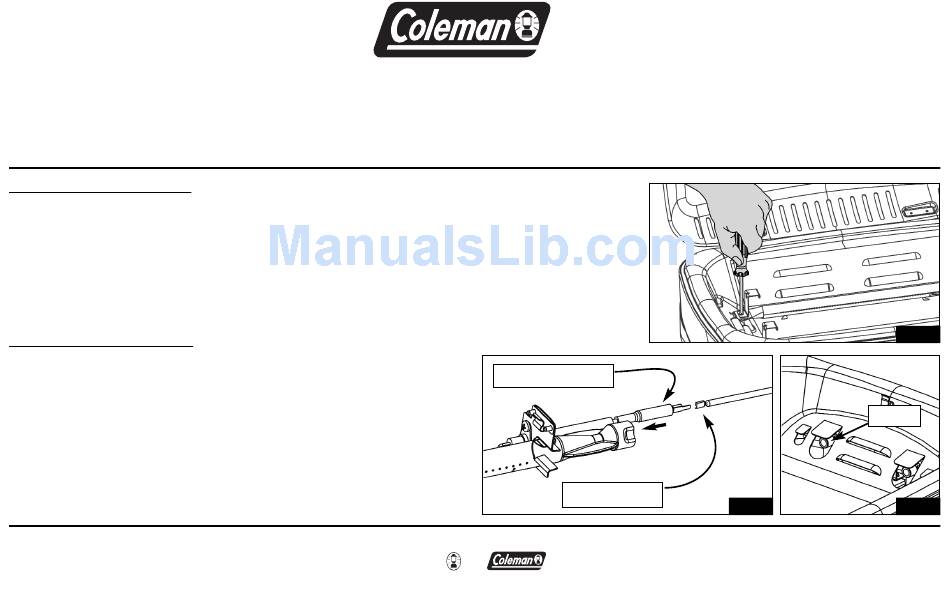

Burner Replacement Instructions for Coleman
TO REMOVE OLD BURNERS
1.
Open lid, remove grate and heat tents.
2.
Remove the hold-down screw on the left side of each burner (Fig. 1).
3.
Pull burner to the left about 2" to expose the electrode connection.
4.
Slide the flexible wire cover to expose the wire connection (Fig. 2).
5.
Disconnect the old burner electrode wire.
TO INSTALL NEW BURNERS
6.
Reconnect the new burner electrode wire.
7.
Slide the flexible wire cover over the wire connection.
8.
Push the burner tube over the orifice on the right side (Fig. 3).
9.
Replace the hold-down screw on the left side, securing both the
burner tube and the heat tent bracket. Repeat for the other burner.
10. Replace the heat tents and the grate.
© 2008 The Coleman Company, Inc. All rights reserved. Coleman
®
Part No. 5010000286
The Coleman Company, Inc. • 3600 N. Hydraulic • Wichita, KS 67219 U.S.A. • 1-800-835-3278 • TDD: 316-832-8707
®
9971 Series
FLEXIBLE WIRE COVER
WIRE CONNECTION
®
,
, and
are registered trademarks of The Coleman Company, Inc.
®
www.coleman.com
Shoreside™ Propane Grill
Fig. 2
Fig. 1
ORIFICE
Fig. 3
4010001961 (20080212)
