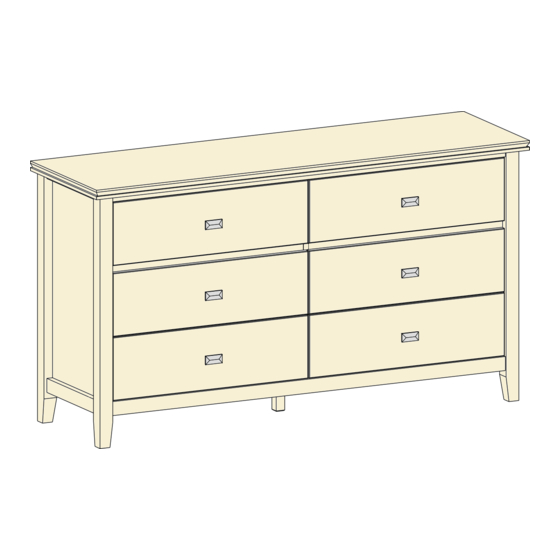

- Page 1 ARTISAN HOLDEN STRATFORD DRESSER MODEL # 3AXCART-03 1/18...
- Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: simpli home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET 2/18...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. - Page 4 PRE ASSEMBLY INFORMATION MODEL # 3AXCART-03 PARTS DESCRIPTION TOP SHELF BOTTOM FRAME QTY 1 QTY 1 QTY 2 LEFT SIDE RIGHT SIDE DIVIDER QTY 1 QTY 1 QTY 1 BACK PANEL BACK PANEL BOTTOM SUPPORT LEG QTY 1 QTY 1 QTY 1 DRAWER FRONT DRAWER SIDE...
-
Page 5: Hardware Description
PRE ASSEMBLY INFORMATION MODEL # 3AXCART-03 HARDWARE DESCRIPTION ALLEN KEY BOLT ALLEN KEY SCREW CAM LOCK PIN HANDLE M6 X 30 mm M6 X 30 mm CAM LOCK M4 X 25 mm QTY 16 SETS QTY 24 QTY 22 QTY 6 SETS PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW... - Page 6 COMPONENTS – KEY DIAGRAM MODEL # 3AXCART-03 6/18...
- Page 7 ASSEMBLY MODEL # 3AXCART-03 STEP 1 1. Attach 4 Cam Lock Pins 3 to pre-drilled holes at back of Drawer Front K . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides L . 3. Insert 2 Cam Locks 3 into pre-drilled holes on each Drawer Side L . 4.
- Page 8 ASSEMBLY MODEL # 3AXCART-03 STEP 3 1. Align Drawer Back M with Drawer Bottom N and press firmly into slot . 2. Attach Drawer Back using 2 Allen Key Screws 2 through pre-drilled holes on each Side L . 3. Use Allen Key 5 to tighten screws. Do not over-tighten. STEP 4 NOTE: The screwdriver is not included in the hardware pack.
- Page 9 ASSEMBLY MODEL # 3AXCART-03 STEP 5 1. Attach Bottom Frame B to Divider F using 3 Allen Key Screws 2 .Tighten Screws 2 by Allen Key 5 . 2. Attach Top Shelfs C to Divider F using 6 Allen Key Bolts 1 ( 3 Bolts / each Shelf ). 3.
- Page 10 ASSEMBLY MODEL # 3AXCART-03 STEP 6 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Top Shelfs C and Bottom Frame B to Sides D & Side E using 12 Allen Key Bolts 1 through indicated holes ( 6 Bolts / each Side ). 2.
- Page 11 ASSEMBLY MODEL # 3AXCART-03 STEP 7 1. Attach Top A to Side E and Side D using 6 Allen Key Bolts 1 ( 3 Bolts / each part ). Use Allen Key 5 to tighten bolts. 2. Attach Top A to Divider F using 3 Allen Key Screws 1 . 3.
- Page 12 ASSEMBLY MODEL # 3AXCART-03 STEP 8 1. Attach the upper Back Panel G to back frame by using Phillips Screws 6 . Only 1 top row of screws ( 7 Screws ) to be screwed in advance. 2. Insert the lower Back Panel H into the slot of Plastic Joining Strip 11 . 3.
- Page 13 ASSEMBLY MODEL # 3AXCART-03 STEP 9 NOTE: The screwdriver is not included in the hardware pack. 1. Attach hinges on Top Shelf C to Flip Down Door J using Phillips Screw 10 . 2. Attach Latch 9 to Divider F and Flip Down Door J using Phillip Screws 8 into guide holes.
- Page 14 ASSEMBLY MODEL # 3AXCART-03 STEP 10 1. Insert assembled drawers into glides on assembled table. 14/18...
- Page 15 ASSEMBLY MODEL # 3AXCART-03 NOTE: Injuries and damage can occur from furniture tip-over. It is important to use the safety bracket included. If the tipping restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP 11 NOTE: The screwdriver is not included in the hardware pack.
-
Page 16: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. - Page 17 Question, problems, missing parts? Before returning please email Customer Support at simpli-home.com/customer-support or call Customer Service at 1-866-0518-0120 ext. 262 Monday to Friday between 9 am – 5 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings 17/18...
- Page 18 Upload an image of our furniture in your home with a short review to our facebook page and have a chance to Win your choice of any one of Simpli Home furniture pieces Free!!! www.facebook.com/simplihomefurnishings (draws monthly – shipping included)
