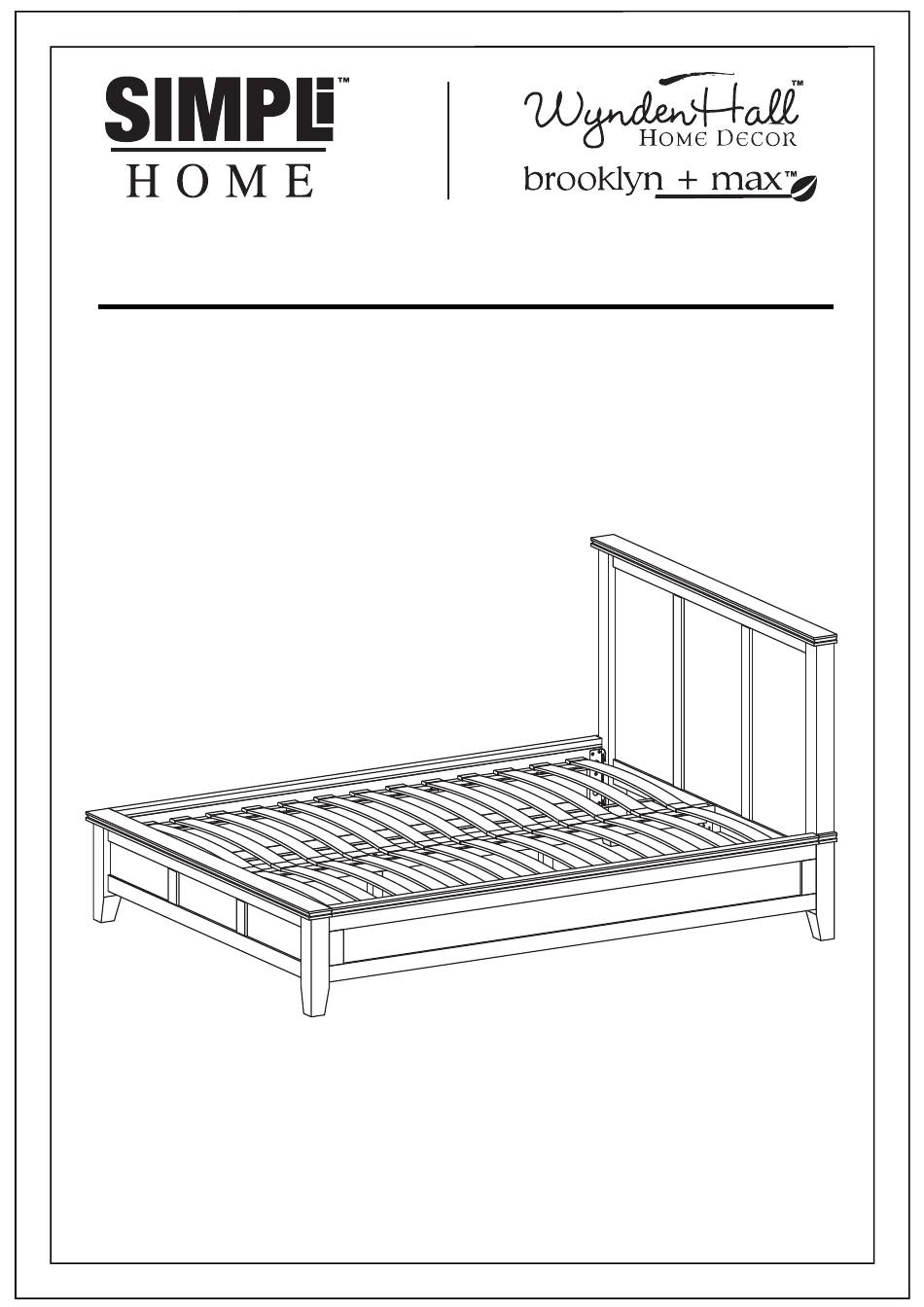

- Page 1 ARTISAN HOLDEN STRATFORD QUEEN BED FRAME MODEL # 3AXCART-01 1/15...
- Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: simpli home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET 2/15...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Parts Description
PRE ASSEMBLY INFORMATION MODEL # 3AXCART-01 PARTS DESCRIPTION FOOTBOARD HEADBOARD QTY 1 QTY 1 SIDE RAIL CENTER RAIL QTY 2 QTY 1 CENTER SUPPORT LEG SLAT QTY 2 QTY 2 SETS NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. -
Page 5: Hardware Description
PRE ASSEMBLY INFORMATION MODEL # 3AXCART-01 HARDWARE DESCRIPTION ALLEN KEY BOLT ALLEN KEY BOLT ALLEN KEY M8 X 25 mm M6 X 50 mm QTY 1 QTY 8 QTY 2 PHILLIPS SCREW PLASTIC CONNECTOR PLASTIC CONNECTOR M4 X 50 mm QTY 2 QTY 26 QTY 13... - Page 6 COMPONENTS – KEY DIAGRAM MODEL # 3AXCART-01 6/15...
- Page 7 ASSEMBLY MODEL # 3AXCART-01 STEP 1 1. Insert 4 Allen Key Bolts 1 into inserted nut on each Headboard A and Footboard B . 2. Use Allen Key 3 to tighten bolts. Only tighten ½ length of Bolts. 7/15...
- Page 8 ASSEMBLY MODEL # 3AXCART-01 STEP 2 1. Attach Sides C to Headboard A and Footboard B by inserting the hooks into the Bolts 1 on Headboard and Footboard. 3. Use Allen Key 3 to tighten bolts. Do not over-tighten. 8/15...
- Page 9 ASSEMBLY MODEL # 3AXCART-01 STEP 3 1. Attach Center Legs E to Center Rail D using 2 Allen Key Bolts 2 ( one Bolt on each Leg ). 2. Use Allen Key 3 to tighten bolts. Do not over-tighten. Note: Levelers on bottom of legs can be adjusted if floor is uneven. 9/15...
- Page 10 ASSEMBLY MODEL # 3AXCART-01 STEP 4 1. Align and insert one end of Center Rail D to support on Footboard B . 2. Align and insert other end of Center Rail D to support on Headboard A . 3. Fix the Center Rail D to Headboard A and Footboard B by Phillips Screws 5 through pre-drilled holes.
- Page 11 ASSEMBLY MODEL # 3AXCART-01 STEP 5 1. Spread the slats evenly onto the bed frame. 2. Insert Plastic Connector s 5 into one end of each Slat F . 3. Insert Plastic Connectors 6 into the other end of connecting both sets Slats F . Note : The pins on the Plastic Connector should be faced down ! 11/15...
- Page 12 ASSEMBLY MODEL # 3AXCART-01 STEP 6 1. Align and insert the pins on Plastic Connector 5 and Plastic Connector 6 into the holes indicated on Side Rail C and Center Rail D . 12/15...
-
Page 13: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. - Page 14 Question, problems, missing parts? Before returning please email Customer Support at simpli-home.com/customer-support or call Customer Service at 1-866-0518-0120 ext. 262 Monday to Friday between 9 am – 5 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings 14/15...
- Page 15 Upload an image of our furniture in your home with a short review to our facebook page and have a chance to Win your choice of any one of Simpli Home furniture pieces Free!!! www.facebook.com/simplihomefurnishings (draws monthly – shipping included)
