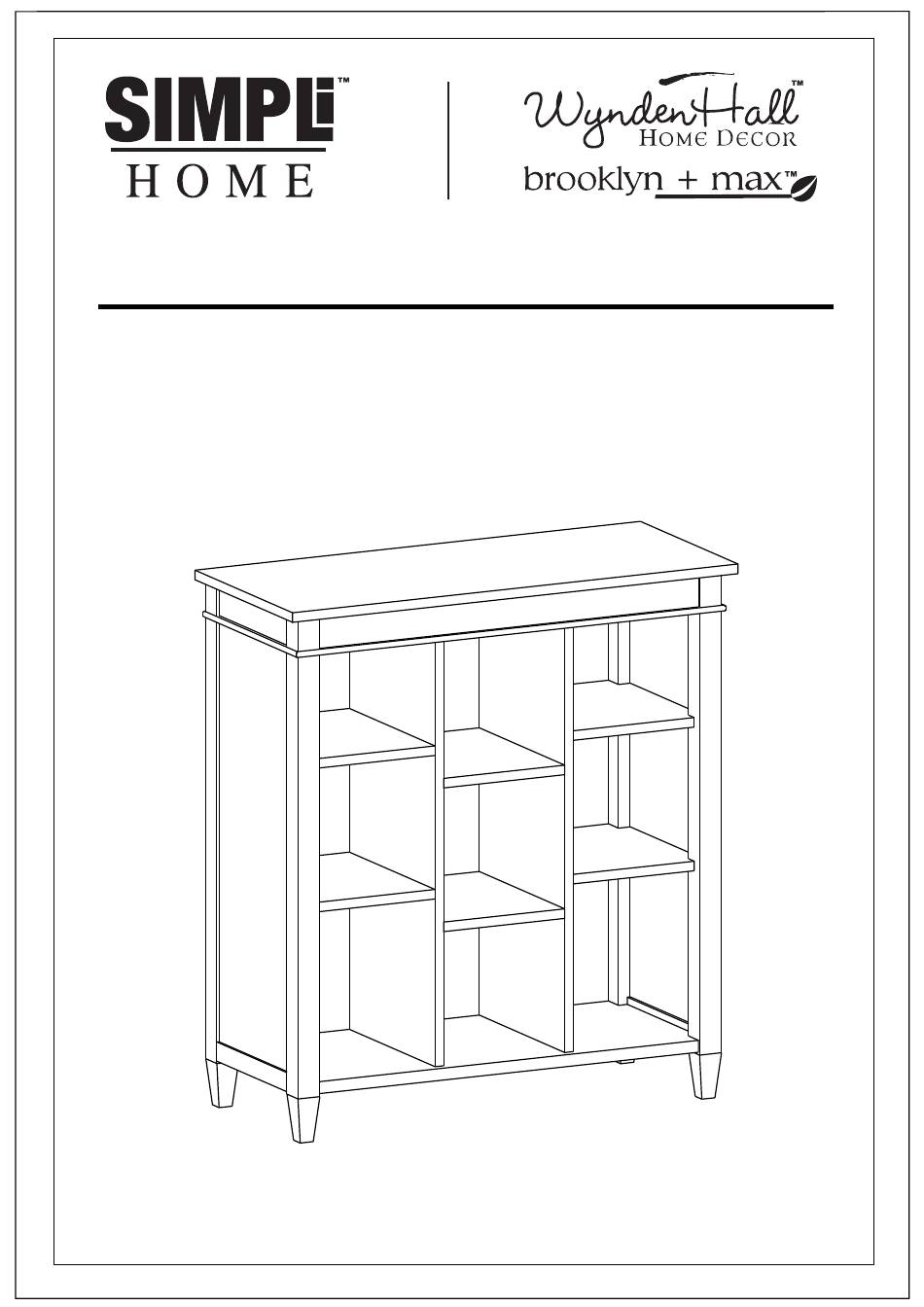

- Page 1 CARLTON / RICHLAND / STERLING 9 CUBE BOOKCASE & STORAGE UNIT MODEL # 3AXC CRL-0 1/13...
- Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: simpli home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET 2/13...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. - Page 4 MODEL # 3AXCC - RL 07 PRE ASSEMBLY INFORMATION PARTS DESCRIPTION SIDE QTY 1 QTY 1 PAIR DIVIDER BOTTOM SHELF QTY 1 PAIR QTY 1 SIDE SHELF SHELF QTY 2 PAIRS QTY 2 BACK PANEL FRONT BAR QTY 1 SET QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.
-
Page 5: Hardware Description
PRE ASSEMBLY INFORMATION MODEL # 3AXCC - RL 07 HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN M6 X 30 mm CAM LOCK QTY 18 QTY 6 SETS PHILLIPS SCREW ROUND HEAD ALLEN KEY M4 X 15 mm QTY 1 QTY 0 3 WOOD DOWEL 8 X 30 mm... - Page 6 COMPONENTS – KEY DIAGRAM MODEL # 3AXCC - RL 07 6/13...
- Page 7 ASSEMBLY MODEL # 3AXCC - RL 07 STEP 1 1. Insert Wood Dowels 5 into pre-drilled holes of Divider C . 2. Attach Dividers C to Bottom Shelf D using Allen Key Screws 1 through pre-drilled holes. STEP 2 1. Insert Wood Dowels 5 into pre-drilled holes of Bottom Shelf D and Front Bar H . 2.
- Page 8 ASSEMBLY MODEL # 3AXCC - RL 07 STEP 3 1. Insert 2 Dowels 5 into top corner of each Side B . 2. Align pre-drilled holes on bottom corner of top A with Dowels 5 in Sides B . 3. Using 12 Allen Key Screws 1 attach Top A to Sides B and Dividers C ( 3 Screws / each part ).
- Page 9 ASSEMBLY MODEL # 3AXCC - RL 07 STEP 5 1. Use Shelf Supports 6 for each shelf E F in desired location. 2. 2 Shelf Supports 6 may be used on back top of each shelf E F as a tipping restraint. 9/13...
- Page 10 ASSEMBLY MODEL # 3AXCC - RL 07 NOTE: Injuries and damage can occur from furniture tip-over. It is important to use the safety bracket included. If the tipping restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP 6 NOTE: The screwdriver is not included in the hardware pack.
-
Page 11: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. - Page 12 Question, problems, missing parts? Before returning please email Customer Support at simpli-home.com/customer-support or call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 5 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings 12/13...
- Page 13 Upload an image of our furniture in your home with a short review to our facebook page and have a chance to Win your choice of any one of Simpli Home furniture pieces Free!!! www.facebook.com/simplihomefurnishings (draws monthly – shipping included)
