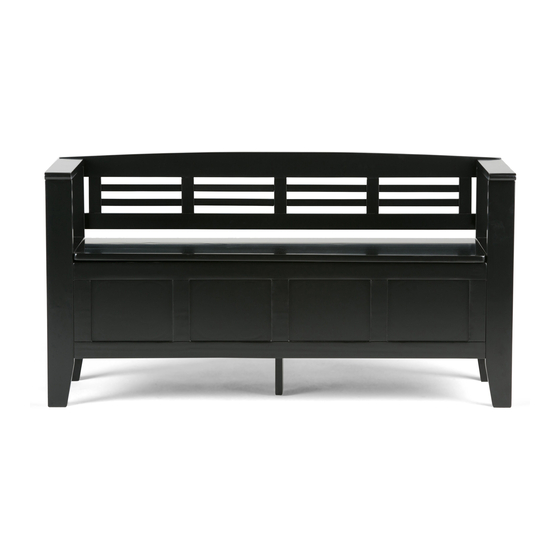

- Page 1 SIMP HOME L I F E B Y D E S I G N ADAMS / CHANDLER / LAKEWOOD ENTRYWAY STORAGE BENCH MODEL # 3AXCADABEN-B 1/15...
- Page 2 SIMP HOME L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. - Page 5 MODEL # 3AXCADABEN-B PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION SEAT LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 DIVIDER FRONT BACKREST QTY 1 QTY 1 QTY 1 BACK BOTTOM PANEL BOTTOM SUPPORT LEG QTY 1 QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.
-
Page 6: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # 3AXCADABEN-B HARDWARE DESCRIPTION ALLEN KEY BOLT ALLEN KEY BOLT ALLEN KEY SCREW M6 X 40 mm M6 X 30 mm M6 x 30 mm QTY 8 QTY 4 QTY 2 WOOD DOWEL LID SUPPORT ALLEN KEY 8 X 30 mm QTY 1 QTY 1... - Page 7 COMPONENTS – KEY DIAGRAM MODEL # 3AXCADABEN-B 7/15...
- Page 8 ASSEMBLY MODEL # 3AXCADABEN-B STEP 1 Hinge Small pre-drilled holes 1. Insert Dowel 6 into Divider C . 2. Use rubber mallet to tap Wood Dowels 6 into holes securely. 1/2 length of dowels should be exposed. 3. Align drilled holes on bottom of Back F with Dowel 6 on Divider C . Note: please pay close attention to the location of the 2 small guide holes which accommodate the lid support.
- Page 9 ASSEMBLY MODEL # 3AXCADABEN-B STEP 2 1. Attach Bottom Panel G to Divider C & Back F by sliding on the gap between Divider C & the long rail on Back F . 9/15...
- Page 10 ASSEMBLY MODEL # 3AXCADABEN-B STEP 3 NOTE: The screwdriver is not included in the hardware pack. 1. Insert Dowel 6 into Divider C . 2. Use rubber mallet to tap Wood Dowels 6 into holes securely. 1/2 length of dowels should be exposed.
- Page 11 ASSEMBLY MODEL # 3AXCADABEN-B STEP 4 1. Insert 4 Dowels 6 into each Side AL & AR at specified location. 2. Use rubber mallet to tap Wood Dowels 6 into holes securely. 1/2 length of dowels should be exposed. 3. Align drilled holes on side bars of Front D & Back F with Dowel 6 on each Side AL &...
- Page 12 ASSEMBLY MODEL # 3AXCADABEN-B STEP 5 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Bottom Support Leg H into pre-drilled holes of Bottom Panel G using 4 Phillips Screws 8 . 2. Use Phillips screwdriver to tighten Screws. Do not over-tighten. 12/15...
- Page 13 ASSEMBLY MODEL # 3AXCADABEN-B STEP 6 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Seat B to 3 Hinges on Back F using Phillips Screws 7 ( using guide holes underneath of Seat ). 2. Use phillips screwdriver to tighten Screws. Do not over-tighten. STEP 7 1.
- Page 14 ASSEMBLY MODEL # 3AXCADABEN-B STEP 8 1. Attach Backrest E to back of Sides AL & AR using Allen Key Bolt 2 through drilled holes from Backrest E . 2. Use Allen Key 5 to tighten Bolts. Do not over-tighten. 14/15...
-
Page 15: Warranty
L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
