Summary of Contents for Simpli Home Arlington 3AXCARLBEN-MB

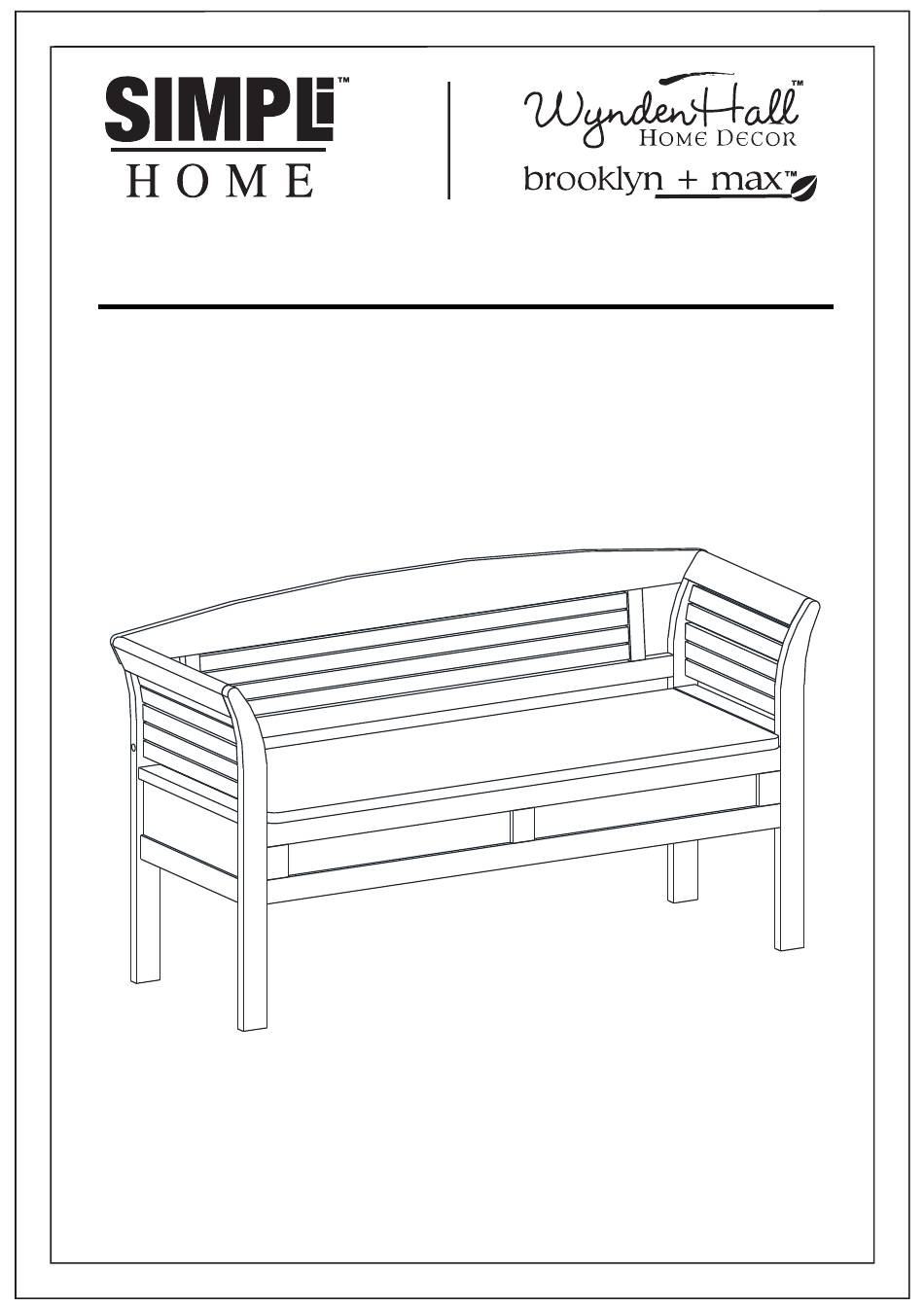

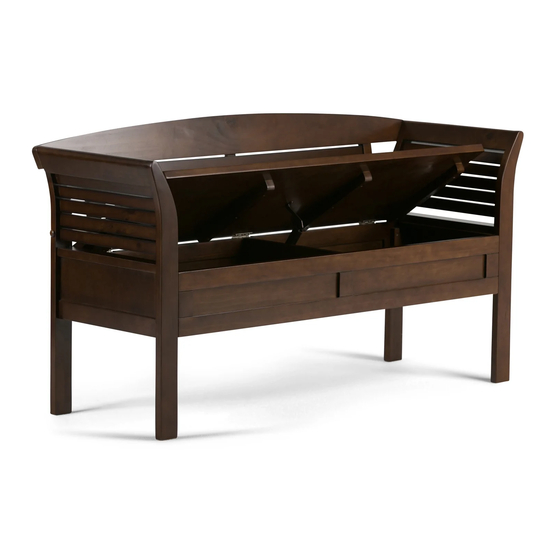

- Page 1 ARLINGTON / RALEIGH / PATTERSON ENTRYWAY STORAGE BENCH MODEL # 3AXCARLBEN-MB 1/17...
- Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US AT: simpli-home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER WHERE THE ITEM WAS PURCHASED FROM 2/17...
- Page 3 ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page for a chance to Win up to $3000 of Simpli Home furniture!!! www.facebook.com/simplihomefurnishings 3/17...
-
Page 4: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 5: Pre-Assembly Information
MODEL # 3AXCARLBEN-MB PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION SIDE SEAT QTY 1 PAIR QTY 1 DIVIDER FRONT QTY 1 QTY 1 BACKREST BACK QTY 1 QTY 1 BOTTOM PANEL QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. - Page 6 PRE-ASSEMBLY INFORMATION MODEL # 3AXCARLBEN-MB HARDWARE DESCRIPTION ALLEN KEY BOLT ALLEN KEY BOLT ALLEN KEY SCREW M6 X 40 mm M6 X 30 mm M6 x 30 mm QTY 8 QTY 4 QTY 2 WOOD DOWEL ALLEN KEY LID SUPPORT 8 X 30 mm QTY 1 QTY 1...
- Page 7 COMPONENTS – KEY DIAGRAM MODEL # 3AXCARLBEN-MB 7/17...
- Page 8 ASSEMBLY MODEL # 3AXCARLBEN-MB STEP 1 Hinge Small pre-drilled holes 1. Insert Dowel 6 into Divider C . 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Align pre-drilled holes on bottom of Back F with Dowel 6 on Divider C . ( Note: please pay close attention to the location of the 2 small guide holes which accommodate the lid support.
- Page 9 ASSEMBLY MODEL # 3AXCARLBEN-MB STEP 2 1. Attach Bottom Panel G to Divider C & Back F by sliding on the gap between Divider C & the long rail on Back F . 9/17...
- Page 10 ASSEMBLY MODEL # 3AXCARLBEN-MB STEP 3 NOTE: The screwdriver is not included in the hardware pack. 1. Insert Dowel 6 into Divider C . 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 11 ASSEMBLY MODEL # 3AXCARLBEN-MB STEP 4 1. Insert 2 Dowels 6 into each Side A at specified location. 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Align pre-drilled holes on side bars of Front D & Back F with Dowel 6 on each Side A . 4.
- Page 12 ASSEMBLY MODEL # 3AXCARLBEN-MB STEP 5 NOTE: The screwdriver is not included in the hardware pack. 1. Use Phillips screwdriver to attach Phillips Screw Round Head 11 into guide holes on Bottom Panel G . 12/17...
- Page 13 ASSEMBLY MODEL # 3AXCARLBEN-MB STEP 6 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Seat B to 3 hinges on Back F using Phillips Screws 7 ( using guide holes underneath of Seat ). 2. Use phillips screwdriver to tighten Screws. Do not over-tighten. STEP 7 1.
- Page 14 ASSEMBLY MODEL # 3AXCARLBEN-MB STEP 8 1. Attach Backrest E to back of Sides A using Allen Key Bolt 2 into pre-drilled holes. 2. Use Allen Key 4 to tighten Bolts. Do not over-tighten. 14/17...
- Page 15 ASSEMBLY MODEL # 3AXCARLBEN-MB STEP 9 1. Attach Backrest E to back of Side A using Allen Key Bolts 10 into pre-drilled holes on Side A . 2. Insert Cross Nuts 10 into pre-drilled holes in Backrest E with the slot facing out. Use a flathead Screwdriver to turn it to align with the Bolts 10 .
-
Page 16: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. - Page 17 Question, problems, missing parts? Before returning your product please email Customer Support at simpli-home.com/customer-support or call Customer Support at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings...
