NM-VIDDOME
B/W
Color
This general purpose security camera mounts to walls or ceilings and is viewed with a security monitor. To view the camera
on a single standard television, use the TV's composite RCA Video Input jack.
Product Includes:
1. Camera Assembly (Camera Lens, Camera Dome, Camera Base, Camera Bracket,
Video Connector, Power Connector).
2. 12V DC 300mA Power Transformer, Center Conductor Positive.
3. Mounting hardware (Mounting Screws).
Camera Assembly
Available in Black:
B/W camera
Color camera
Day/Night Color Housing
NM-VIDDOME-BB
NM-VIDDOME-HB
NM-VIDDOME-CB
Camera Dome
Rotate to match camera field of
view. Twist and remove to access
Camera Bracket.
Video Connector
Female BNC connector.
FEATURES
Excellent image quality
Compact and lightweight
Internally routed cables
Mounts directly to walls and ceilings
Works in low light conditions
Adjustable camera angles
Tamper resistant wiring
Includes power supply
1 year limited warranty
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
Security Video Camera
Day/Night
Color
Black
Power Connector
12V DC 300mA, center positive.
SPECIFICATIONS
Camera Lens:
Image Sensor:
Resolution:
Field of View:
Min Illumination:
Infrared Sensitivity:
Output Connector:
Power Requirement:
Power Connector:
Assembly Size:
Mounting Holes:
Weight:
Indoor Dome
Install on wall or ceiling.
Camera Bracket
Adjust for desired field of view.
Comes prefocused from
factory but can be adjusted
by rotating in either direction.
B/W
Color
3.6mm
3.7mm
1/3" CCD
1/4" CCD
350+ lines
470 lines
72˚ Horizontal
54˚ Horizontal
0.7 Lux F2.0
0.5 Lux F1.2
Yes
No
Female BNC, 75 Ohm
12V DC, 300mA
5.5mm OD, 2.1mm ID, center positive
3.5" dia. x 3.25" high
2.25" centers
6.5 oz.
(subject to change without notice)
Camera Base
Camera Lens
Day/Night Color
3.6mm
1/3" CCD
470 lines
72˚ Horizontal
0.3 Lux F1.2
Yes
MAN-VIDDOME
REV0701A
Advertisement
Related Manuals for NetMedia NM-VIDDOME
Summary of Contents for NetMedia NM-VIDDOME
-

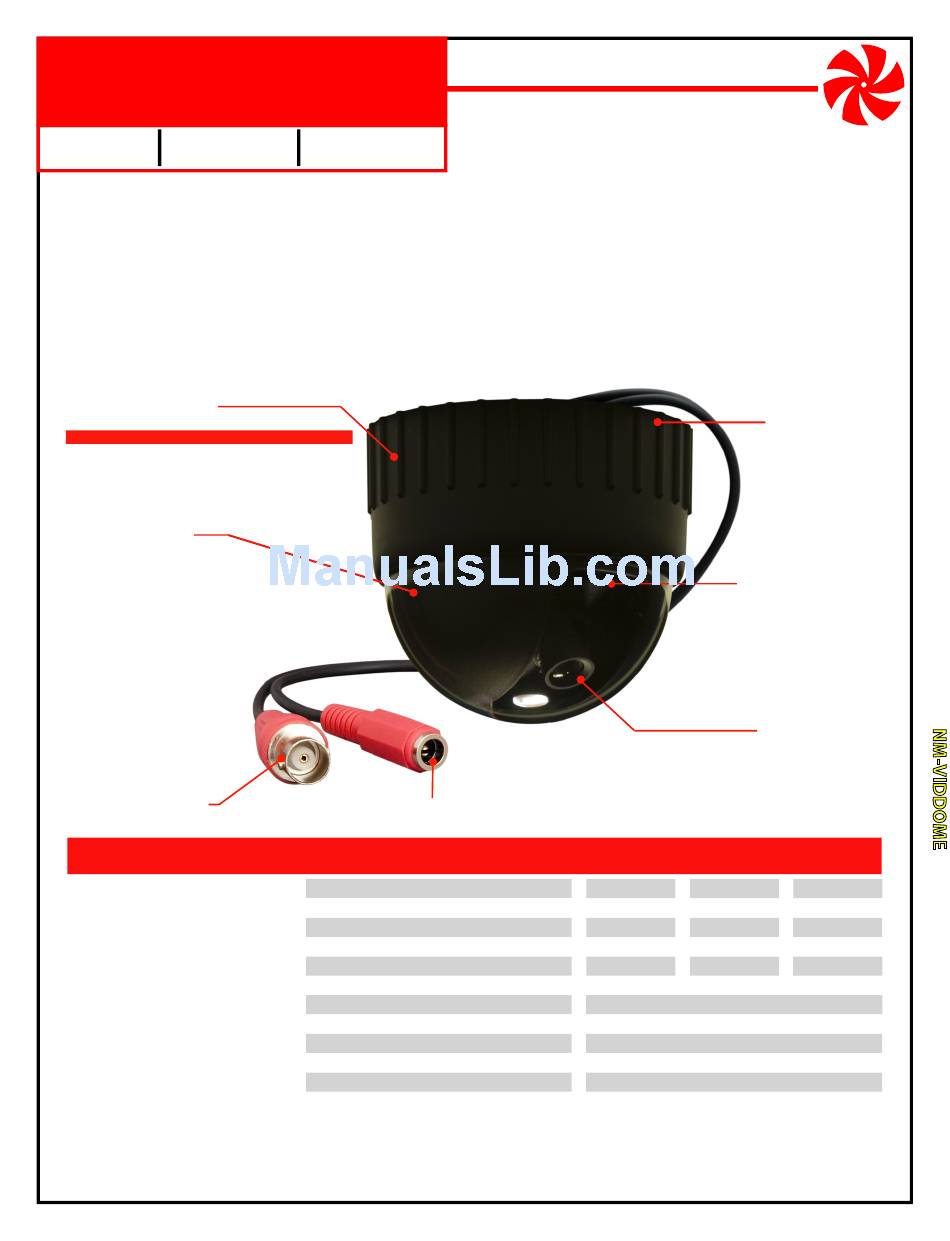

Page 1: Camera Assembly
