NetMedia NM-VIDCAM Specifications

NM-VIDCAM
B/W Color

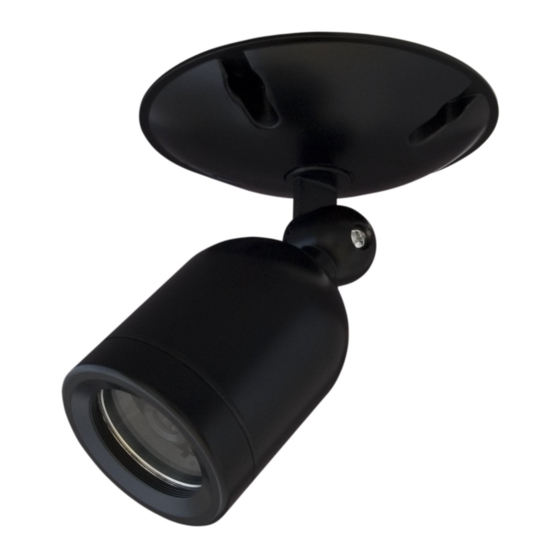

This general purpose security camera mounts to a typical round 4 inch junction box and is viewed with a security monitor.
Other junction boxes from your local hardware store may also be used after replacing the round base with another that has
a 1/2 inch diameter hole for the elbow bracket. To view the camera on a single standard television, use the TV's composite
RCA Video Input jack.
Product Includes:
1. Camera Assembly (Camera, Housing, Housing Cap, Elbow Bracket,
Locking Ring, Base, Gasket, Video Connector, Power Connector).
2. 12V DC 300mA Power Transformer, Center Conductor Positive.
3. Mounting hardware (Mounting Screws, Grounding Strap, Screw and
Compression Ring).
Housing
Available in choice of colors:
B/W camera Color camera Day/Night Color Housing
NM-VIDCAM-BW NM-VIDCAM-HW
NM-VIDCAM-CW
NM-VIDCAM-BB NM-VIDCAM-CB NM-VIDCAM-HB
NM-VIDCAM-BI NM-VIDCAM-CI NM-VIDCAM-HI
NM-VIDCAM-BS NM-VIDCAM-HS
NM-VIDCAM-CS
Elbow Bracket
Adjusts camera angle at base,
screw, and housing. Installs in
1/2" junction box covers.
Video Connector
Female BNC connector.
FEATURES
Excellent image quality
Tough billet aluminum housing
Weather resistant enclosure
Internally routed cables
Mounts to standard electrical fixtures
Mounts directly to walls and ceilings
Works in low light conditions
Accepts photo lens accessories
Adjustable camera angles
Tamper resistant wiring
Includes power supply
1 year limited warranty
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
Security Video Camera
Indoor/Outdoor Weather Resistant
Day/Night
Color
Housing is adjustable
180˚ in either direction.
White
Black
Ivory
Silver

Power Connector

12V DC 300mA, center positive.
SPECIFICATIONS

Camera Lens:

Image Sensor:
Resolution:
Field of View:
Min Illumination:
Infrared Sensitivity:
Output Connector:
Power Requirement:
Power Connector:
External Accessory Threads:
Housing Size:
Base Size:
Mounting Holes:
Weight:
Comes prefocused from
factory but can be adjusted
by rotating in either direction.

Camera Bracket

Slot indicates image bottom;
rotate to adjust camera.
Externally threaded to accept
37mm lenses and accessories.
Base, Gasket & Screws
Mount to round 4" junction box.
Secures elbow bracket to
base at desired position.
B/W Color
3.6mm 3.7mm
1/3" CCD 1/4" CCD
350 lines 470 lines
72˚ Horizontal 54˚ Horizontal
0.7 Lux F2.0 0.5 Lux F1.2
Yes No
Female BNC, 75 Ohm
12V DC, 300mA
5.5mm OD, 2.1mm ID, center positive
37mm x .75 pitch
3.13" dia., 4" long
4.5" dia., 0.75" high, 0.5" hole
3.5" centers
1 lb.
(subject to change without notice)
Camera Lens
Housing Cap
Locking Ring
Day/Night Color
3.6mm
1/3" CCD
470 lines
72˚ Horizontal
0.3 Lux F1.2
Yes
MAN-VIDCAM REV0612A
