NetMedia NM-VIDCAM User Manual

NM-VIDVCAM
Varifocal Color

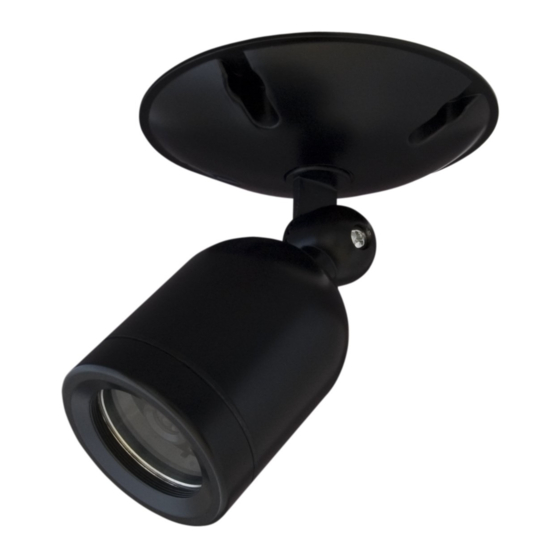

The NetMedia VIDVCAM Varifocal color camera manually zooms from 3.3mm to 8.0mm in focal length to meet a variety of
surveillance requirements. It mounts to a typical round 4 inch junction box and is viewed with a security monitor. Other junction
boxes from your local hardware store may also be used after replacing the round base with another that has a 1/2 inch diameter
hole for the elbow bracket. To view the camera on a single standard television, use the TV's composite RCA Video Input jack.

Product Includes:

1. Camera Assembly (Camera, Housing, Varifocal Lens, Lens Casing, Elbow
Bracket, Locking Ring, Base, Gasket, Video Connector, Power Connector).
2. 12V DC 300mA Power Transformer, Center Conductor Positive.
3. Mounting hardware (Mounting Screws, Grounding Strap, Screw and
Compression Ring).

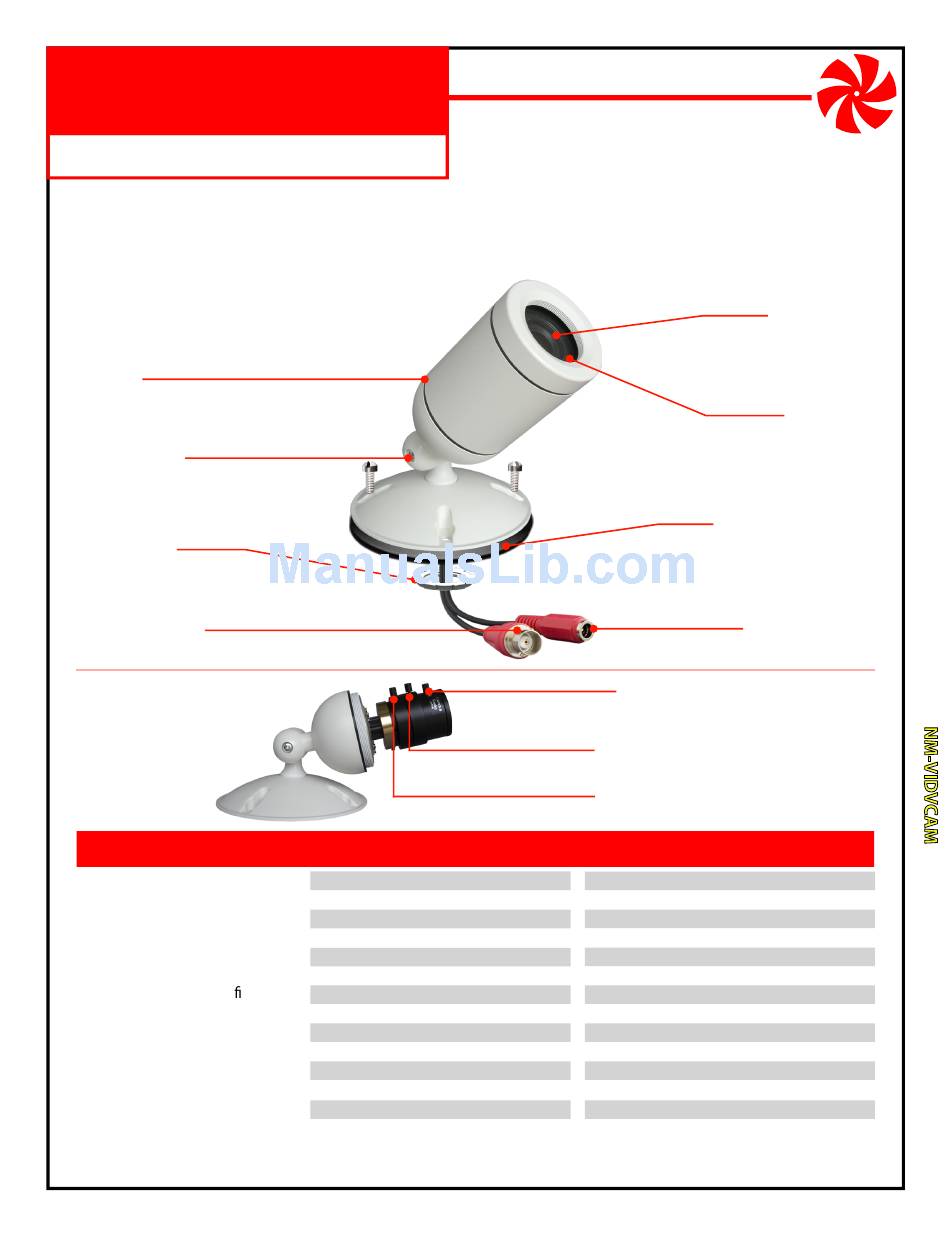

Housing
Available in White: NM-VIDCAM-VW.
Connects to Lens Casing at this point.
Elbow Bracket
Adjusts camera angle at base,
screw, and housing. Installs in
1/2" junction box covers.
Locking Ring
Secures elbow bracket to
base at desired position.
Video Connector
Female BNC connector.

FEATURES

3.3mm to 8.0mm zoom lens
Excellent image quality
Tough billet aluminum housing
Weather resistant enclosure
Internally routed cables
Mounts to standard electrical xtures
Mounts directly to walls and ceilings
Works in low light conditions
Accepts photo lens accessories
Adjustable camera angles
Tamper resistant wiring
Includes power supply
1 year limited warranty
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
Security Video Camera
Indoor/Outdoor Weather Resistant

SPECIFICATIONS

Camera Lens:
Image Sensor:
Resolution:
Field of View:
Min Illumination:
Infrared Sensitivity:
Output Connector:
Power Requirement:

Power Connector:

External Accessory Threads:
Housing Size:
Base Size:
Mounting Holes:
Weight:
Not shown - manually adjust
(focal length 3.3mm to 8.0mm).
Remove to access Varifocal Lens.
Threaded to accept external
37mm lenses and accessories.
Base, Gasket & Screws
Mount to round 4" junction box.
12V DC 300mA, center positive.

Iris Adjustment

Open (O) in darkness or close (C) in
brightness (usually not necessary).

Focus Adjustment

Sharpen image after setting zoom.

Zoom Adjustment

Zoom in (T) or out (W) as desired.
Color
3.3mm to 8.0mm Varifocal
1/3" Sony® Super HAD CCD™
470 lines
77˚ to 35˚ Horizontal
0.3 Lux F1.2
No
Female BNC, 75 Ohm
12V DC, 300mA
5.5mm OD, 2.1mm ID, center positive
37mm x .75 pitch
2.3" dia., 4.2" long
4.5" dia., 0.75" high, 0.5" hole
3.5" centers
1 lb.
Varifocal Lens
focus, iris, and zoom
Lens Casing
Power Connector
(subject to change without notice)
MAN-VIDVCAM REV0712A
