NetMedia NM-POCBALL Specifications

NM-POCBALL
B/W Color
This general purpose surveillance camera utilizes a built-on NetMedia Power over Coax (PoC) Video Encoder and external
PoC Video Decoder to exchange power and video across a single coax cable, such as RG6. There is no need to run multiple
cables to the camera location! It mounts to a typical rectangular junction box and is viewed with a security monitor or
television. To view the camera on a single standard television, use the TV's composite RCA Video Input jack.
Product Includes:
1. Camera Assembly (Camera, Housing, Housing Cap, Elbow Bracket,
Locking Ring, Base Plate, PoC Video Encoder, F-Connector).
2. NetMedia PoC Video Decoder and 24V DC 200mA Power Transformer.
3. Mounting Screws and RCA Video Cable.
PoC Video Encoder
Not shown - Built onto unit, it
exchanges power and video with
Decoder for One Wire Video™ on coax.
Locking Ring
Secures elbow bracket to
Base Plate at desired position.
Base Plate
Supports PoC Encoder and cable.
Mount to rectangular junction box.
F-Connector
Connects to camera
F-Connector with a single
coax such as RG6.
Power Input
Connects to 24V DC wall
transformer (included)
and AC outlet.
FEATURES
PoC Video Encoder built into camera
Includes PoC Video Decoder module
One Wire Video™ Installation
Uses one coax cable to camera
Excellent image quality
Tough billet aluminum housing
Internally routed cables
Mounts to standard electrical fixtures
Works in low light conditions
Adjustable camera angles
Tamper resistant wiring
Includes power supply
1 year limited warranty
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
Power over Coax Camera
Day/Night
Color
PoC Video Decoder (Included)
SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS
Camera Lens:
Image Sensor:
Resolution:
Field of View:
Min Illumination:
Infrared Sensitivity:
Camera/Decoder Cable Connector:
Camera/Decoder Cable Type:
Camera/Decoder Cable Distance Range:
Camera/Decoder Video Signal:
PoC Decoder Video Output:
PoC Decoder Video Output Connector:
PoC Decoder Power Input:
PoC Decoder Power Connector:
PoC Decoder Size:
PoC Decoder Weight:
Housing Size:
Base Size:
Mounting Holes:
Assembly Weight:

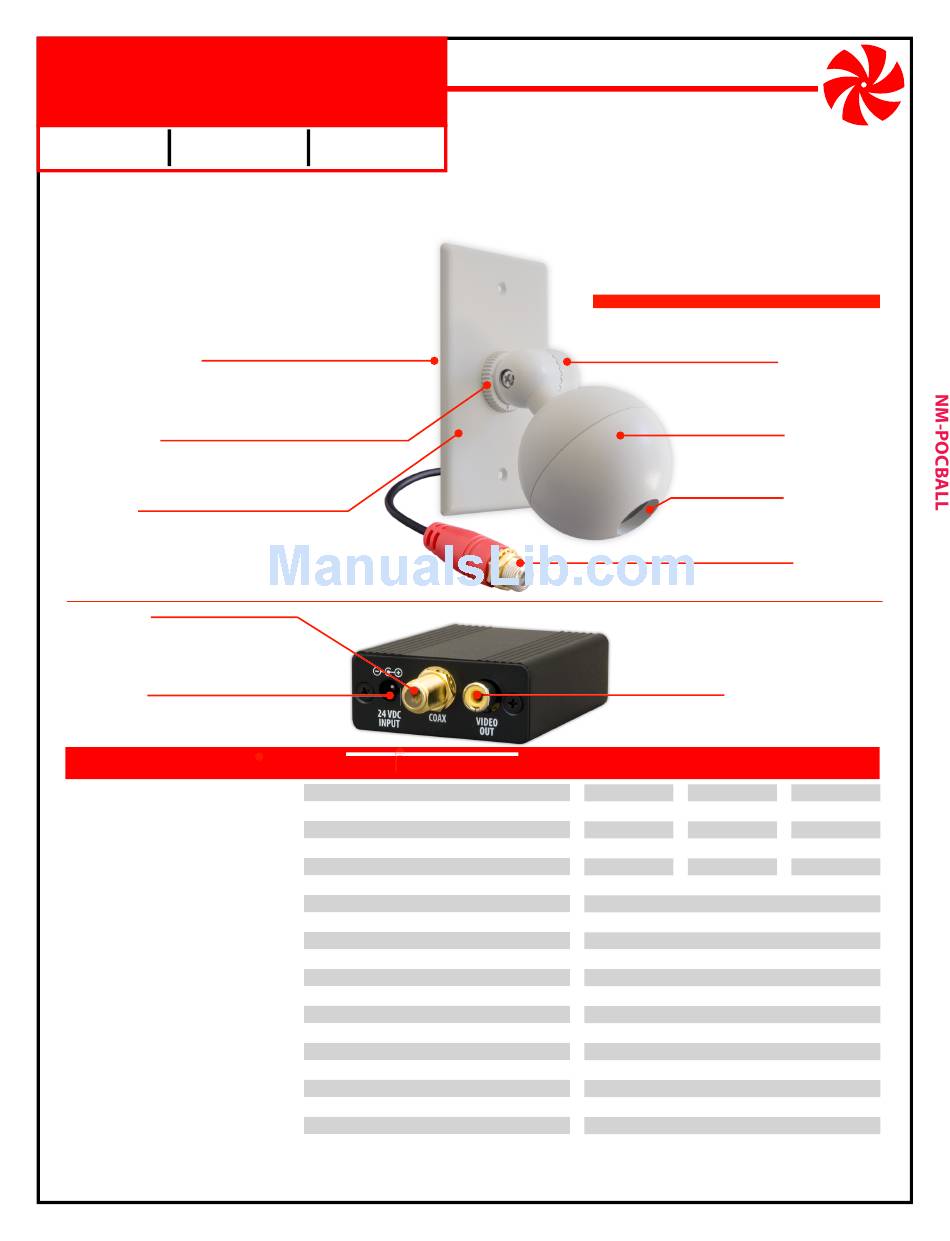

Indoor Ball Camera
Camera Assembly
Available in UV Paintable White
B/W camera Color camera Day/Night Color Housing
NM-POCBALL-BW NM-POCBALL-CW NM-POCBALL-HW
Adjusts camera angle at Wall
Plate, screw, and Housing.
Remove to adjust focus.
Factory set - rotates in either
direction to adjust focus.
Transmits both power and
video across a single coax.
RCA Video Out
Connects to viewing
device such as monitor,
DVR, TV, or modulator.
B/W Color
3.6mm 3.7mm
1/3" CCD 1/4" CCD
350 lines 470 lines
72˚ Horizontal 54˚ Horizontal
0.7 Lux F2.0 0.5 Lux F1.2
Yes No
Female F-Connector
Coax: RG6 quad shield recommended
Up to 100'
Proprietary
Composite
Female RCA
24V DC, 200mA
5.5mm OD, 2.1mm ID, center positive
3.2" long, 2.2" wide, 0.9" thick
3 oz.
2.33" dia.
4.5" long x 2.75" wide
3.25" centers
1 lb.
(subject to change without notice)
White
Elbow Bracket
Housing Cap
Camera Lens
F-Connector
Day/Night Color
3.6mm
1/3" CCD
470 lines
72˚ Horizontal
0.3 Lux F1.2
Yes
MAN-POCBALL REV0703A
