NetMedia iViewHD-D1 Quick Manual

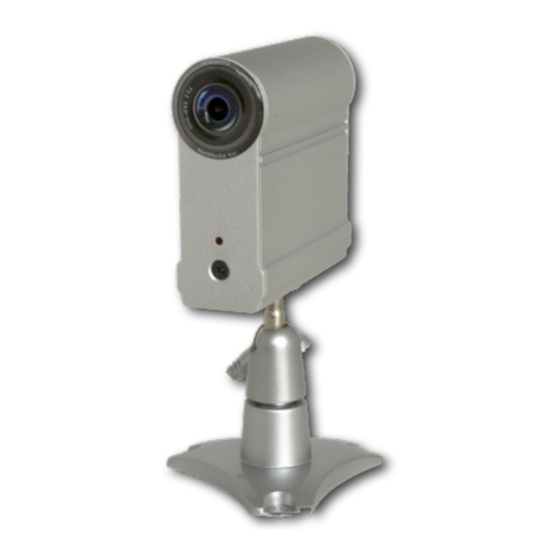

iViewHD-D1
The NetMedia® iViewHD™ Extended D1 Resolution Internet Protocol (IP) camera connects to a Power
over Ethernet (PoE) network switch, such as the NetMedia POEmax, for distribution across a local com-
puter network or The Internet. It provides live viewing of its Motion JPEG (MJPEG) images through
various web browsers such as Microsoft Internet Explorer, Apple Safari, Mozilla Firefox, and Google
Chrome. Live viewing plus recording and playback are also available through Network Video Recorders
(NVRs) that support MJPEG video streams and manual/custom/generic camera command strings.

Product Includes:

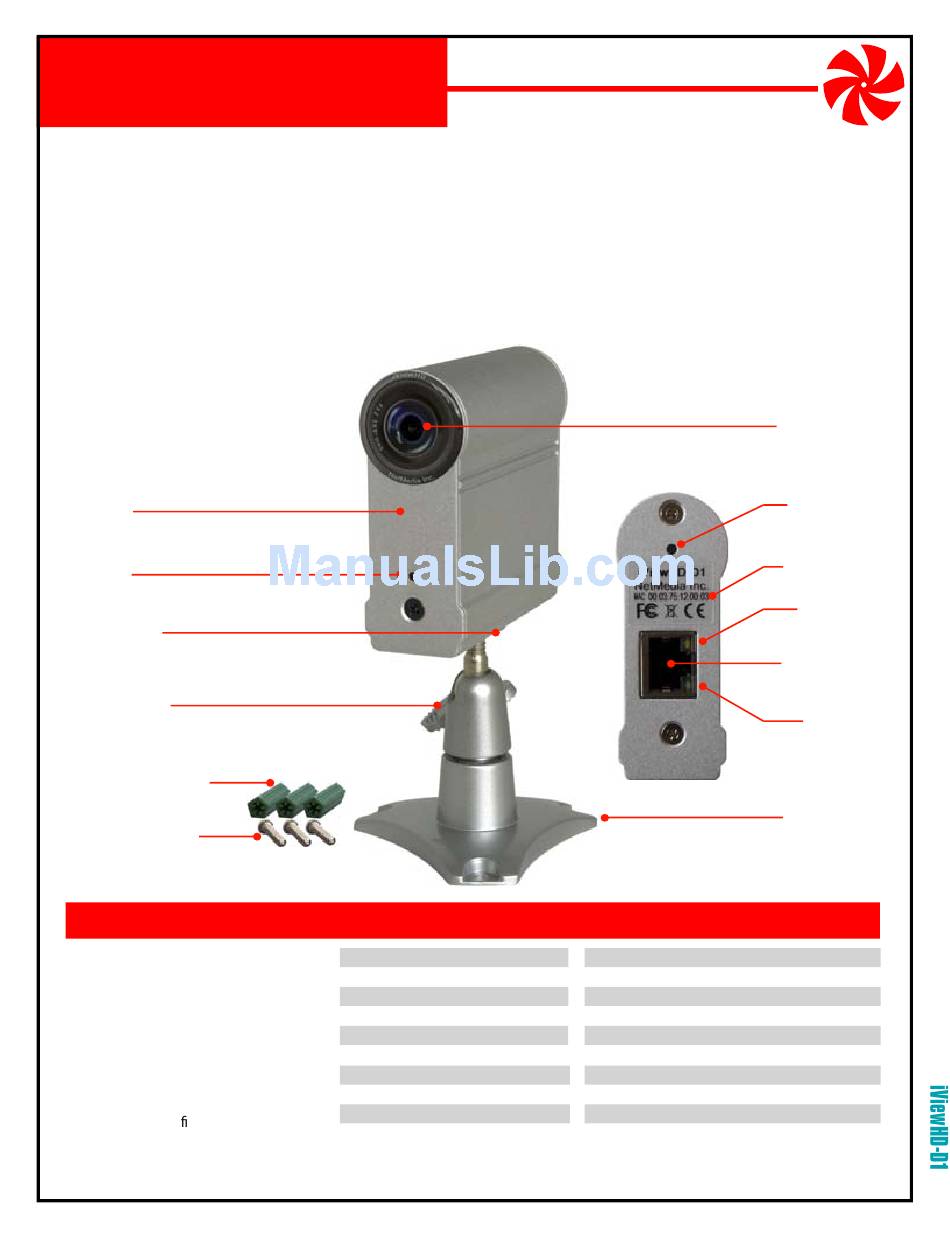

1. iViewHD Camera Housing (Camera
Lens, Ethernet Jack, Reset Button,
Speaker, Power LED).
2. Mounting Hardware (Slide Mount,
Base, Screws, Anchors).
Speaker
(Inside) Beeps when powered on.
Red LED
Indicates Power.
Slide Mount
Slide Rail and Slide Nut attach
and adjust camera on base.
Swivel Screw
Adjusts camera angle.
Mounting Anchors
Secure screws in walls.
Mounting Screws
Fasten Camera Base to surface.
FEATURES
High resolution Extended D1 720x536 image
Variable resolution 720x536 to 160x120
Power over Ethernet (PoE) operation
IEEE 802.3af compliant
Requires no power supply
Electronic exposure and white balance
Up to 4 IP addresses - DHCP, Link Local, 2 Static
Rugged aluminum housing
FCC Class B and CE certi cation
One year limited warranty
© 2009 NetMedia Inc. All rights reserved. NetMedia and iViewHD are either registered trademarks or trademarks of NetMedia, Inc. Any other trademarks or trade names mentioned are the property of their respective owners.
NetMedia Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
720x536 Extended D1 Resolution
SPECIFICATIONS
Camera Lens:
Image Sensor:
Output Connector:
Supported Formats:
Supported Resolutions:
Power Requirement:
Housing Size:
Housing Weight:
Base Size:
Base Weight:
IP Security Camera
Please visit iViewHD.com
for full User Manual and
camera firmware updates.
F3.2, 59.9
1/4" CMOS
TCP/IP Power over Ethernet RJ-45
Motion JPEG (MJPEG), Still JPEG
720x536, 640x480, 400x298, 320x240, 160x120
Power over Ethernet (PoE) 2.5 Watts
2.9" long x 1.1" wide x 2.75" high
4 oz.
2.7"wide x 2.7" high
3 oz.
Camera Lens
F3.2, 59.9° diagonal angle
Reset Button
Press during power
up to reset camera.
MAC Address
Unique Ethernet ID.
Yellow LED
Indicates network
PoE power.
Ethernet Jack
RJ-45 for video and power
via PoE network switch.
Green LED
Indicates network data link.
Camera Base
Mounts camera to surface.
diagonal
°
(subject to change without notice)
MAN-iViewHD-D1 REV0912A
