NetMedia NM-UTPDOME Specifications

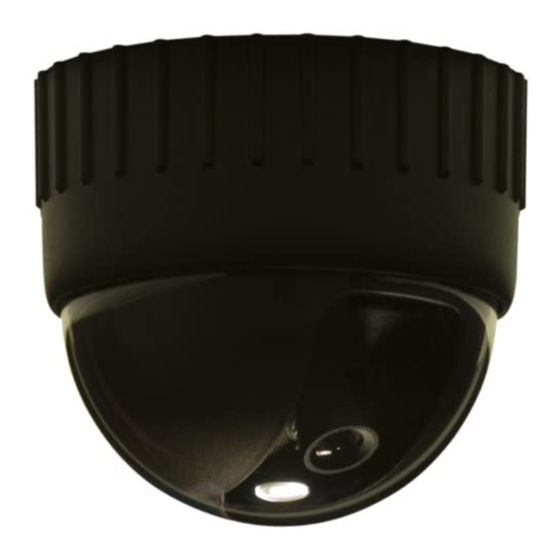

NM-UTPDOME
B/W Color
This general purpose surveillance camera utilizes a built-in NetMedia UTP Video Encoder and external UTP Video Decoder to
exchange power and video across Unshielded Twisted Pair (UTP) cable, such as CAT5.There is no need to run multiple cables to
the camera location! It mounts to walls or ceilings and is viewed with a security monitor or television. To view the camera on a
single standard television, use the TV's composite RCA Video Input jack.
Product Includes:
1. Camera Assembly (Camera Lens, Camera Dome, Camera Base, Camera Bracket,
UTP Video Encoder, UTP Jack).
2. NetMedia UTP Video Decoder and 24V DC 200mA Power Transformer.
3. Mounting Screws and RCA Video Cable.

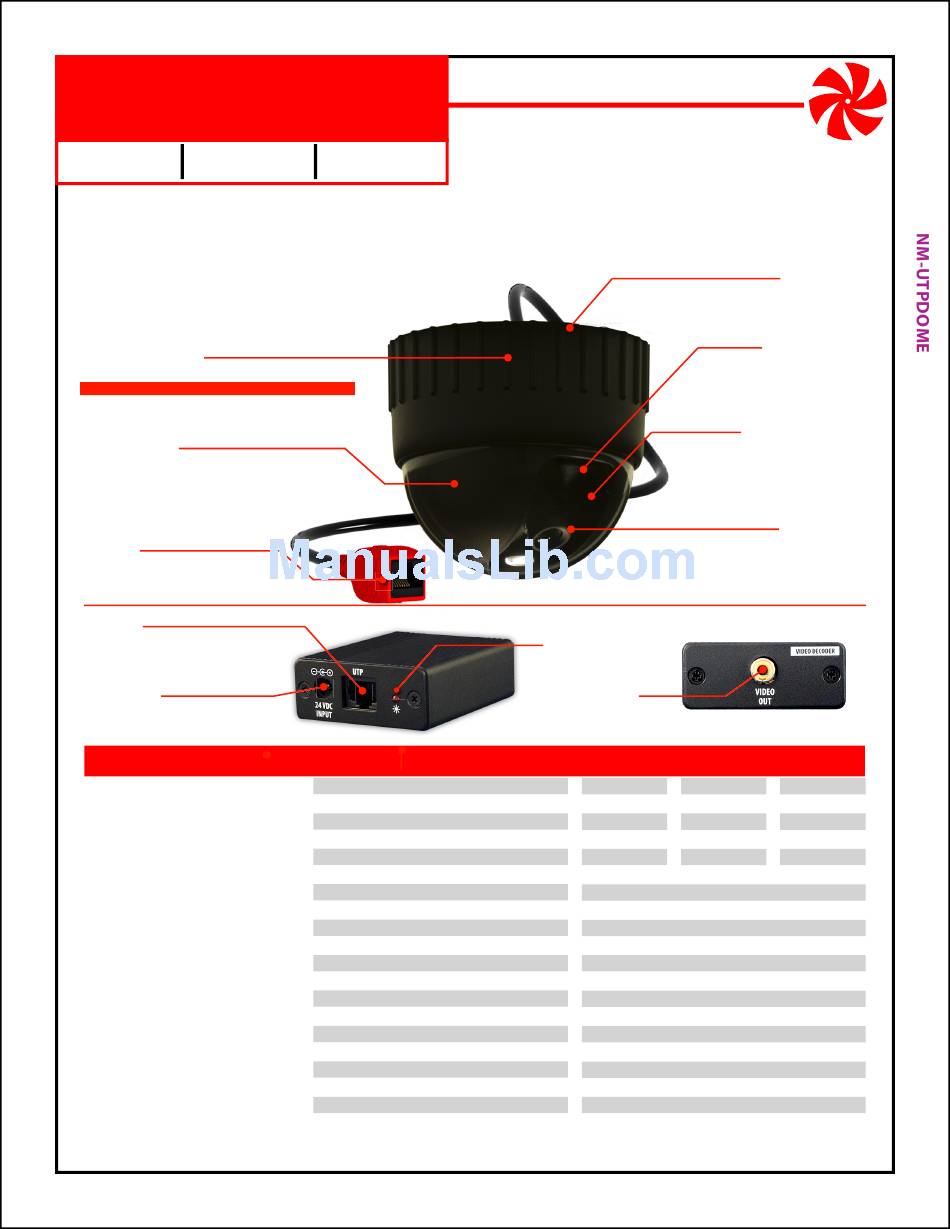

Camera Assembly
Available in black:
B/W camera Color camera Day/Night Color Housing
NM-UTPDOME-BB NM-UTPDOME-CB
NM-UTPDOME-HB
Camera Dome
Rotate to match camera field of
view. Twist and remove to access
Camera Bracket.
UTP Jack
Female RJ-45 connector transmits
both power and video across CAT5
and other UTP cable types.
UTP Jack
Connects to camera UTP
Jack via straight-through
wired UTP cable (T-568A).
Power Input
Connects to 24V DC wall
transformer (included)
and AC outlet.
FEATURES
UTP Video Encoder built into camera
Includes UTP Video Decoder module
One Wire Video™ Installation
Uses one inexpensive UTP cable
Supports up to 1000 ft of UTP cable
Supports industry standard wiring schemes
Excellent image quality
Compact and lightweight
Internally routed cables
Mounts to standard electrical fixtures
Mounts directly to walls and ceilings
Works in low light conditions
Adjustable camera angles
Tamper resistant wiring
Includes power supply
1 year limited warranty
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
UTP Security Camera
Day/Night
Color
Black
UTP Video Decoder
SPECIFICATIONS
Camera Lens:
Image Sensor:
Resolution:
Field of View:
Min Illumination:
Infrared Sensitivity:
Camera/Decoder Cable Connector:
Camera/Decoder Cable Type:
Camera/Decoder Cable Distance Range:
Camera/Decoder Video Signal:
UTP Decoder Video Output:
UTP Decoder Video Output Connector:
UTP Decoder Power Input:
UTP Decoder Power Connector:
UTP Decoder Size:
UTP Decoder Weight:
Assembly Size:
Mounting Holes:
Assembly Weight:
Indoor Dome
Adjust for desired field of view.
Built into camera - exchanges
power and video with Decoder for
One Wire Video™ on UTP cable.
Factory set - rotate in either
Red LED
Indicates Power.
RCA Video Out
Connects to viewing
device such as monitor,
DVR, TV, or modulator.
B/W Color
3.6mm 3.7mm
1/3" CCD 1/4" CCD
350 lines 470 lines
72˚ Horizontal 54˚ Horizontal
0.7 Lux F2.0 0.5 Lux F1.2
Yes No
Female RJ-45 jack
UTP: CAT5 or better
Up to 1000'
Proprietary
Composite
Female RCA
24V DC, 200mA
5.5mm OD, 2.1mm ID, center positive
3.2" long, 2.2" wide, 0.9" thick
3 oz.
3.5" dia. x 3.25" high
2.25" centers
6.5 oz.
Camera Base
Install on wall or ceiling.
Camera Bracket
UTP Video Encoder
Camera Lens
direction to adjust focus.
Day/Night Color
3.6mm
1/3" CCD
470 lines
72˚ Horizontal
0.3 Lux F1.2
Yes
(subject to change without notice)
MAN-UTPDOME REV0703A
