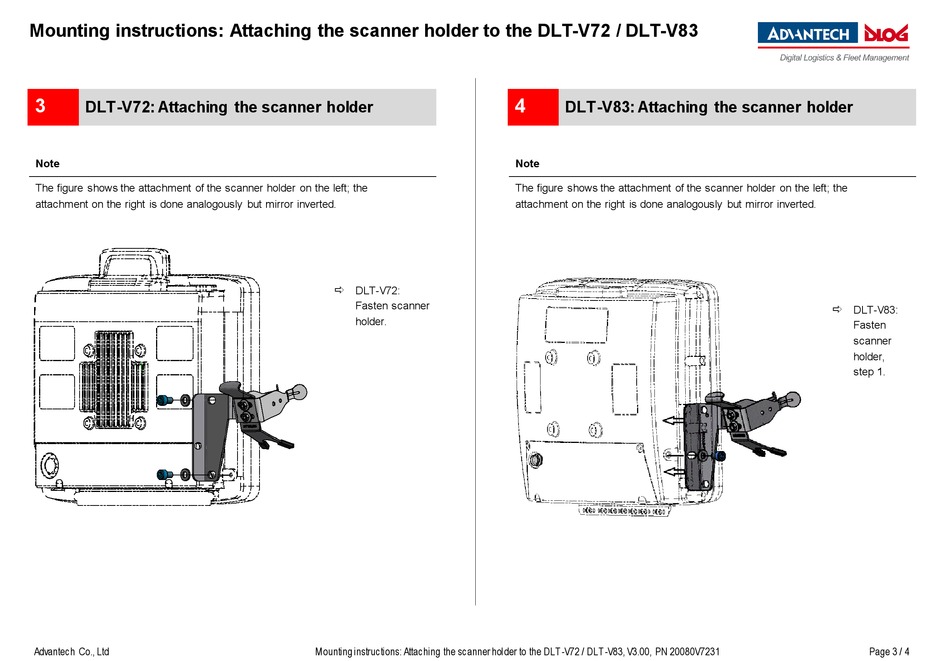

Mounting instructions: Attaching the scanner holder to the DLT-V72 / DLT-V83
3
DLT-V72: Attaching the scanner holder
Note
The figure shows the attachment of the scanner holder on the left; the
attachment on the right is done analogously but mirror inverted.
Advantech Co., Ltd
DLT-V72:
Fasten scanner
holder.
Mounting instructions: Attaching the scanner holder to the DLT-V72 / DLT-V83, V3.00, PN 20080V7231
4
DLT-V83: Attaching the scanner holder
Note
The figure shows the attachment of the scanner holder on the left; the
attachment on the right is done analogously but mirror inverted.
DLT-V83:
Fasten
scanner
holder,
step 1.
Page 3 / 4
