- Page 1 BATTERY CHARGER Model CVTR2PV - SIMULTANEOUS FOR V-LOCK LITHIUM-ION BATTERIES ONLY Model CGTR2PV - SIMULTANEOUS FOR 3-STUD LITHIUM-ION BATTERIES ONLY OPERATING INSTRUCTIONS Revision 1.0 www.BLUESHAPE.net Printed in Malta 2022...
-
Page 3: Explanation Of Symbols Used In This Manual
Explanation of symbols used in this manual This symbol indicates the presence of an electrical shock hazard. It is intended to avert users not to open the product as there are no user serviceable parts inside. Any form of DANGER servicing should be done by qualified service ELECTRIC SHOCK personnel only. - Page 4 Please read these instructions concerning your safety BLUESHAPE lithium-ion battery chargers have been designed to provide a superior performance by managing relatively high currents during their operation in order to reduce charging time. As may be expected, the chargers become warm during operation and it is therefore very important to keep their ventilation openings unobstructed.
- Page 5 Do not operate the charger with a damaged cord or plug, which could cause shorting and electric shock. If damaged, have the charger repaired or replaced by an authorized BLUESHAPE repair service centre. Do not operate the charger if it has received a sharp blow, been dropped, or has otherwise been damaged in any way.
- Page 6 Chargers and/or batteries may become hot during charging. This is normal. The charger is also equipped with over-temperature protection. Please consult your BLUESHAPE dealer if you notice that either a charger or a battery become excessively hot during the charging operation.
- Page 7 To avoid electric shock, do not open the apparatus and always refer any servicing to qualified personnel. Package Contents CVTR2PV/CGTR2PV simultaneous dual position charger. AC power cord [according to region] CORDAGE: H05VV-F, 3 x 1.0mm, UNSHIELDED CEE COLOR CODE, TEMP. RATING 60°C RATING: 250V 10A...

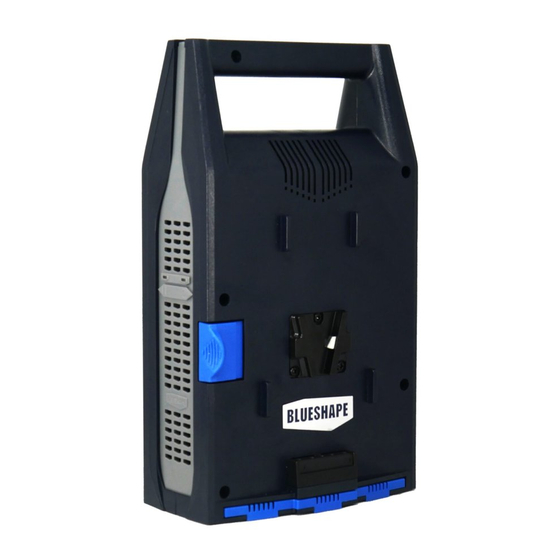

- Page 8 CVTR2PV Graphic Description Mains socket with fuse Battery release button V-Lock Battery #2 installation bay Carrying Handle LEDs (Bat #1, Bat #2) V-Lock Battery #1 installation bay Extending foot support on both sides (shown retracted in image) Foot extender button...
- Page 9 CGTR2PV Graphic Description Mains socket with fuse 3-Stud Battery #2 installation bay Battery release button Carrying Handle LEDs (Bat #1, Bat #2) 3-Stud Battery #1 installation bay Extending foot support on both sides (shown extended in image) Foot extender button...
- Page 10 The BLUESHAPE CVTR2PV and CGTR2PV lithium-ion battery chargers have been specifically designed for safe and reliable charging of BLUESHAPE batteries and other 3rd party batteries. The chargers deliver 3 Amps on both channels simultaneously.. For the users’ convenience, the external dimensions have been kept as compact as possible for better portability.
- Page 11 CVTR2PV/CGTR2PV Charging Performance Approximate charging time per channel (minutes) State of Charge (SOC)% Battery Model Battery Capacity 100% BV095HDmini 6.6Ah - 95Wh BV140HDmini 9.9Ah - 143Wh BV090 6.6Ah - 95Wh BV100HDplus 6.7Ah - 100Wh BV150 10Ah - 150Wh BV190HDplus 13.4Ah - 193Wh BV290HDplus 20.2Ah - 290Wh...
- Page 12 3A. The batteries to be charged are V-Lock batteries, which can be BLUESHAPE (preferred) or any other 3rd party compatible batteries which can be of any capacity ranging from: 40Wh or even less [having 4 cells in series – total 4 cells]...
- Page 13 3A. The batteries to be charged are 3-Stud mount, which can be BLUESHAPE (preferred) or any other 3rd party compatible batteries which can be of any capacity ranging from: 40Wh or even less [having 4 cells in series – total 4 cells]...
-
Page 14: How To Proceed
Observe the battery LED. In addition, the charge status may be read in 20% steps through the BLUESHAPE battery LED array or continuously, using the Wi-Fi features of the battery (see the battery operating manual for the activation of the internal Wi-Fi transmitter). -
Page 15: Product Information
Fuse spare Power Consumption 120W max Operating temperature C – 45 range Storage temperature C - 65 C (-4 F - 149 range 260 x 150 x 85mm (10.24”x 5.91” x Dimensions 3.35”) CVTR2PV: 1050g (2.32lbs) Weight CGTR2PV: 950g (2.1lbs) -
Page 16: Notes Concerning Charger Usage With Blueshape Battery Packs
However if for some reason, the pack temperature reaches 60°C, then the charge activity is suspended. The pack resumes normal charging once the temperature drops back to below 50°C. This is a safety feature incorporated in all BLUESHAPE battery packs... - Page 17 Disposal When the equipment has reached the end of its life please dispose of the components in accordance with your local waste directive in your country. Electronic equipment should be recycled wherever possible and not disposed of with regular waste.
-
Page 18: Warranty
Warranty BLUESHAPE Chargers are warranted to be free from defects in materials, workmanship and functionality for a period of 18 months commencing from the date of purchase. This warranty shall not apply to any products or parts of, that have been subjected to misuse, negligence or damage. - Page 19 This page has been left intentionally blank.
- Page 20 BLUESHAPE ® is a registered trademark of: NEW CELL TOP Srl VIA LIGURIA 4-6, 42124 REGGIO EMILIA, ITALY TEL. +39 0522 518556 FAX. +39 0522 277084 WEB: www.BLUESHAPE.net EMAIL: info@BLUESHAPE.net...
