Summary of Contents for SIMPLIHOME WyndenHall Brooklyn+Max AXCRWSH46-LGB

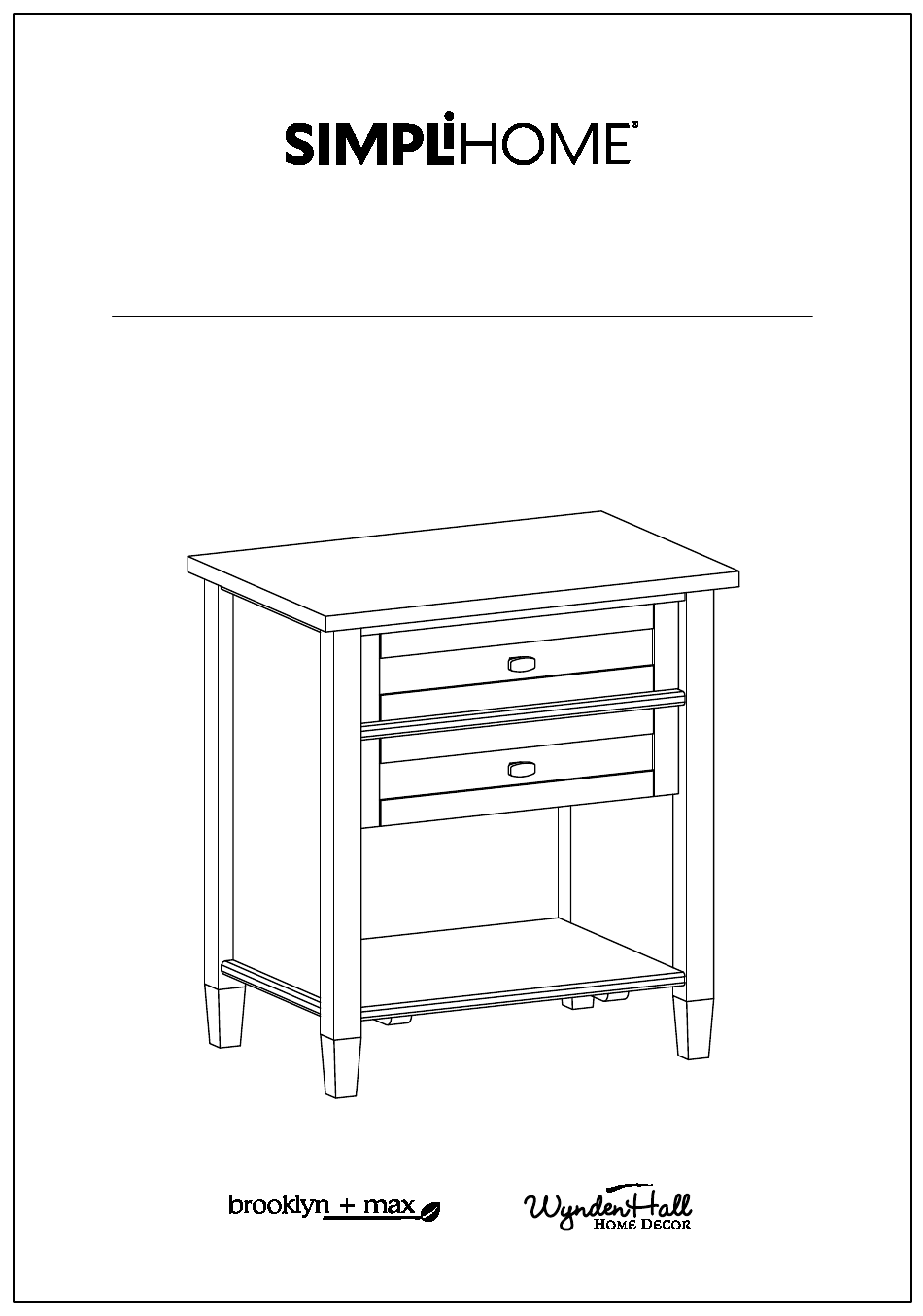

- Page 1 Warm Shaker / Norfolk / Lexington Bedside Table Model # AXCRWSH46-LGB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
-
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCRWSH46-LGB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 MIDDLE FRAME BOTTOM SHELF TOP BACK PANEL QTY 1 QTY 1 QTY 1 BOTTOM BACK PANEL DRAWER FRONT LEFT DRAWER SIDE QTY 1 QTY 2 QTY 2 RIGHT DRAWER SIDE...
- Page 8 Pre-Assembly Information Model # AXCRWSH46-LGB Hardware Description WOOD DOWEL CAM LOCK PIN ALLEN KEY SCREW CAM LOCK Ø8 X 30mm M6 X 30mm QTY 8 SETS QTY 8 QTY 24 HANDLE PHILLIPS SCREW ROUND HEAD ALLEN KEY M4 X 25 mm M4 X 15mm QTY 1 QTY 2 SETS...
- Page 9 Components - Key Diagram Model # AXCRWSH46-LGB...
- Page 10 Assembly Model # AXCRWSH46-LGB Step 1 1. Attach four Cam Lock Pins 2 to pre-drilled holes at back of Drawer Front G . 2. Use Phillips screwdriver to secure Cam Lock Pins. Step 2 1. Align Cam Lock Pins with drilled holes and attach Drawer Sides HL , HR . 2.
- Page 11 Assembly Model # AXCRWSH46-LGB Step 3 1. Slide Drawer Bottom J firmly into slots on Drawer Sides HL , HR and Drawer Front G . Step 4 1. Align Drawer Back I with Drawer Bottom J and press firmly into slot . 2.
- Page 12 Assembly Model # AXCRWSH46-LGB Step 6 1. Insert four Wood Dowels 3 into drilled holes on Middle Frame D . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed. Step 7 1.
- Page 13 Assembly Model # AXCRWSH46-LGB Step 8 1. Attach Bottom Shelf C to Left Side BL using three Allen Key Screws 1 . 2. Use Allen Key 4 to tighten Screws. Do not over-tighten. Step 9 1. Attach Middle Frame D to Left Side BL using two Allen Key Screws 1 . 2.
- Page 14 Assembly Model # AXCRWSH46-LGB Step 10 1. Attach Middle Frame D and Bottom Shelf C to Sides BR using five Allen Key Screws 1 ( two Screws / Middle Frame, three Screws / Bottom Shelf). 3. Use Allen Key 4 to tighten Screws. Do not over-tighten.
- Page 15 Assembly Model # AXCRWSH46-LGB Step 11 1. Attach Top A to Sides BL , BR using six Allen Key Screws 1 ( three Screws / each Side ). 3. Use Allen Key 4 to tighten Screws. Do not over-tighten.
- Page 16 Assembly Model # AXCRWSH46-LGB Step 12 NOTE: The screwdriver is not included in the hardware pack. Note: 1. Attach Back Panels E , F to back frame of storage using sixteen Phillips Screws Round Head 5 through drilled holes. 2. Use Phillips Screwdriver to tighten Screws.
- Page 17 Assembly Model # AXCRWSH46-LGB Step 13 1. Insert assembled Drawers into glides on assembled Bedside.
