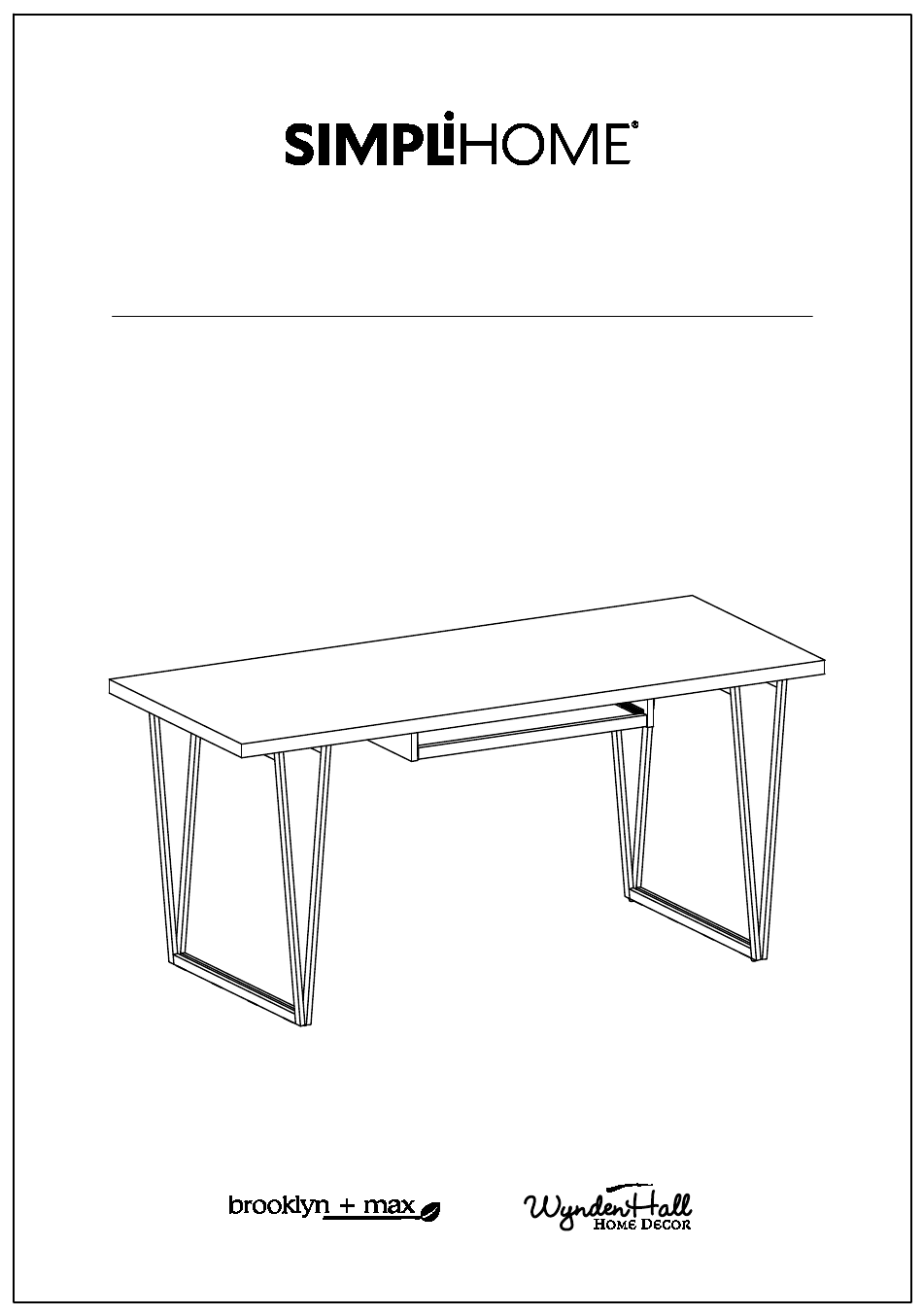

- Page 1 Ryder / Travis / Alto Desk Model # AXCRDY-14...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
-
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. - Page 7 Pre-Assembly Information Model # AXCRDY-14 Part Description QTY 1 BACK PANEL SUPPORT BAR QTY 2 QTY 1 QTY 4 KEYBOARD TRAY LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1...
-
Page 8: Lock Washer
Pre-Assembly Information Model # AXCRDY-14 Hardware Description ALLEN KEY BOLT LOCK WASHER ALLEN KEY BOLT M8 x 20 mm Ø12 / Ø8 x 1.5 mm Ø19 / Ø8 x 1 mm QTY 16 QTY 16 QTY 16 LOCK WASHER ALLEN KEY BOLT ALLEN KEY BOLT Ø10 / Ø6 x 1.5 mm Ø19 / Ø6 x 1 mm... - Page 9 Components - Key Diagram Model # AXCRDY-14...
- Page 10 Assembly Model # AXCRDY-14 Step 1 IMPORTANT Open Leg B wide enough to insert Support Bars C . 1. Attach two Support Bars C to Leg B using four Allen Key Bolts 4 , four Lock Washers 5 and four Washers 6 (two Bolts , two Lock Washers and two Washers on each Support Bar).
- Page 11 Assembly Model # AXCRDY-14 Step 2 1. Insert two Dowels 10 into drilled holes on each Divider EL , ER . 2. Use rubber mallet to tap Dowels 10 into bottom of holes securely. 1/2 length of Dowels should be exposed. Step 3 1.
- Page 12 Assembly Model # AXCRDY-14 Step 4...
- Page 13 Assembly Model # AXCRDY-14 Step 5 1. Attach Legs B to Top A . 2. Use sixteen Allen Key Bolts 1 , sixteen Lock Washers 2 and sixteen Washers 3 to secure part A and B (eight Bolts, eight Lock Washers and eight Washers on each Leg).
- Page 14 Assembly Model # AXCRDY-14 Step 6 1. Insert Keyboard Tray F into glides on assembled desk.
- Page 15 Assembly Model # AXCRDY-14 Step 7 Note: Levelers on bottom of legs can be adjusted if floor is uneven.
