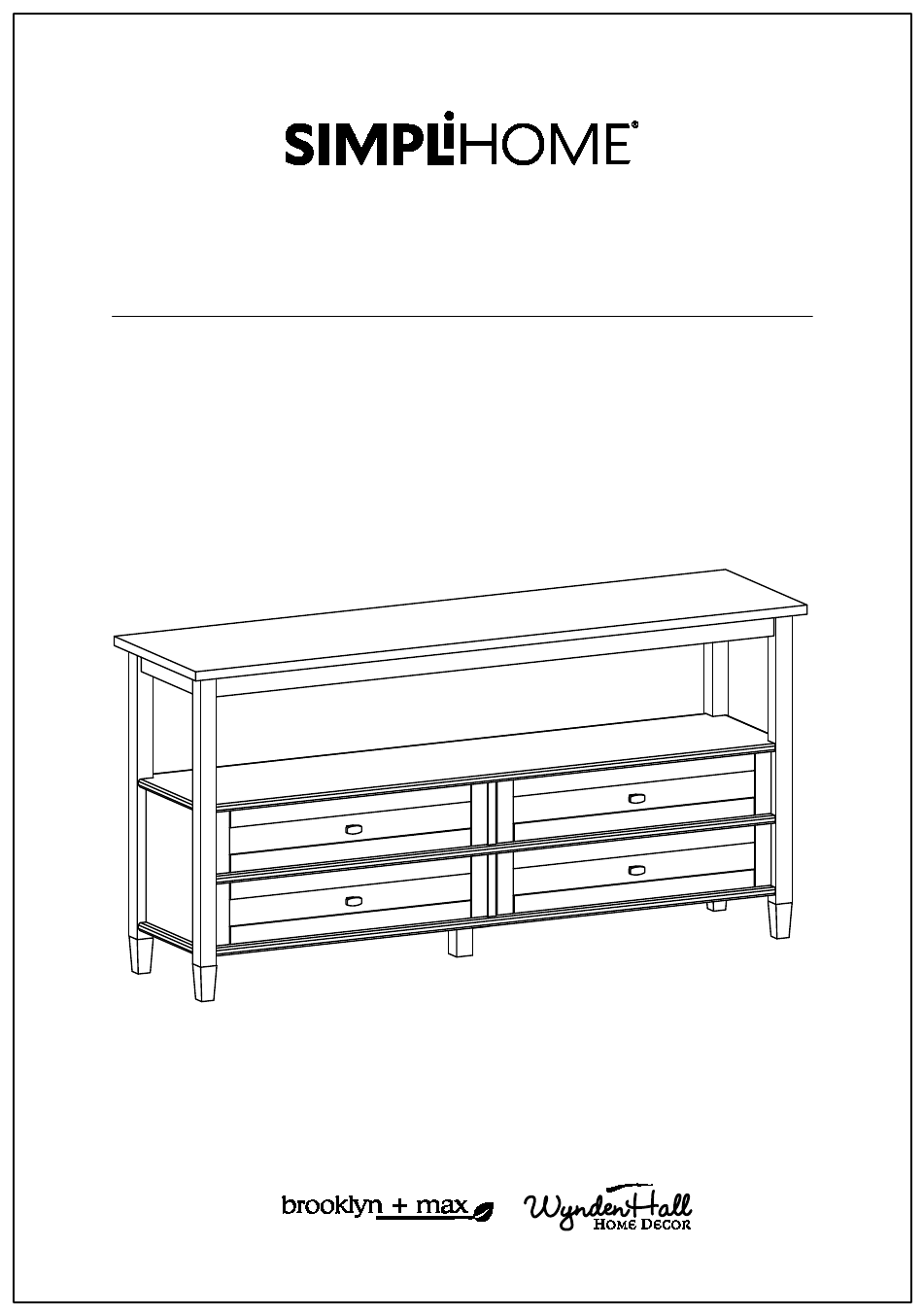

- Page 1 Warm Shaker / Norfolk / Lexington Wide Console Sofa Table Model # AXCRWSH07-LGB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCRWSH07-LGB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 DIVIDER TOP SHELF MIDDLE FRAME QTY 1 QTY 1 QTY 1 BOTTOM FRAME BACK PANEL BOTTOM SUPPORT LEG QTY 1 QTY 1 QTY 1 DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE...
- Page 8 Pre-Assembly Information Model # AXCRWSH07-LGB Hardware Description CAM LOCK PIN WOOD DOWEL ALLEN KEY SCREW CAM LOCK Ø8 X 30mm M6 X 30mm QTY 39 QTY 24 SETS QTY 14 HANDLE PHILLIPS SCREW ALLEN KEY M4 X 25 mm M4 X 30mm QTY 1 QTY 4 SETS QTY 4...
- Page 9 Components - Key Diagram Model # AXCRWSH07-LGB...
- Page 10 Assembly Model # AXCRWSH07-LGB Step 1 1. Attach five Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front I . 2. Attach one Cam Lock Pin 2 into pre-drilled holes on Drawer Back K . 3. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
- Page 11 Assembly Model # AXCRWSH07-LGB Step 2 1. Align Cam Lock Pins with guide holes and attach parts JL , JR , M to Drawer Front I . 2. Insert two Cam Locks 2 into guide holes on each part JL , JR . 3.
- Page 12 Assembly Model # AXCRWSH07-LGB Step 4 3. Attach Drawer Back using two Allen Key Screws 1 through guide holes on each Drawer Side JL , JR . Use Allen Key 4 to tighten Screws. Do not over-tighten 4. Insert one Cam Lock 2 into guide holes on Bottom Drawer Support M . 5.
- Page 13 Assembly Model # AXCRWSH07-LGB Step 6 1. Insert Dowels 3 into guide holes on Divider C and Middle Frame E . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed. Step 7 1.
- Page 14 Assembly Model # AXCRWSH07-LGB Step 8 1. Insert Dowels 3 into guide holes on each Side BL , BR . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed. Step 9 1.
- Page 15 Assembly Model # AXCRWSH07-LGB Step 10 1. Align Dowels with guide holes on Left Side BL and attach Middle Frame E to Left Side BL . 2. Use two Allen Key Screws 1 to attach Divider C through guide holes. 3.
- Page 16 Assembly Model # AXCRWSH07-LGB Step 11 1. Insert Dowels 3 into guide holes on Back Panel G . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed. Step 12 1.
- Page 17 Assembly Model # AXCRWSH07-LGB Step 13 1. Align Dowels with guide holes on Right Side BR and attach Right Side BR to parts D , E , G . 4. Use Phillip Screws 7 to attach Middle Frame with Back Panel G through guide holes.
- Page 18 Assembly Model # AXCRWSH07-LGB Step 14 1. Align Dowels with guide holes on Bottom Frame F and attach Bottom Frame F to parts BL , BR , C . 2. Use nine Allen Key Screws 1 to attach Bottom Frame F through guide holes. 3.
- Page 19 Assembly Model # AXCRWSH07-LGB Step 15 1. Align Dowels with guide holes on Top A and attach Top A to Sides BL , BR . 4. Use Phillip Screws 6 to attach Bottom Support Leg C with Bottom Frame F through guide holes.
- Page 20 Assembly Model # AXCRWSH07-LGB Step 16 1. Insert assembled drawers into glides on assembled table.
