BIXOLON XM7-30 Installation Manual

KN09-00075A (Ver.1.0)
◈ Information
This installation guide contains quick information required for the product installation.
Refer to the User's Manual in the website that comes with the product for detailed
installation instructions. The website contains the following information.
1. Manual: User's, Bluetooth & Wi-Fi Connection, SLCS Programming, Code Pages,
Software
2. Driver: Windows, OPOS, Linux & Mac CUPS
3. SDK: Android, Linux, Windows, iOS
4. Utility: Net Configuration Tool, Unified Label Utility-II
5. Label Design: Label Artist-II
We at BIXOLON Co., Ltd. maintain ongoing efforts to enhance and upgrade the functions
and quality of all our products. The following, product specifications and/or user manual
content may be changed without prior notice.
Please refer to the BIXOLON website for the addresses and phone numbers of the
company's headquarters and branch offices.
◈ Content Confirmation
XM7-30 Smart Battery
Belt Strap Installation Guide
◈ Product Part Names
Media Cover
Peeler
Menu Move Button
Power Button
LCD
Charge
Indication LED
Cover Open Button
Menu Select Button
Shoulder Strap Ring
Media Feed Button
Outer Terminal Cover
◈ Installation and Charging
Battery
Installation
The battery is sold uncharged.
Media
Installation
Battery
③
Charging
②
①
•
The printer may incur serious damage if the AC/DC adapter provided by BIXOLON is
not used. BIXOLON is not legally liable for any such damages.
•
The voltage and electrical current specifications of the printer and battery charger
must match.)
AC/DC Adapter Power Cord
Guide Disks
(for 12mm (0.47 inch)
inner diameter)
Hole for mounting belt strap
Battery
Interface Cap
Power Port
Cable Port
1) Insert the battery to the bottom
of the printer, and ensure that you
align the battery hook correctly.
2) Push the battery into the slot
until you hear it snap in place.
1) Press the Open button to open the
media cover.
2) Fully open the media cover and
insert the media as shown.
(Remove the empty media core)
3) Check the orientation of the media
when inserting it into the printer.
4) Pull out the media as shown and
close the media cover.
1) Turn off the printer power.
2) Connect the power cord ② to the
AC/DC adapter ① and then
connect AC power.
3) Open the external interface cap in
the direction of ③.
4) Connect the AC/DC adapter to the
power port.

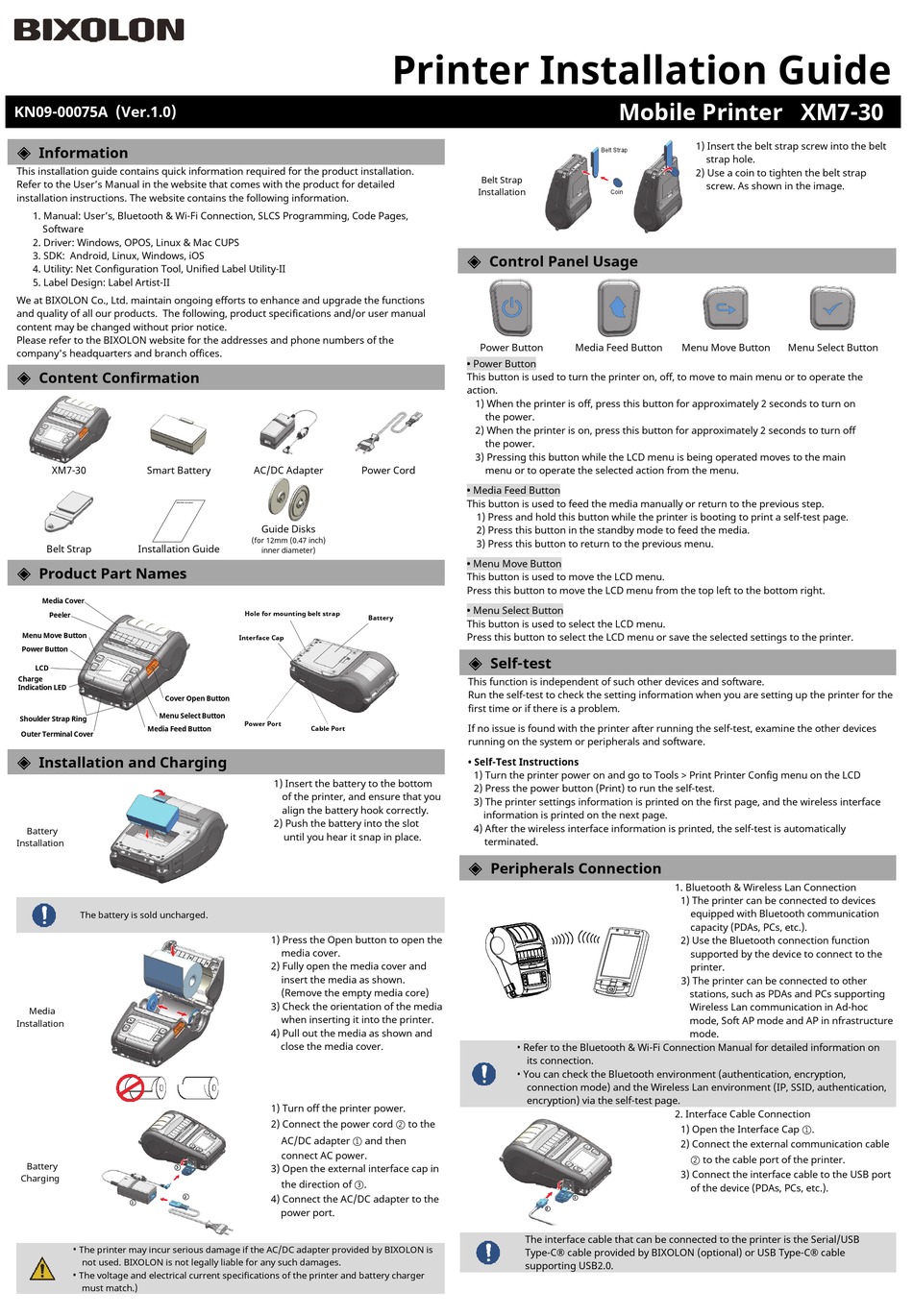

Printer Installation Guide
Belt Strap
Installation
◈ Control Panel Usage
Power Button
• Power Button
This button is used to turn the printer on, off, to move to main menu or to operate the
action.
1) When the printer is off, press this button for approximately 2 seconds to turn on
the power.
2) When the printer is on, press this button for approximately 2 seconds to turn off
the power.
3) Pressing this button while the LCD menu is being operated moves to the main
menu or to operate the selected action from the menu.
• Media Feed Button
This button is used to feed the media manually or return to the previous step.
1) Press and hold this button while the printer is booting to print a self-test page.
2) Press this button in the standby mode to feed the media.
3) Press this button to return to the previous menu.
• Menu Move Button
This button is used to move the LCD menu.
Press this button to move the LCD menu from the top left to the bottom right.
• Menu Select Button
This button is used to select the LCD menu.
Press this button to select the LCD menu or save the selected settings to the printer.
◈ Self-test
This function is independent of such other devices and software.
Run the self-test to check the setting information when you are setting up the printer for the
first time or if there is a problem.
If no issue is found with the printer after running the self-test, examine the other devices
running on the system or peripherals and software.
• Self-Test Instructions
1) Turn the printer power on and go to Tools > Print Printer Config menu on the LCD
2) Press the power button (Print) to run the self-test.
3) The printer settings information is printed on the first page, and the wireless interface
information is printed on the next page.
4) After the wireless interface information is printed, the self-test is automatically
terminated.
◈ Peripherals Connection
• Refer to the Bluetooth & Wi-Fi Connection Manual for detailed information on
its connection.
• You can check the Bluetooth environment (authentication, encryption,
connection mode) and the Wireless Lan environment (IP, SSID, authentication,
encryption) via the self-test page.
②
The interface cable that can be connected to the printer is the Serial/USB
Type-C® cable provided by BIXOLON (optional) or USB Type-C® cable
supporting USB2.0.

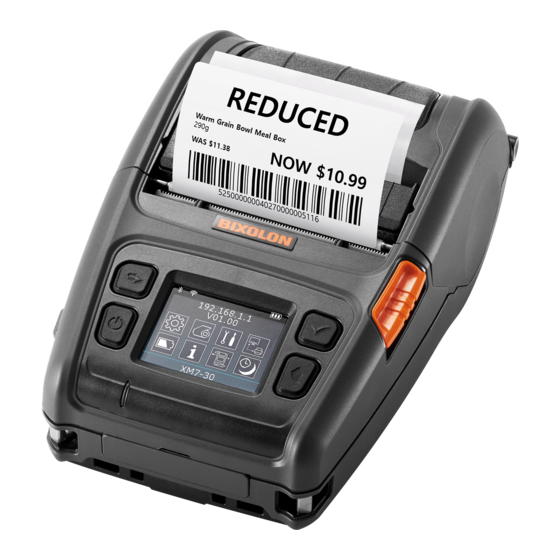

Mobile Printer XM7-30
1) Insert the belt strap screw into the belt
Belt Strap
strap hole.
2) Use a coin to tighten the belt strap
screw. As shown in the image.
Coin
Media Feed Button Menu Move Button
1. Bluetooth & Wireless Lan Connection
1) The printer can be connected to devices
equipped with Bluetooth communication
capacity (PDAs, PCs, etc.).
2) Use the Bluetooth connection function
supported by the device to connect to the
printer.
3) The printer can be connected to other
stations, such as PDAs and PCs supporting
Wireless Lan communication in Ad-hoc
mode, Soft AP mode and AP in nfrastructure
mode.
2. Interface Cable Connection
1) Open the Interface Cap ①.
2) Connect the external communication cable
② to the cable port of the printer.
3) Connect the interface cable to the USB port
of the device (PDAs, PCs, etc.).
①
Menu Select Button
