User's Manual
XM7-20
MOBILE PRINTER
Ver. 1.00
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XM7-20 and is the answer not in the manual?

Questions and answers

Related Manuals for BIXOLON XM7-20

Summary of Contents for BIXOLON XM7-20

  • Page 1 User’s Manual XM7-20 MOBILE PRINTER Ver. 1.00 http://www.bixolon.com...

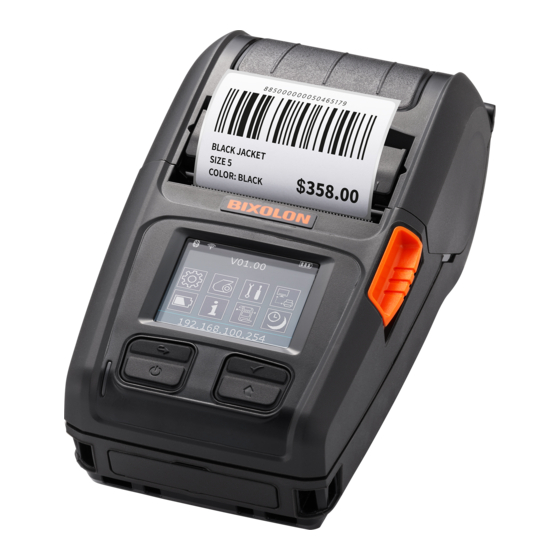

  • Page 2 XM7-20 Introduction The XM7-20 is a 2-inch thermal mobile label printer which simultaneously connects over WIFI, Bluetooth, or Dual(WLAN & Bluetooth) Radio. Ideal for smart mobility labelling due to its compact, lightweight design with an easy-to-open peeler and LCD. ※ The main features of the printer are as follows 1.
  • Page 3 XM7-20 Safety Information Warnings must be heeded carefully in order to prevent serious Warning physical harm. Cautions must be heeded in order to prevent minor injuries, Caution equipment damage, or data loss. Symbol Information DC (Direct current) Warning, Caution Ethernet Ver.

  • Page 4: Table Of Contents

    XM7-20 Table of Contents 1. Content Confirmation ...................... 10 2. Product Part Names ......................10 3. Installation & Usage ......................12 3-1 Battery Installation ......................12 3-2 Battery Charging ......................12 3-2-1 Using AC/DC Adapter ..................12 3-2-2 Using USB TYPE-C (Power Delivery) ............... 12 3-2-3 Using Single Battery Charger (Optional) ............
  • Page 5 XM7-20 Manual Information This user’s manual contains basic information for product usage as well as for emergency measures that may be required. ※ The following separate manuals provide more detailed content on various technological issues and areas. 1. Software Manual This manual provides information for development.
  • Page 6 XM7-20 Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products into one multi-outlet.
  • Page 7 XM7-20 CAUTION Violating following instructions can cause slight wound or damage the appliance. If you observe a strange smoke, odor or noise from Keep the desiccant out of children’s reach. the printer, unplug it before taking following measures. • If not, they may eat it.
  • Page 8 XM7-20 Battery Safety Warning Please be sure to read this guide prior to use. Warning 1. If the battery is not charged after the charging time, stop charging and contact the seller. 2. Store and use the battery where it will not come into contact with liquid (water, salt water, etc.).
  • Page 9 XM7-20 12. Do not disassemble or modify the battery. The battery contains safety and protection devices to prevent danger. It may reduce battery performance and life due to damage, or there may be a risk of overheating, rupturing or igniting.

  • Page 10: Content Confirmation

    XM7-20 1. Content Confirmation The following items should all be contained in the printer package. Contact the dealer from which the purchase was made if any item is damaged and/or missing. Basic items ※ XM7-20 Battery Pack AC/DC Adapter Power Cord...

  • Page 11: Product Part Names

    XM7-20 2. Product Part Names • Front • Rear Hole for mounting belt strap Battery Pack Interface Cap Power Port Cable Port Ver. 1.00 - 11 -...

  • Page 12: Installation & Usage

    XM7-20 3. Installation & Usage 3-1 Battery Installation 1) Insert the battery in the bottom of the printer, and ensure that you align the battery hook properly. 2) Push the battery into the slot until you hear it snap in place.
  • Page 13 Error Replace or Reinstall Battery The printer may incur serious damage if the AC/DC adapter provided by BIXOLON is not used. BIXOLON is not legally liable for any such damages. (The voltage and electrical current specifications of the printer and battery charger must match.)

  • Page 14: Using Single Battery Charger (Optional)

    BIXOLON when using a single battery charger. Caution BIXOLON is not legally liable for any such damages. - You must use the battery charger provided by BIXOLON to use the singles battery charger. (AC/DC adapter is not available) Ver. 1.00...

  • Page 15: Using Quad Battery Charger (Optional)

    XM7-20 3-2-4 Using Quad Battery Charger (Optional) 3-2-4-1 Connecting the cables 1) Connect the power cord to the Adapter, and connect the Adapter to the power port of the quad battery charger. 2) Plug the power cord into a AC power.
  • Page 16 XM7-20 3-2-4-2 Charging Battery 1) Insert the battery into the Quad charger as shown in the figure on the left. 2) Gently slide the battery until it reaches the bottom of the charger. 3) Charging starts as soon as the battery is completely inserted.

  • Page 17: Media Installation

    XM7-20 3-3 Media Installation 1) Press the Open button to open the media cover. 2) After keeping the media holder wide as shown, in the figure insert the media as shown. (Remove the empty media core.) 3) Check the orientation of the media when inserting it into the printer.
  • Page 18 XM7-20 NOTE The specification of the media inner diameter of the standard media disks are 19 mm (0.75 inch). If you are using media with a smaller inner diameter, remove the media disks as shown below and replace it with the supplied 12 mm (0.47 inch) media disks.

  • Page 19: Using Peeler

    XM7-20 3-4 Using Peeler 1) Insert the media after open the peeler as shown. 2) Pull out the media after close the peeler as shown. NOTE Enable the peeler setting when using the peeler. Refer to “Sensor setting” of “5. LCD Menu” to enable peeler setting.

  • Page 20: Using Belt Strap

    XM7-20 3-5 Using Belt Strap 1) Insert the belt strap screw into the belt strap hole. Belt Strap Coin 2) Use a coin to tighten the belt strap screw as shown in the image. 3) Unfasten the belt strap Velcro.

  • Page 21: Using Shoulder Strap (Optional)

    XM7-20 3-6 Using Shoulder Strap (Optional) Please, insert hooks of the strap into each slot as shown in the picture. Ver. 1.00 - 21 -...

  • Page 22: Using Fan-Fold Media

    XM7-20 3-7 Using Fan-Fold Media 1) After keeping the media holder wide as shown in the figure, hold the media holder by pushing left and right guide holder as shown in the figure. NOTE Use only when you are using 58 mm (2.28 inch) media.

  • Page 23: Using Control Panel

    XM7-20 3-8 Using Control Panel • Power Button This button is used to turn the printer on, off, to move to main menu or to operate the action. 1) When the printer is off, press this button for approximately 2 seconds to turn on the power.

  • Page 24: Self-Test

    4) After the wireless interface information is printed, the self-test is automatically terminated. • Self-Test Sample BIXOLON XM7-20 CONFIGURATION FIRMWARE VERSION : V01.00 STD 010118 EMULATION : SLCS & BPL-Z & BPL-C PRINT DARKNESS...
  • Page 25 RF INTERFACE STATUS (BT) RF INTERFACE STATUS (WLAN) BLUETOOTH F/W VER : 2.0.4 WLAN F/W VER : 02.02(4002) MAC ADDRESS MAC ADDRESS FRIENDLY NAME : XM7-20 SYSTEM NAME : XM7-20 MODE : CLASSIC NETWORK MODE : SOFT AP AUTH & ENCRYPT : ENABLED FREQUENTY : (PRIORITY)2.4GHZ/5GHZ...

  • Page 26: Lcd Menu

    XM7-20 5. LCD Menu You can check printer status and setting information through LCD. • Top icon Icon Description Bluetooth is enabled but not connected to the host device Bluetooth is enabled and connected to the host device Display signal strength of wireless LAN...
  • Page 27 XM7-20 • Main menu icon Icon Description Check / set the status of whole printer 1) Interface 2) Media 3) Sensor 4) Powersave 5) Language Media settings 1) Print density 2) Position - Tear off position - Print position - Print direction...
  • Page 28 XM7-20 Icon Description Check printer information 1) Version - Printer, WLAN, Bluetooth 2) Bluetooth 3) WLAN 4) Ethernet 5) Battery 6) Troubleshooting Sensor settings 1) Media type - Auto detection / Rear black mark / Gap - Continueous 2) Peeler...

  • Page 29: Bluetooth, Wireless Lan Connection

    XM7-20 6. Peripherals Connection This product can communicate with other devices via Bluetooth, Wireless LAN communication and cable. 6-1 Bluetooth, Wireless LAN Connection 1) The printer can be connected to devices equipped with Bluetooth communication capacity (PDAs, PCs, etc.). 2) Use the Bluetooth connection function supported by the device to connect to the printer.

  • Page 30: Interface Cable Connection

    The interface cable that can be connected to the ② printer is Serial/USB cable provided by BIXOLON(optional) or USB Type-C cable supporting USB2.0. USB Type-C port Power port Serial/USB 14pin port (for the cable provided by BIXOLON(optional)) Ver. 1.00 - 30 -...

  • Page 31: Fixed Interface Cable Connection

    4) Connect the interface cable to the USB port of the device (PDAs, PCs, etc.). ② NOTE The fixed interface cable that can be connected to the printer is Serial/USB cable provided by BIXOLON(optional). ③ Ver. 1.00 - 31 -...

  • Page 32: Printer Cleaning

    Print quality may be degraded or printhead life may be shortened if it is not cleaned periodically. Use only the linerless media that is provided by BIXOLON. Warning Use of unauthorized media voids product warranty.

  • Page 33: Appendix

    XM7-20 8. Appendix 8-1 Specifications Item Description Printing Method Direct Thermal Printing Print Speed Up to 6 ips (152 mm/s) Resolution 203 dpi 10 SLCS Resident Bitmap Fonts One SLCS Resident Scalable Font 16 BPL-Z™ Resident Bitmap Fonts One BPL-Z™ Resident Scalable Font Font 7 BPL-C™...

  • Page 34: Label Types

    XM7-20 8-2 Label Types • The labels used on this product are composed of the following materials; • BIXOLON logo label: PC • Rating Label: PET • Other labels: PET, PC Ver. 1.00 - 34 -...
  • Page 35 BIXOLON Co., Ltd. The information contained herein is designed only for use with this BIXOLON product. BIXOLON is not responsible for any direct or indirect damages, arising from or related to use of this information.
  • Page 36 XM7-20 Notice - EU This wireless device is class A that is considered to be used in an industrial environment. Caution Some semiconductor devices are easily damaged by static electricity. You should turn the printer “OFF”, before you connect or remove the cables on the rear side, in order to guard the printer against the static electricity.
  • Page 37 XM7-20 Revision History Rev. Date Page Description 1.00 04.12.20 Ver. 1.00 - 37 -...
